Wiper/Washer System Component Views

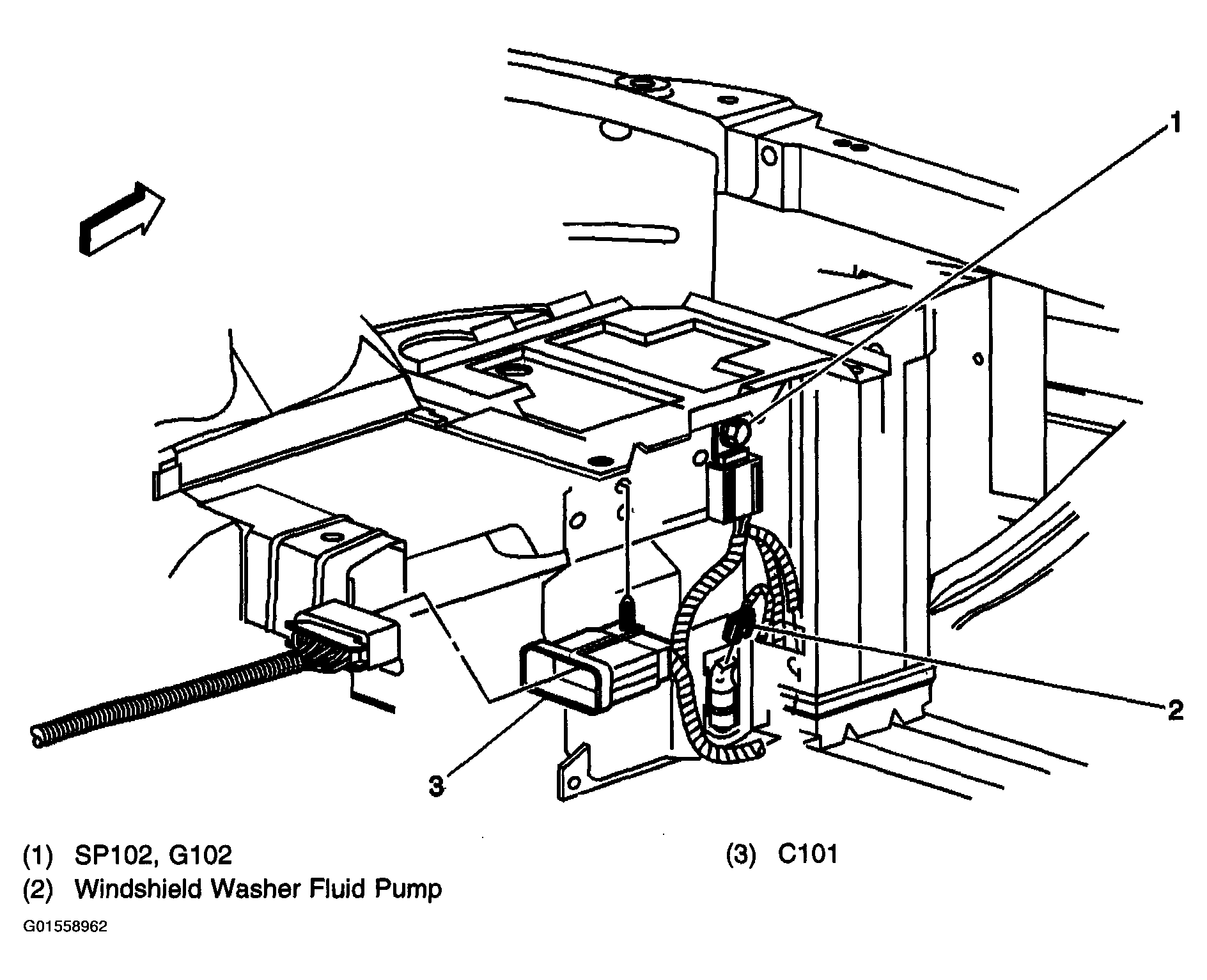

Fig 1: Locating Wiper/Washer System Components (Under Battery Tray)
G01558962Courtesy of GENERAL MOTORS CORP.

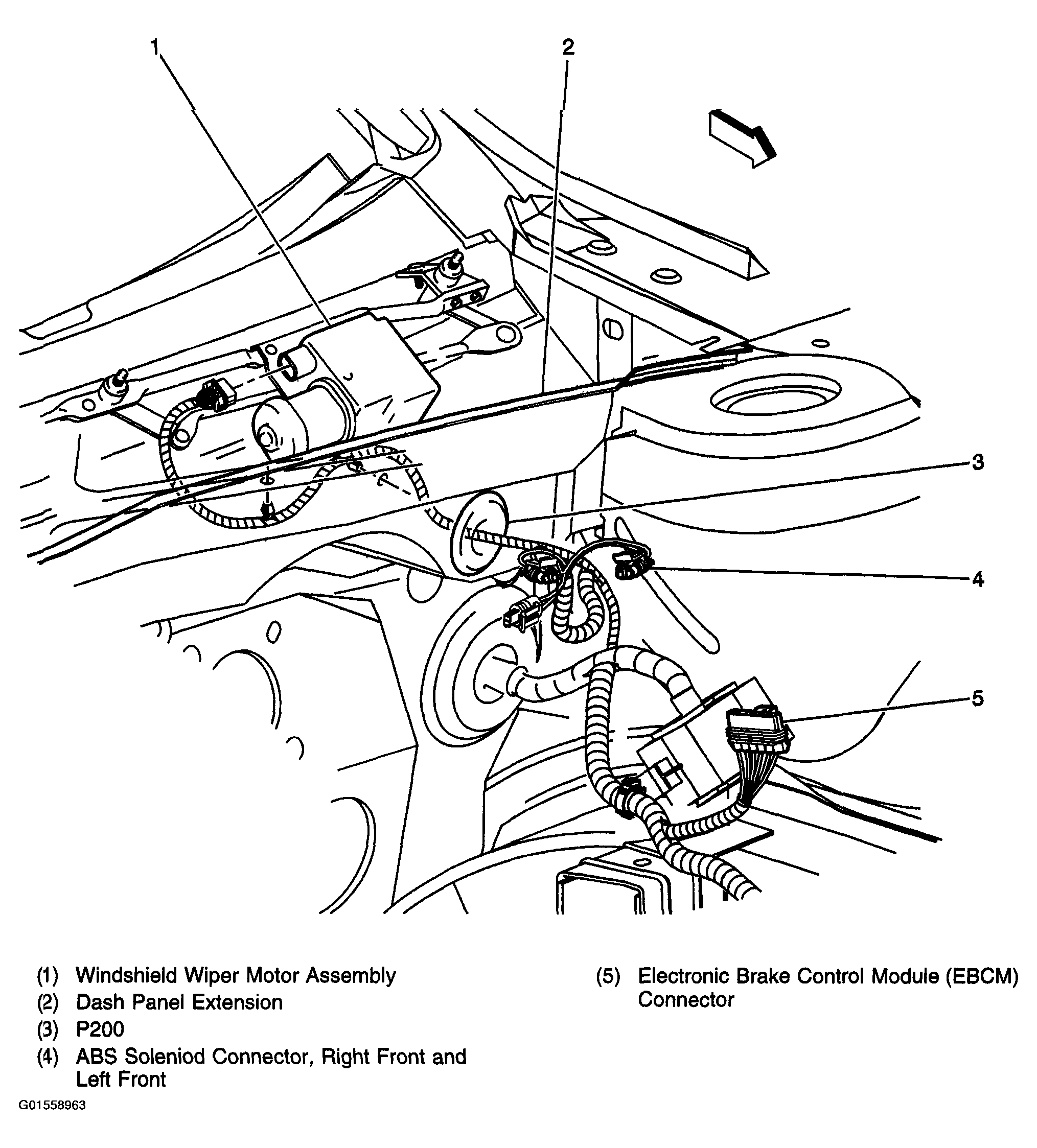

Fig 2: Locating Wiper/Washer System Components (Left Rear Of Engine Compartment)
G01558963Courtesy of GENERAL MOTORS CORP.

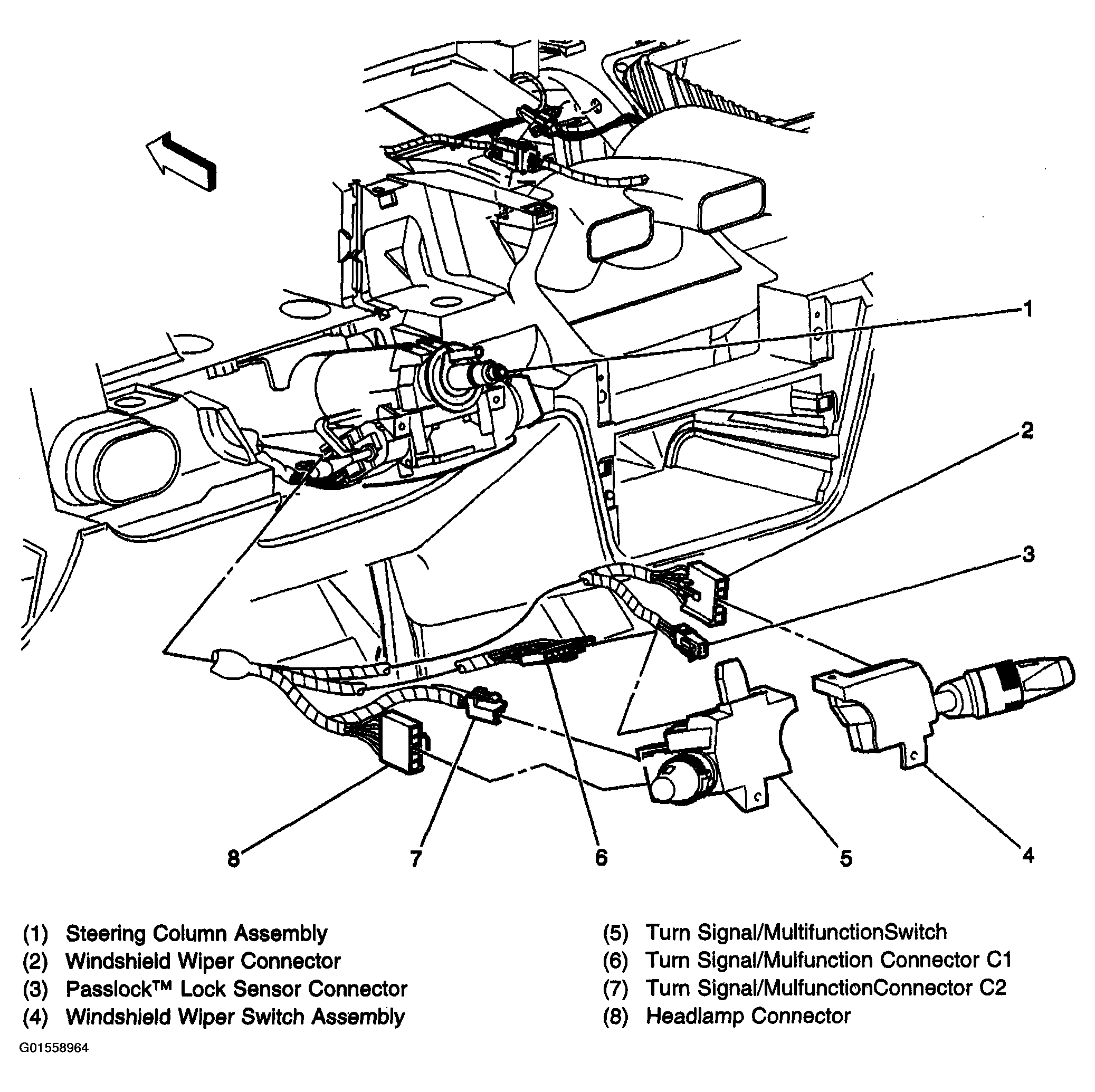

Fig 3: Locating Steering Column Component Connectors
G01558964Courtesy of GENERAL MOTORS CORP.
