Installation Procedure

  1. Position the shifter boot front retainer tab to the front floor console.

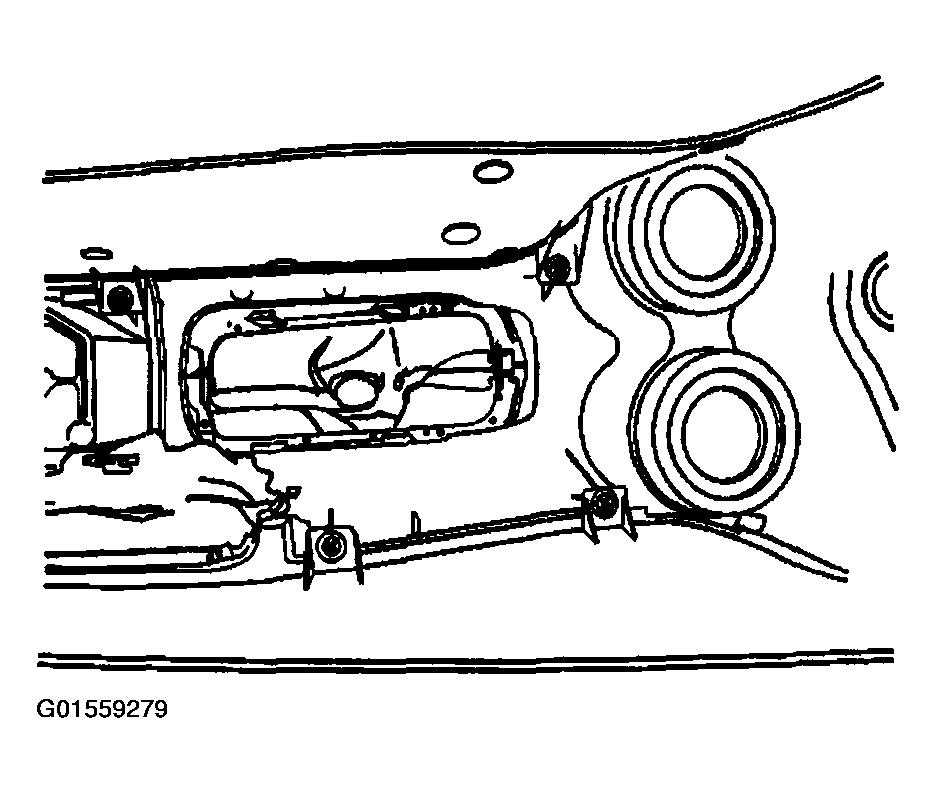

    Fig 1: Positioning Shifter Boot Front Retainer Tab To Front Floor Console
    G01559279Courtesy of GENERAL MOTORS CORP.
  2. Install the shifter boot by pressing into place until fully seated.
  3. Install the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR  .

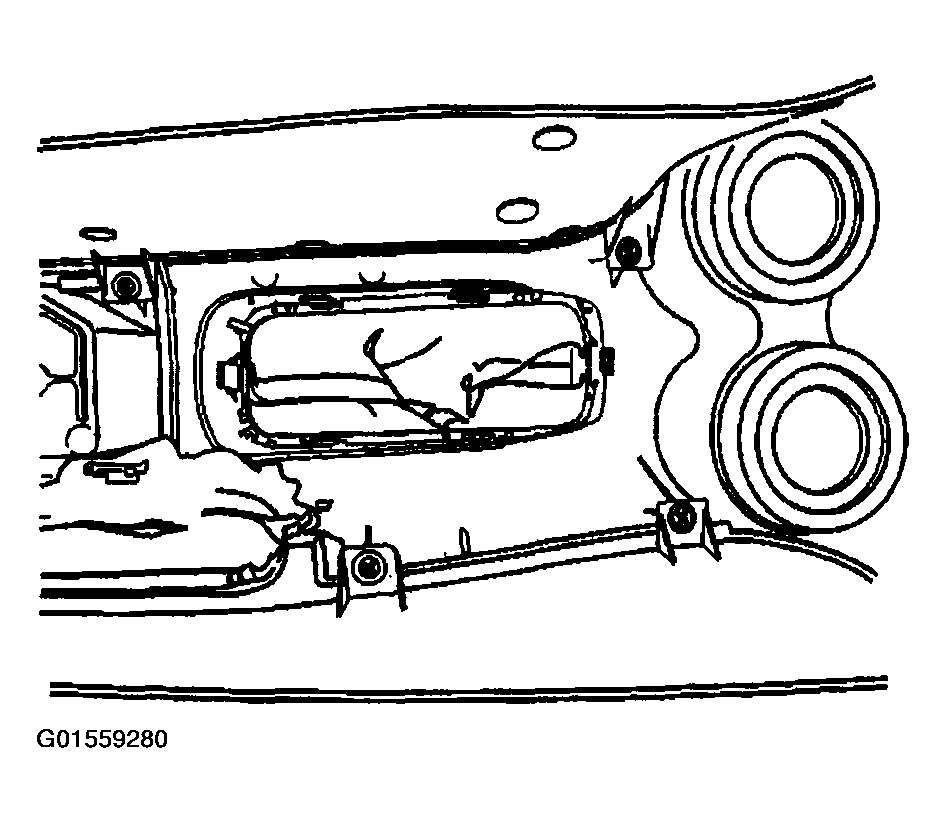

    Fig 2: Installing Shifter Boot
    G01559280Courtesy of GENERAL MOTORS CORP.
