Removal Procedure

  1. Remove the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR  .
  2. Release the front tab retainer using a small flat-bladed tool and pushing back and down on the shifter boot retainer tab.

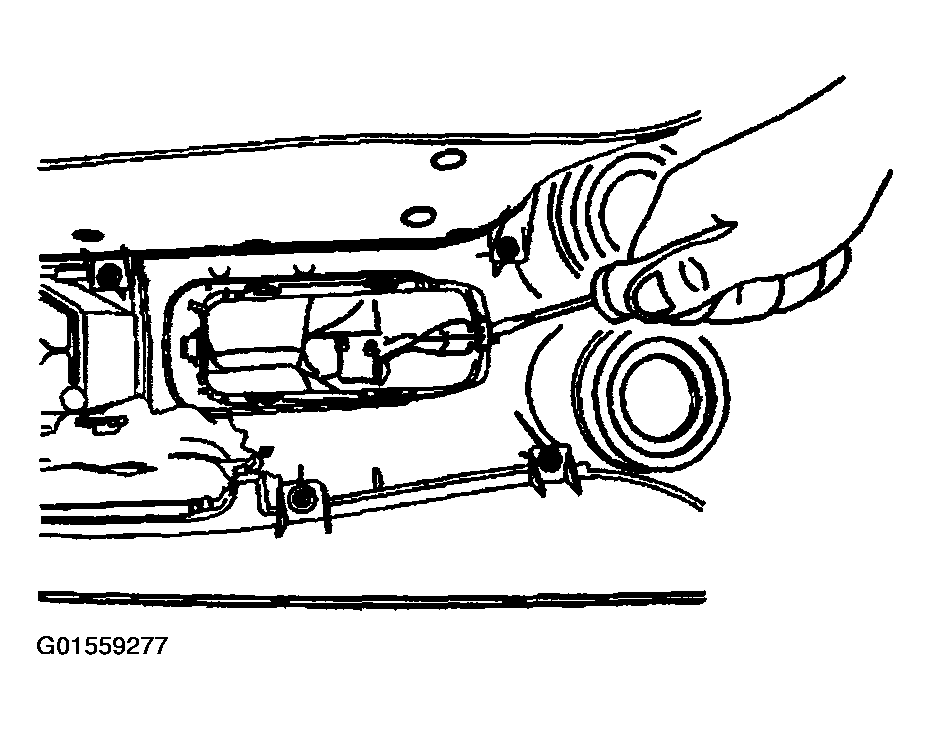

    Fig 1: Removing Front Tab Retainer
    G01559277Courtesy of GENERAL MOTORS CORP.
  3. Remove the console shift boot from the front floor console by releasing the remainder of the retainers and pulling from the front floor console.

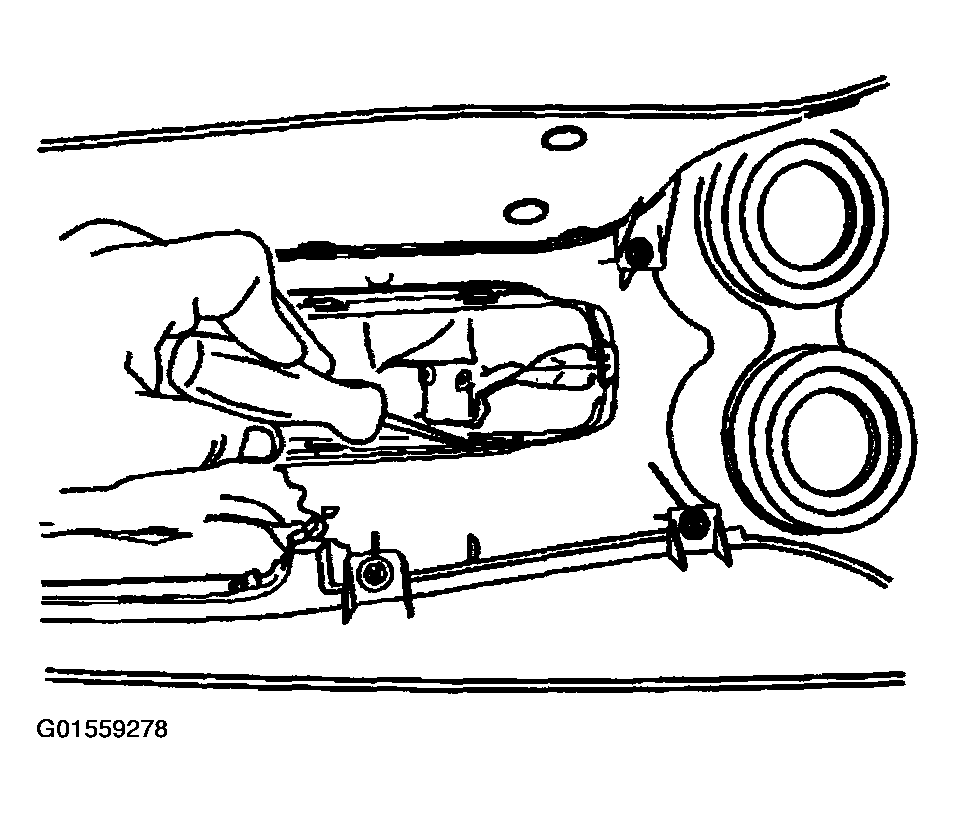

    Fig 2: Removing Console Shift Boot From Front Floor Console
    G01559278Courtesy of GENERAL MOTORS CORP.
