Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

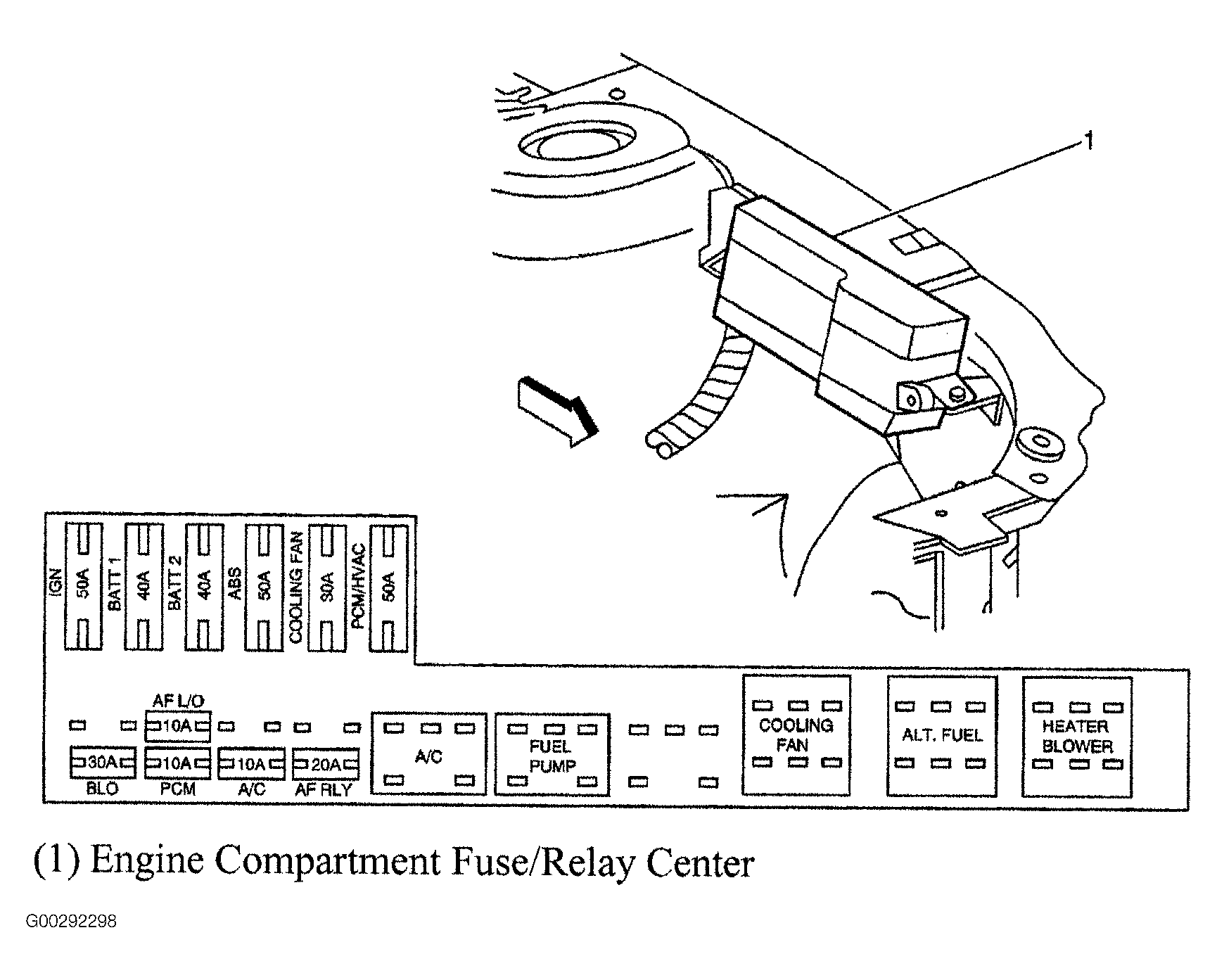

Engine Compartment Fuse/Relay Center (CNG) Left side of engine compartment. See Figure .
I/P Fuse Block Behind lower left side of dash.

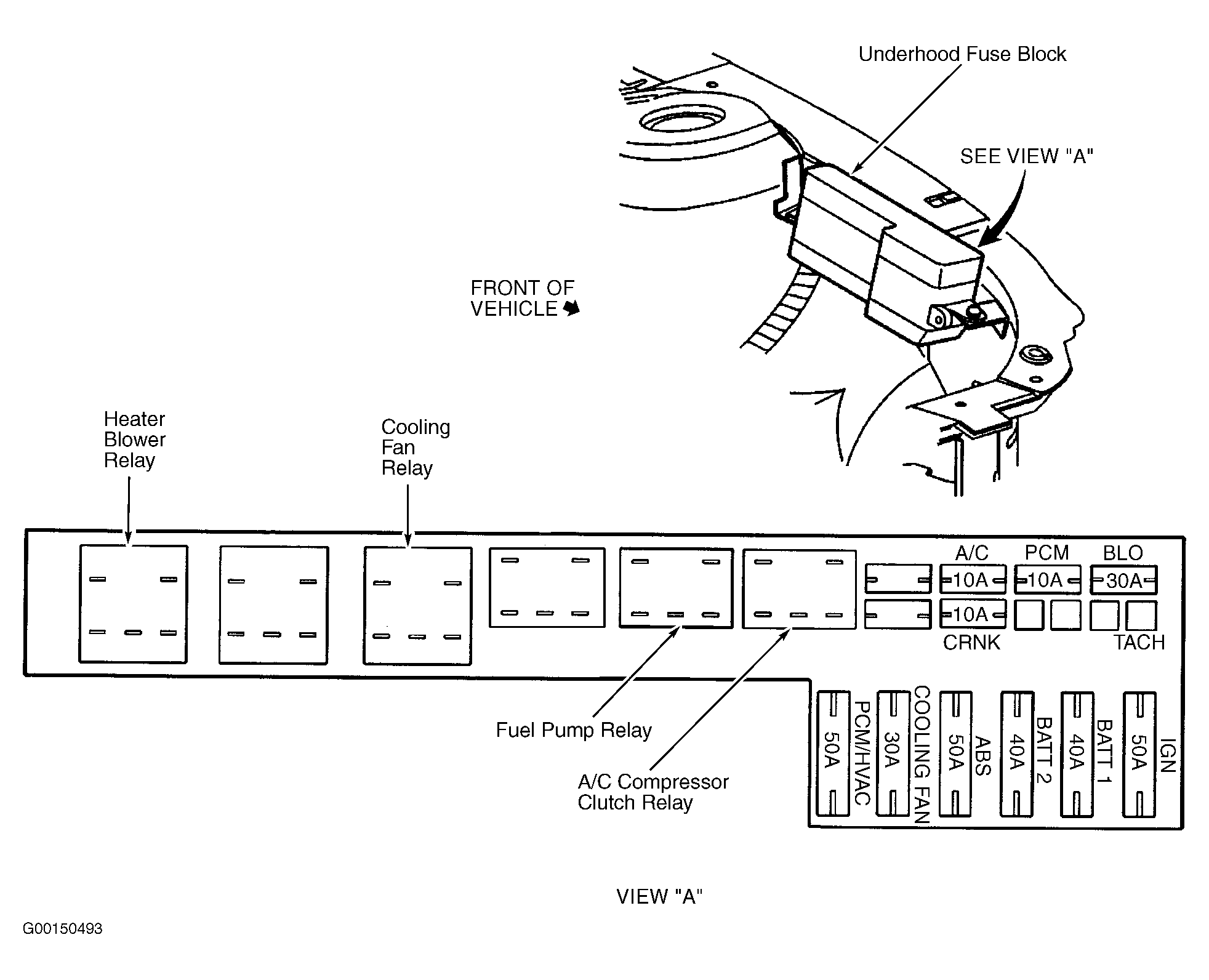

Underhood Fuse Block Left front of engine compartment. See Figure .
