Connector Identification

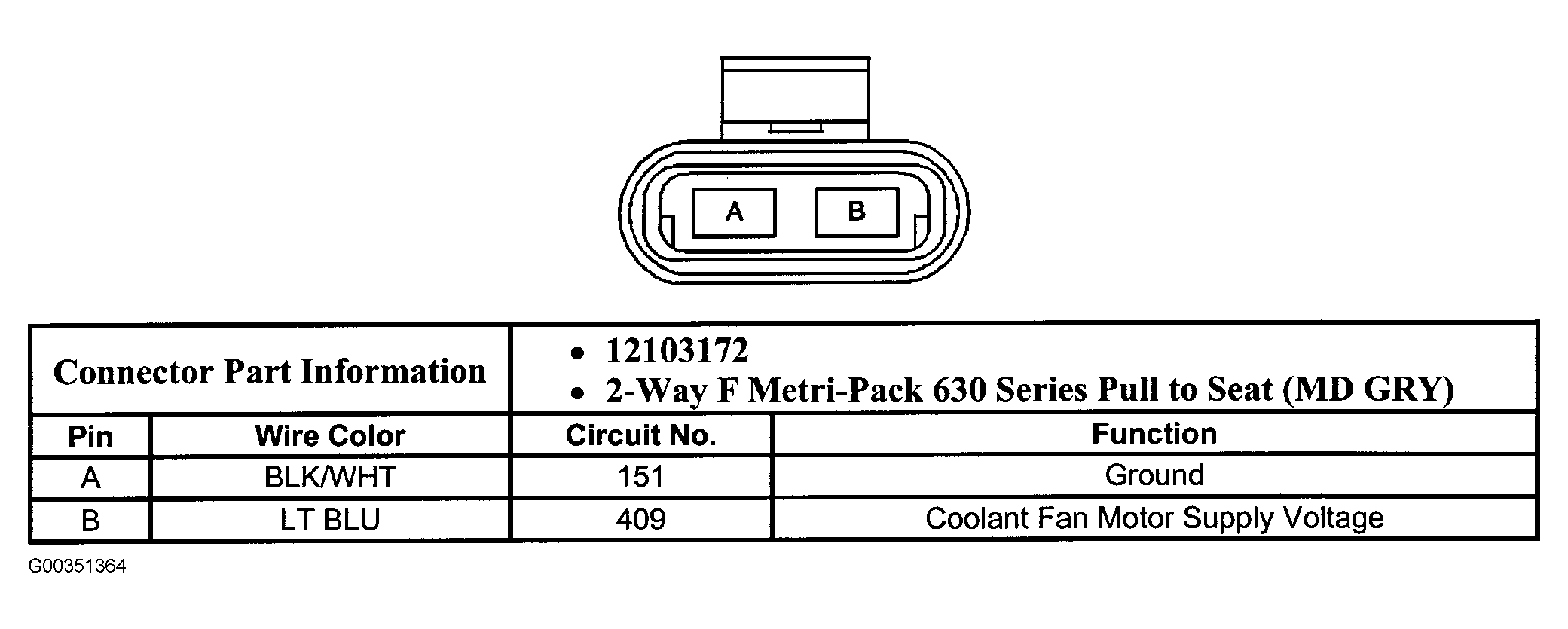

Fig 1: Identifying Cooling Fan Connector Pins
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
