Removal Procedure

  1. Remove the front door sill plate trim panel.
  2. Remove hinge pillar trim panel.
  3. Pull the front door opening weather-strip (2) loose from the door flange (1).
  4. Remove the weather-strip (2) from the vehicle.

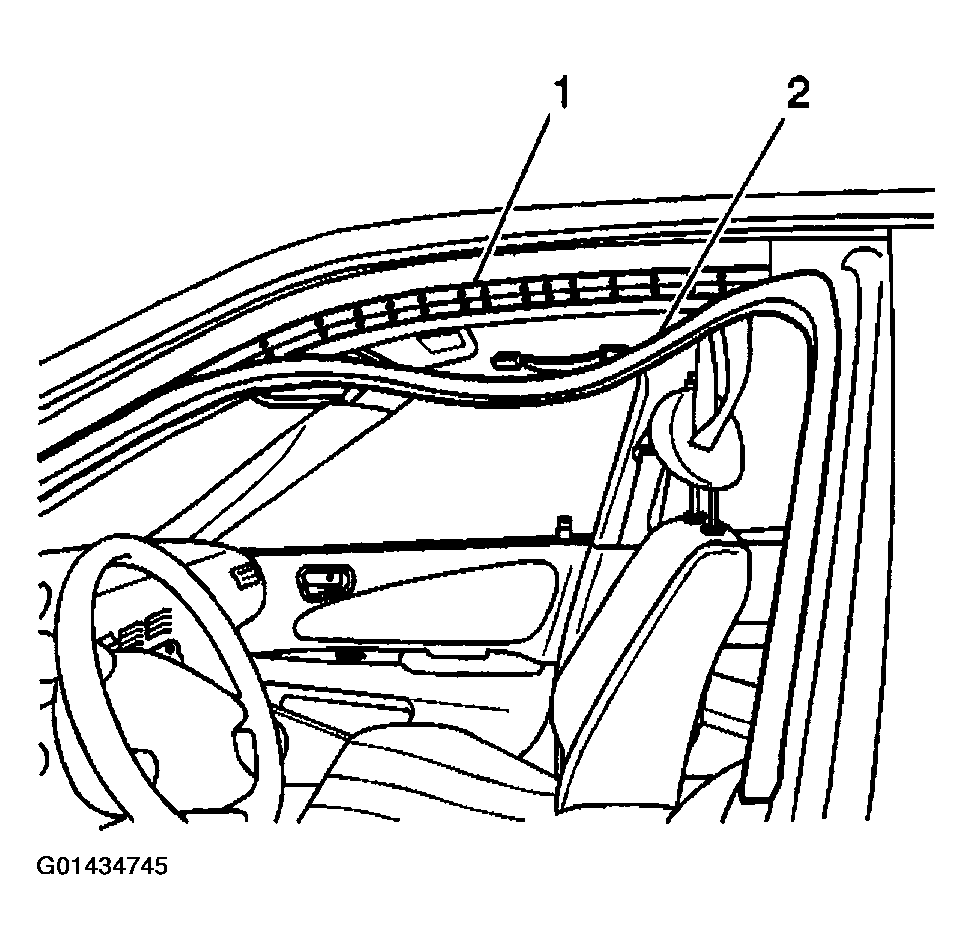

    Fig 1: Pulling Front Door Opening Weather-Strip Loose From Door Flange
    G01434745Courtesy of GENERAL MOTORS CORP.
