Power Seat Systems Component Views

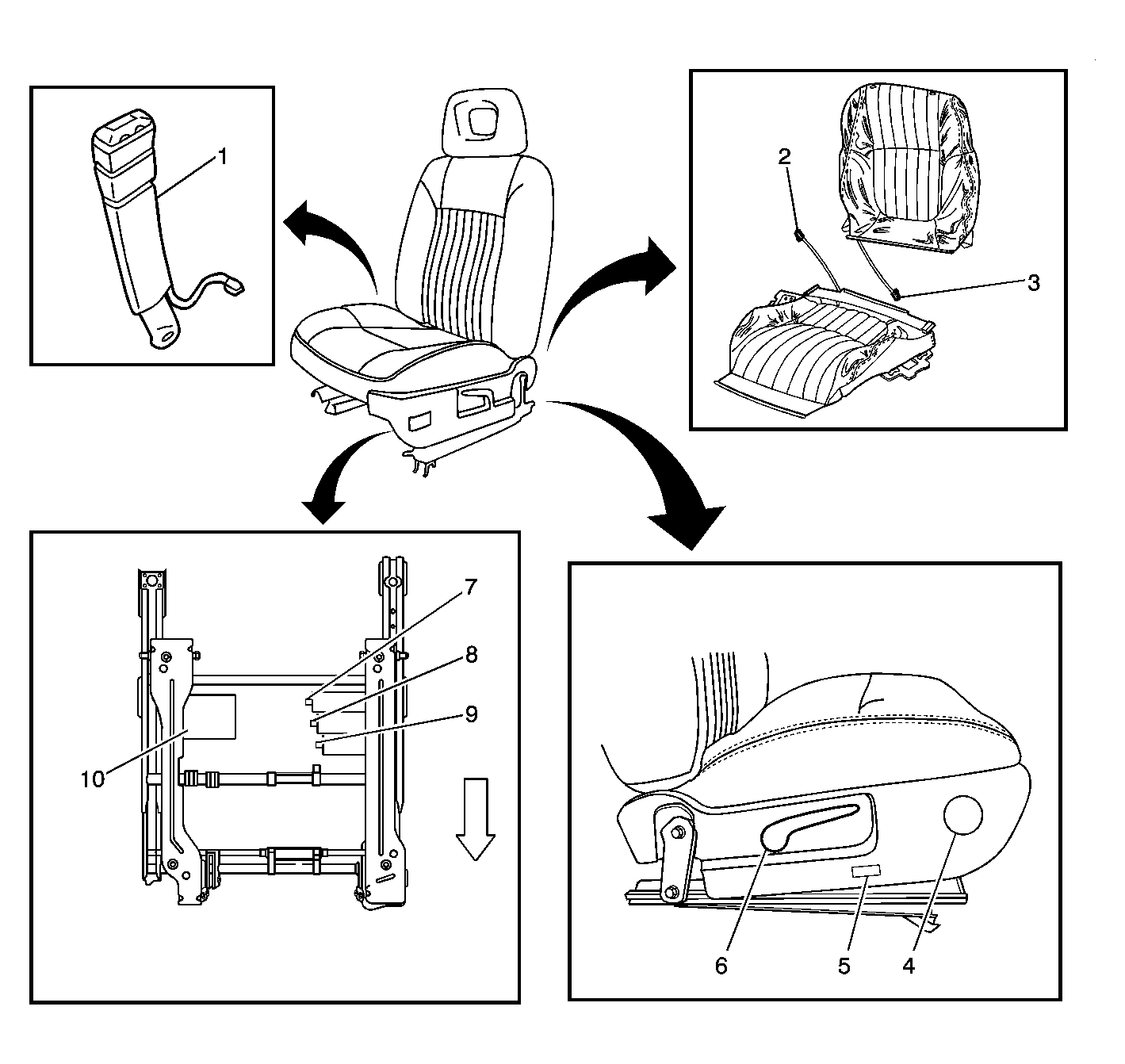

Fig 1: Power Seat Subsystem Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch
2	Heated Seat Element - Cushion Cover Connector (KA1)
3	Heated Seat Back Element Connector (KA1)
4	Manual Lumbar Adjuster
5	Seat Adjuster Switch (AG1/AG2)
6	Manual Seat Recliner Lever
7	Seat Postion Sensor Front Vertical - Driver (A43)
8	Seat Postion Sensor Horizontal - Driver (A43)
9	Seat Postion Sensor Rear Vertical - Driver (A43)
10	Memory Seat and Mirror Module (A43)

Fig 2: Seat Controls Component View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Switch-Front Passenger
