Engine Block Assemble

    Fig 1: View Of Engine Oil Pressure Switch
    GM186993Courtesy of GENERAL MOTORS CORP.
  1. Apply sealer GM P/N 12346004, (Canadian P/N 10953480) or the equivalent to the oil pressure switch threads.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine oil pressure switch.

    Tighten:  Tighten the engine oil pressure switch to 16 N.m (12 lb ft).

    3. Fig 2: Removing Knock Sensor
    GM187001Courtesy of GENERAL MOTORS CORP.
  3. Apply sealer GM P/N 12346004, (Canadian P/N 10953480) or the equivalent to the knock sensor threads.
  4. Install the knock sensor.

    Tighten:  Tighten the knock sensor to 19 N.m (14 lb ft).

    5. Fig 3: Front Oil Gallery Plugs
    GM55266Courtesy of GENERAL MOTORS CORP.
  5. Apply sealer GM P/N 12346004, (Canadian P/N 10953480) or the equivalent to the front oil gallery plug threads (1 and 2).
  6. Install the front oil gallery plug (1).

    Tighten:  Tighten the oil gallery plug (1) to 19 N.m (14 lb ft).

  7. Install the front oil gallery plug (2).

    Tighten:  Tighten the oil gallery plug (2) to 33 N.m (24 lb ft).

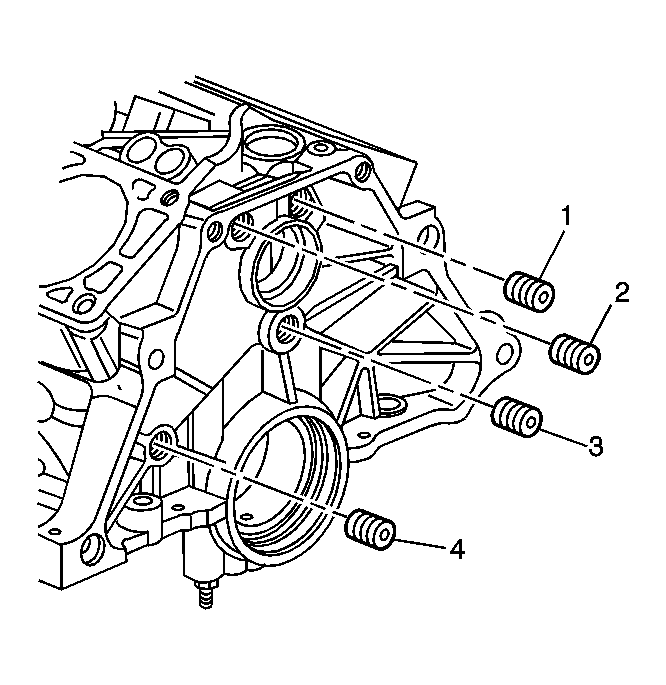

    8. Fig 4: Locating Rear Oil Gallery Plugs
    GM623047Courtesy of GENERAL MOTORS CORP.
  8. Apply sealer GM P/N 12346004, (Canadian P/N 10953480) or the equivalent to the rear oil gallery plug threads (1 and 4).
  9. Install the rear oil gallery plugs (1 and 4).

    Tighten:  Tighten the oil gallery plugs (1 and 4) to 19 N.m (14 lb ft).

  10. Install the rear oil gallery plugs (2 and 3).

    Tighten:  Tighten the oil gallery plugs (2 and 3) to 33 N.m (24 lb ft).

  11. Apply sealer GM P/N United States 12346004, GM P/N Canada 10953480 or the equivalent to the engine block plugs.
  12. Install the remaining engine block plugs.

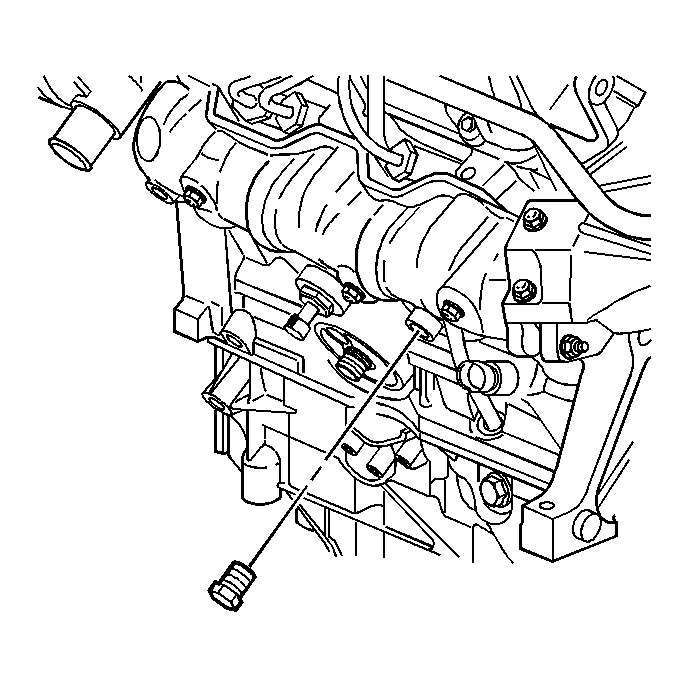

    13. Fig 5: Locating Left Coolant Drain Plug
    GM187087Courtesy of GENERAL MOTORS CORP.
  13. Apply sealant GM P/N 12346004, (Canadian P/N 10953480) or the equivalent to the coolant drain plug threads.
  14. Install the left coolant drain plug.

    Tighten:  Tighten the coolant drain plug to 19 N.m (14 lb ft).

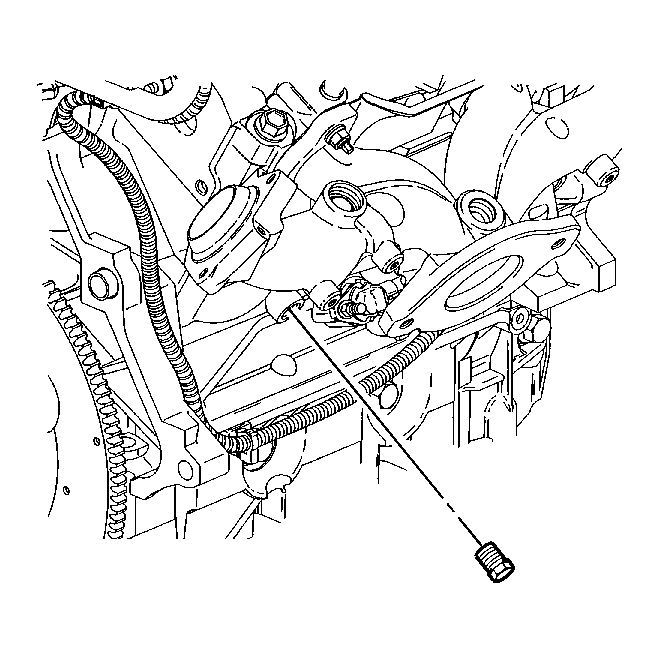

    15. Fig 6: Locating Right Coolant Drain Plug
    GM187088Courtesy of GENERAL MOTORS CORP.
  15. Apply sealant GM P/N 12346004, (Canadian P/N 10953480) or the equivalent to the coolant drain plug threads.
  16. Install the right coolant drain plug.

    Tighten:  Tighten the coolant drain plug to 19 N.m (14 lb ft).
