Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

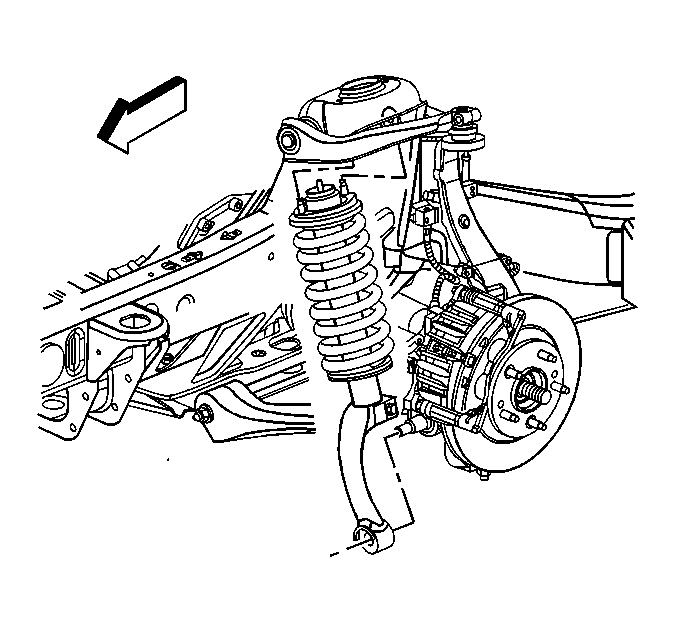

Fig 1: Removing/Installing Shock Module

Courtesy of GENERAL MOTORS CORP.

Install the shock module to the shock tower and lower control arm.
Install the shock module yoke to the lower control arm.
Lower the vehicle.

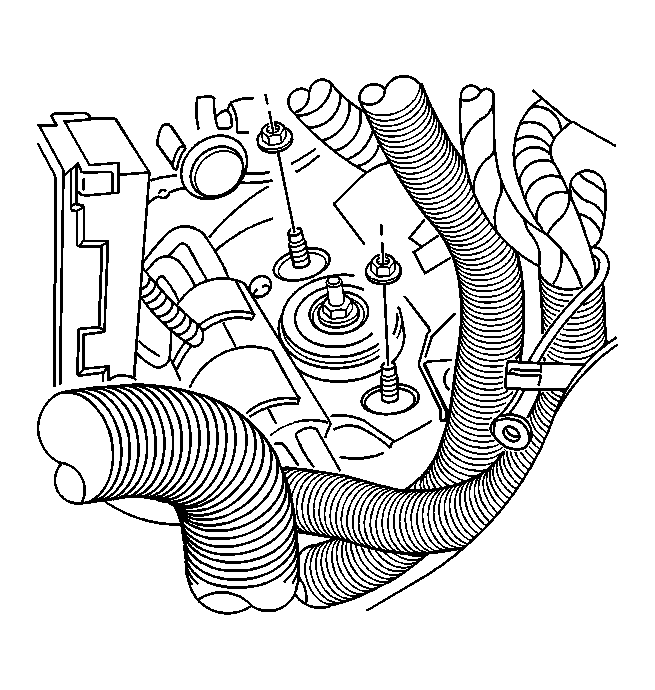

Fig 2: Removing/Installing Shock Module Upper Retaining Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the shock module upper retaining nuts.
Tighten: Tighten the shock module upper retaining nuts to 45 N.m (33 lb ft).
Raise the vehicle.

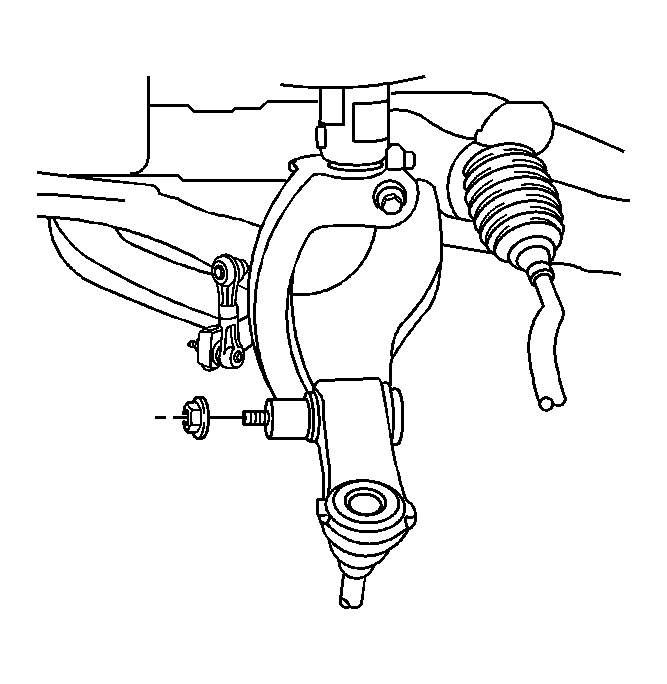

Fig 3: Removing/Installing Shock Module Yoke Lower Mounting Nut

Courtesy of GENERAL MOTORS CORP.

Install the shock module yoke to lower control arm retaining nut.
Tighten: Tighten the shock module yoke to lower control arm retaining nut to 110 N.m (81 lb ft).
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tire and Wheels.
Lower the vehicle.
