Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fold down seat backs on the rear seat back frame.

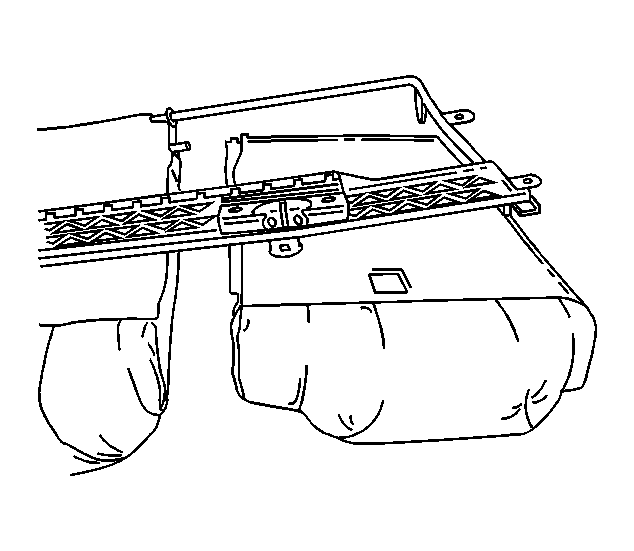

    2. Fig 1: Positioning Fold Down Seat Backs To Frame (Rear - Fold Down)
    GM530836Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat back frame pivot bolts (1).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

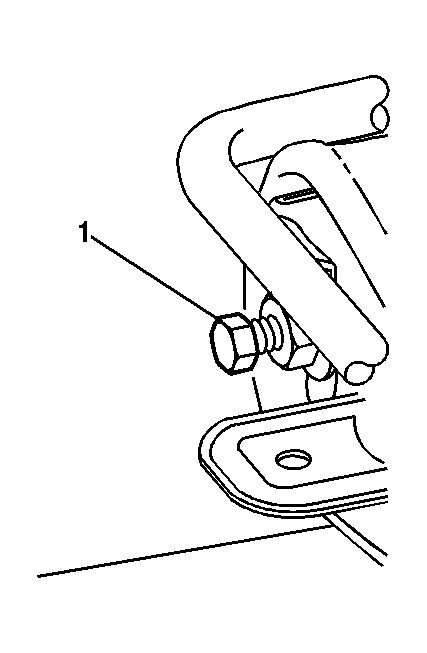

    3. Fig 2: Seat Back Pivot Bolts (Rear - Fold Down)
    GM802802Courtesy of GENERAL MOTORS CORP.
  3. Install the rear seat back bolsters. Refer to Seat Back Bolster Replacement - Rear Split Folding .
  4. Install the rear seat back. Refer to Seat Back Replacement - Rear (Fixed)  or Seat Back Replacement - Rear (Folding) .
