Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the surface of the rear shelf in the navigation antenna mounting location, using an isopropyl alcohol pad and a clean lint-free cloth.

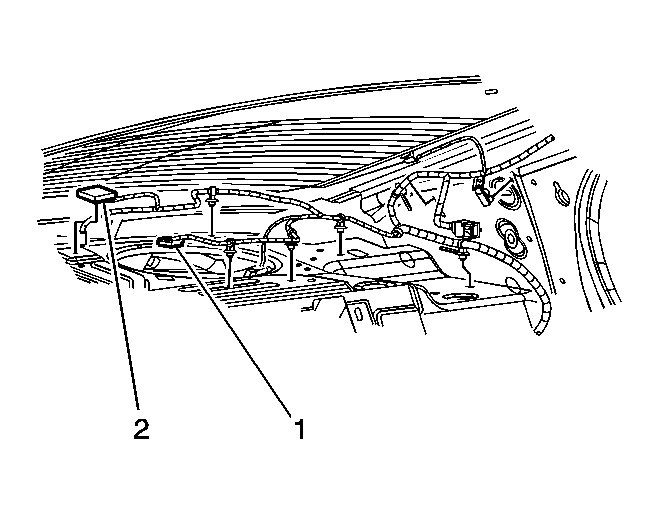

    2. Fig 1: View Of Navigation Antenna
    GM1204254Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not touch the adhesive backing.
  2. Remove the protective backing from the adhesive of the navigation antenna.
  3. Install the navigation antenna (2) to the rear shelf surface.

    Press the navigation antenna into place for approximately 30 seconds until fully seated.

  4. Connect the navigation antenna cable connector.
  5. Install the sound barrier.
  6. Install the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf in Interior Trim.
