HVAC Component Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

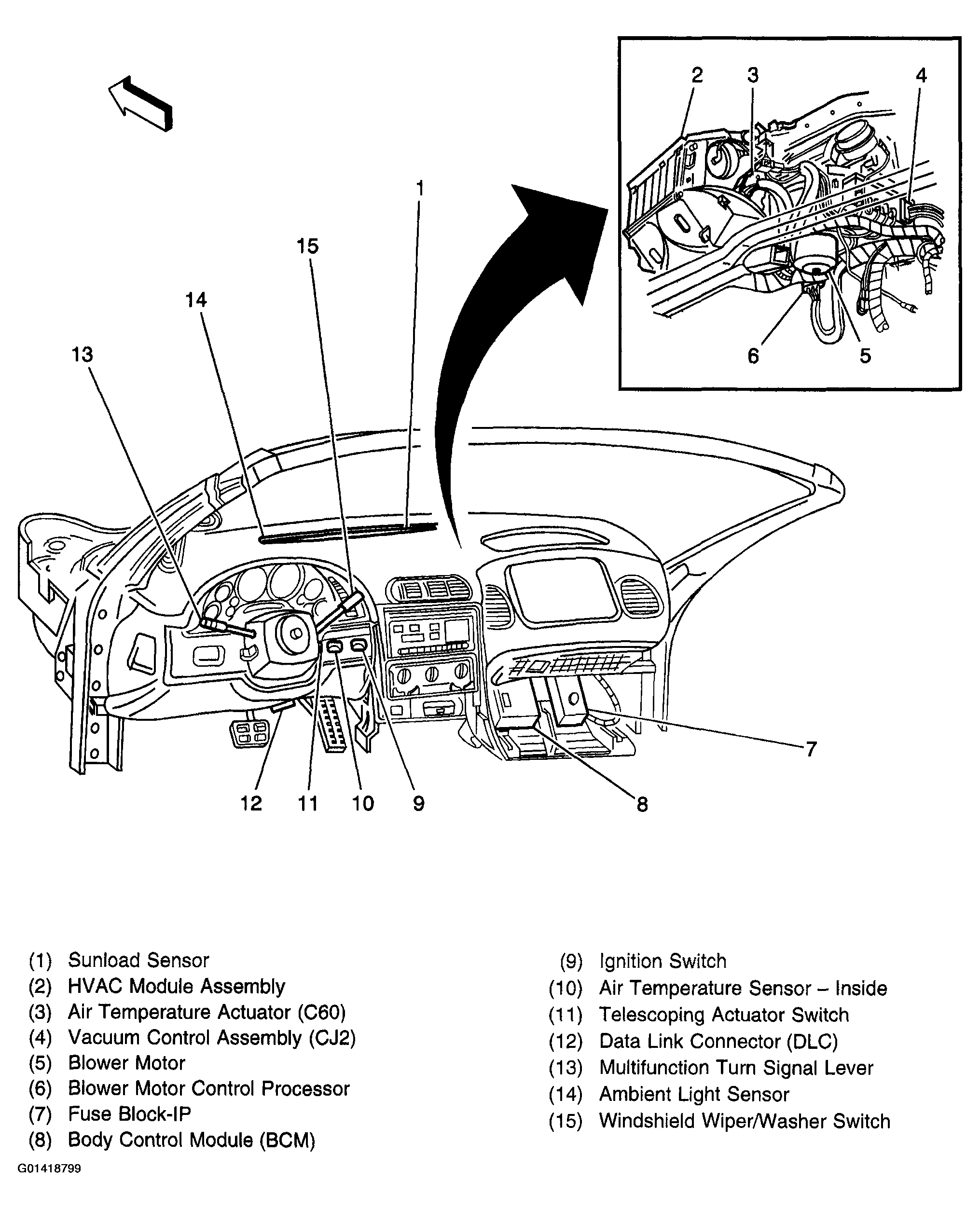

Fig 1: Locating HVAC Component View (Cockpit)

Courtesy of GENERAL MOTORS CORP.

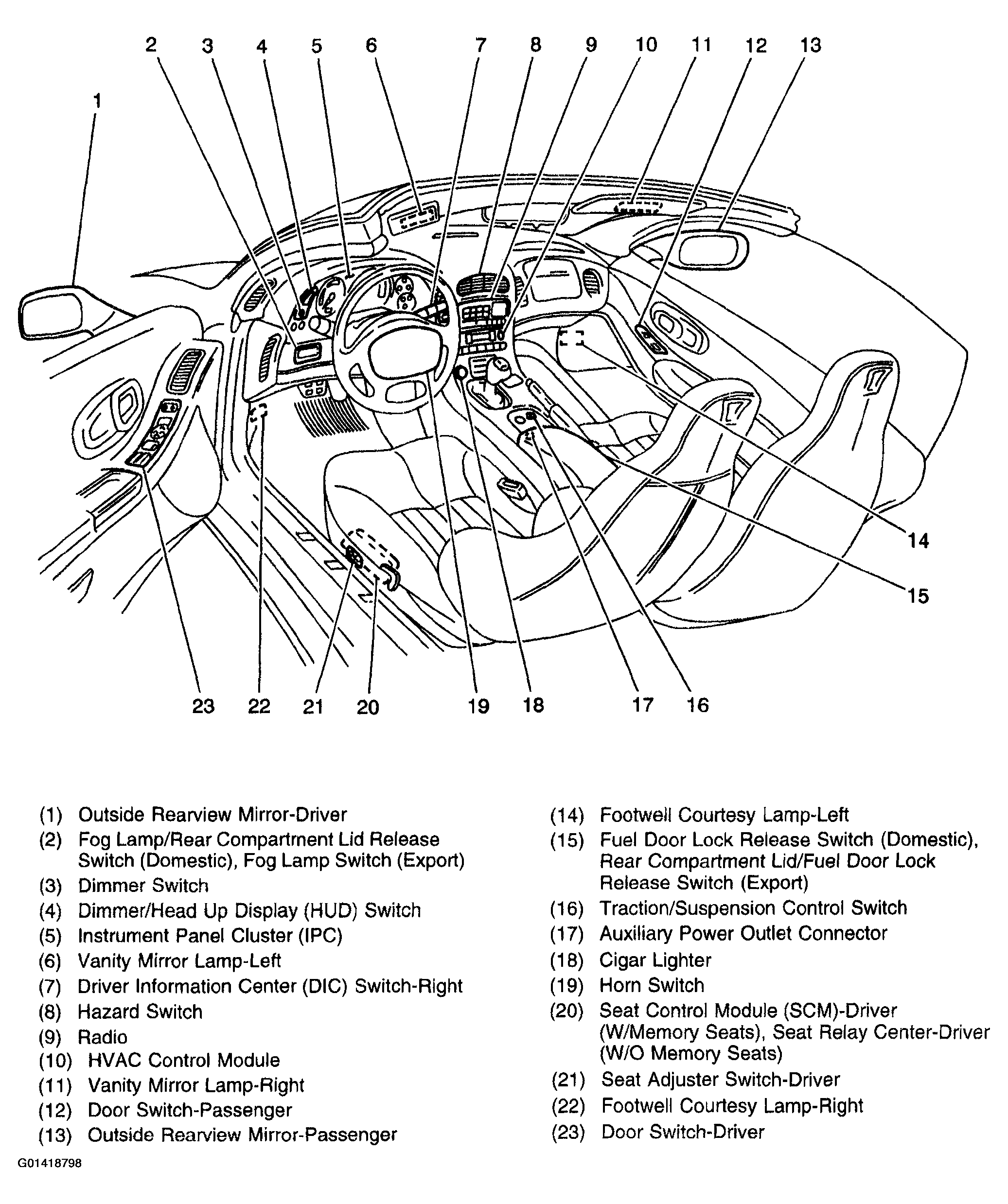

Fig 2: Locating HVAC Component View (Instrument Panel)

Courtesy of GENERAL MOTORS CORP.

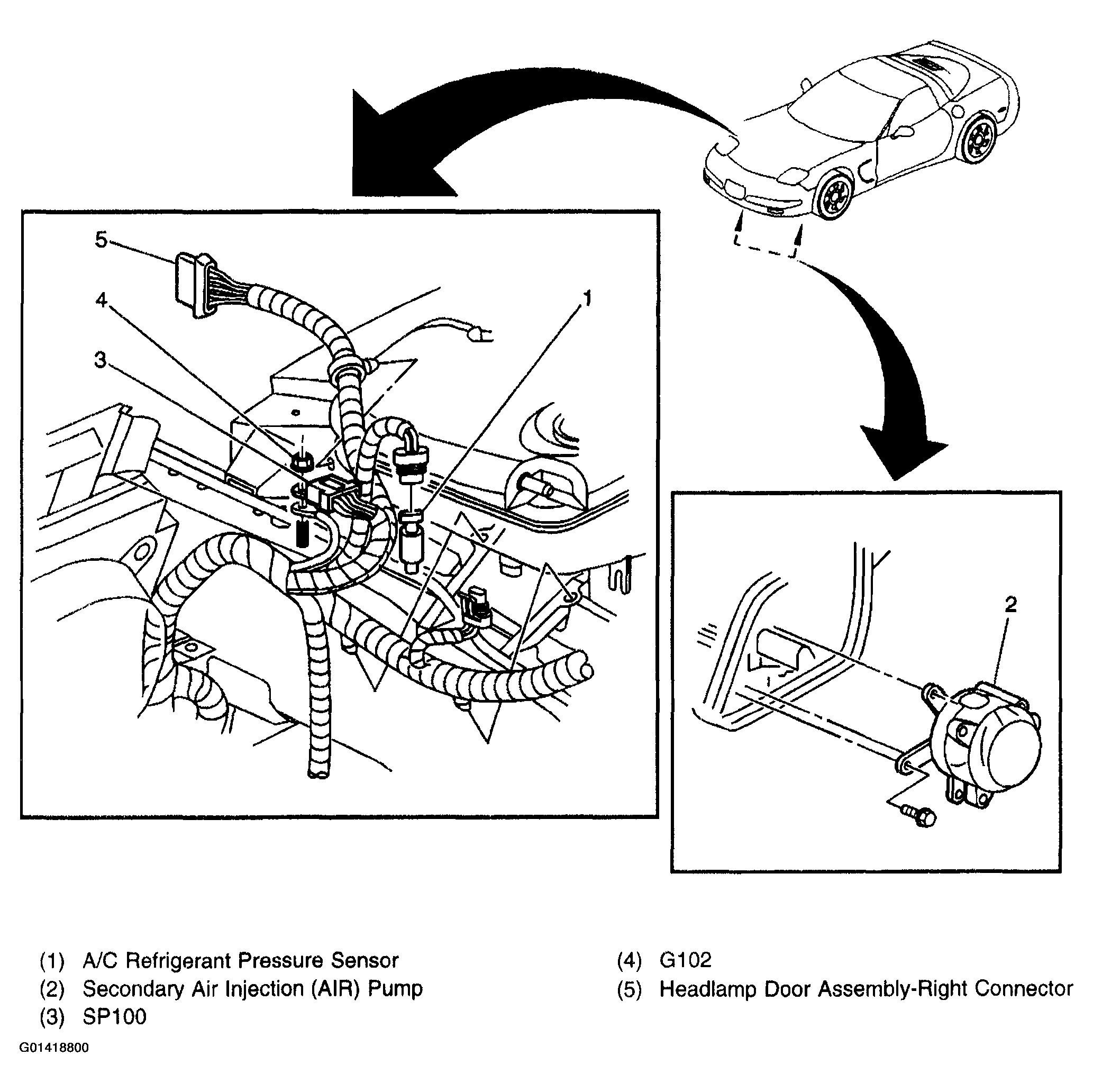

Fig 3: Locating (Front Of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

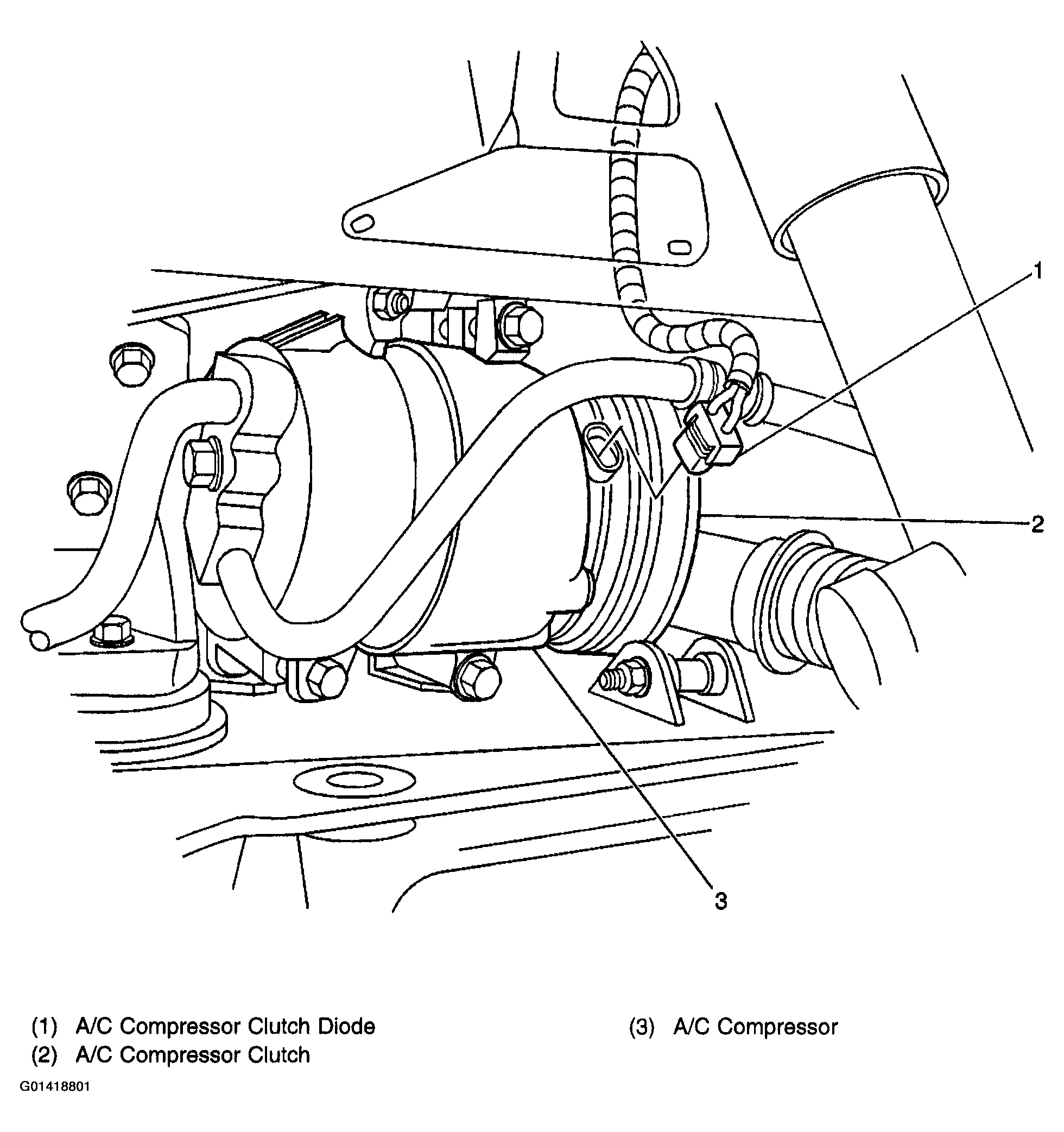

Fig 4: Locating A/C Compressor Component View

Courtesy of GENERAL MOTORS CORP.
