Scan Tool Data List

The scan tool data list(s) contain all the instrument panel, gages, and console related parameters that are available on the scan tool. The parameters in the list are arranged in order, as they appear on the scan tool. The data list column indicates the location of the parameter within the scan tool menu selections.

Use the scan tool data list(s) as directed by a diagnostic table or in order to supplement the diagnostic procedures. Begin all of the diagnostic procedures with the DIAGNOSTIC SYSTEM CHECK - INSTRUMENT CLUSTER  for DIC, HUD, and IPC or DIAGNOSTIC SYSTEM CHECK - AUDIBLE WARNINGS  for audible warnings.

Use the scan tool data list(s) only after the following is determined:

• There is no published DTC procedure nor published symptom procedure for the customer concern.
• The DTC or symptom procedure indicated by the diagnostic system check does not resolve the customer concern.

The typical data values are obtained from a properly operating vehicle under the conditions specified in the first row of the scan tool data list table. Comparison of the parameter values from the suspect vehicle with the typical data values may reveal the source of the customer concern.

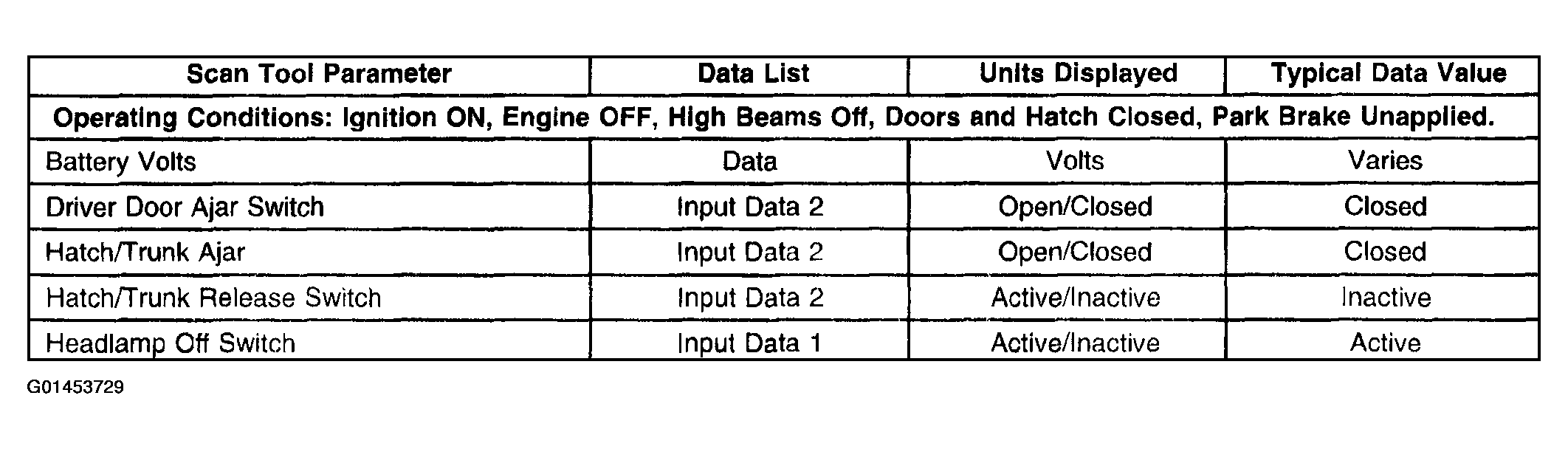

Fig 1: BCM Scan Tool Data List (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

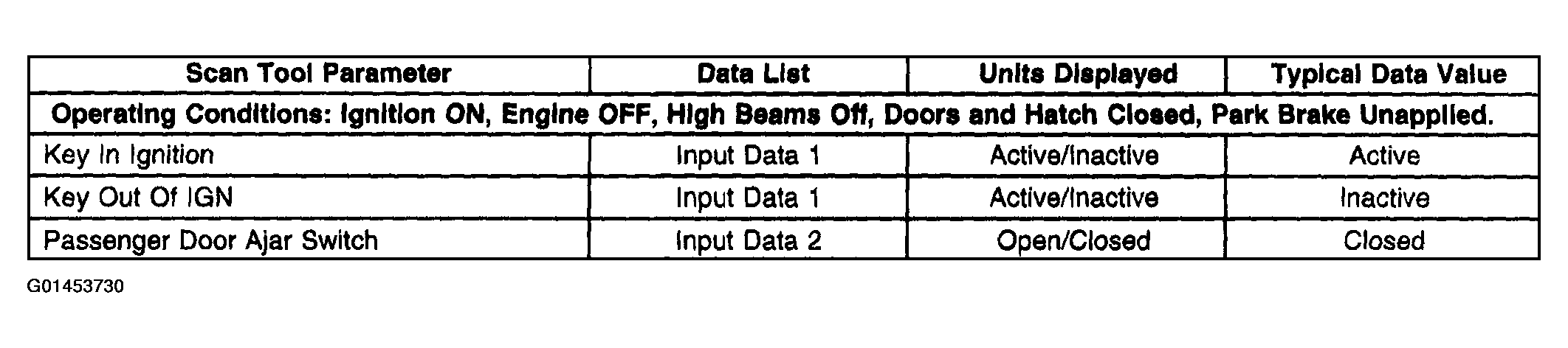

Fig 2: BCM Scan Tool Data List (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

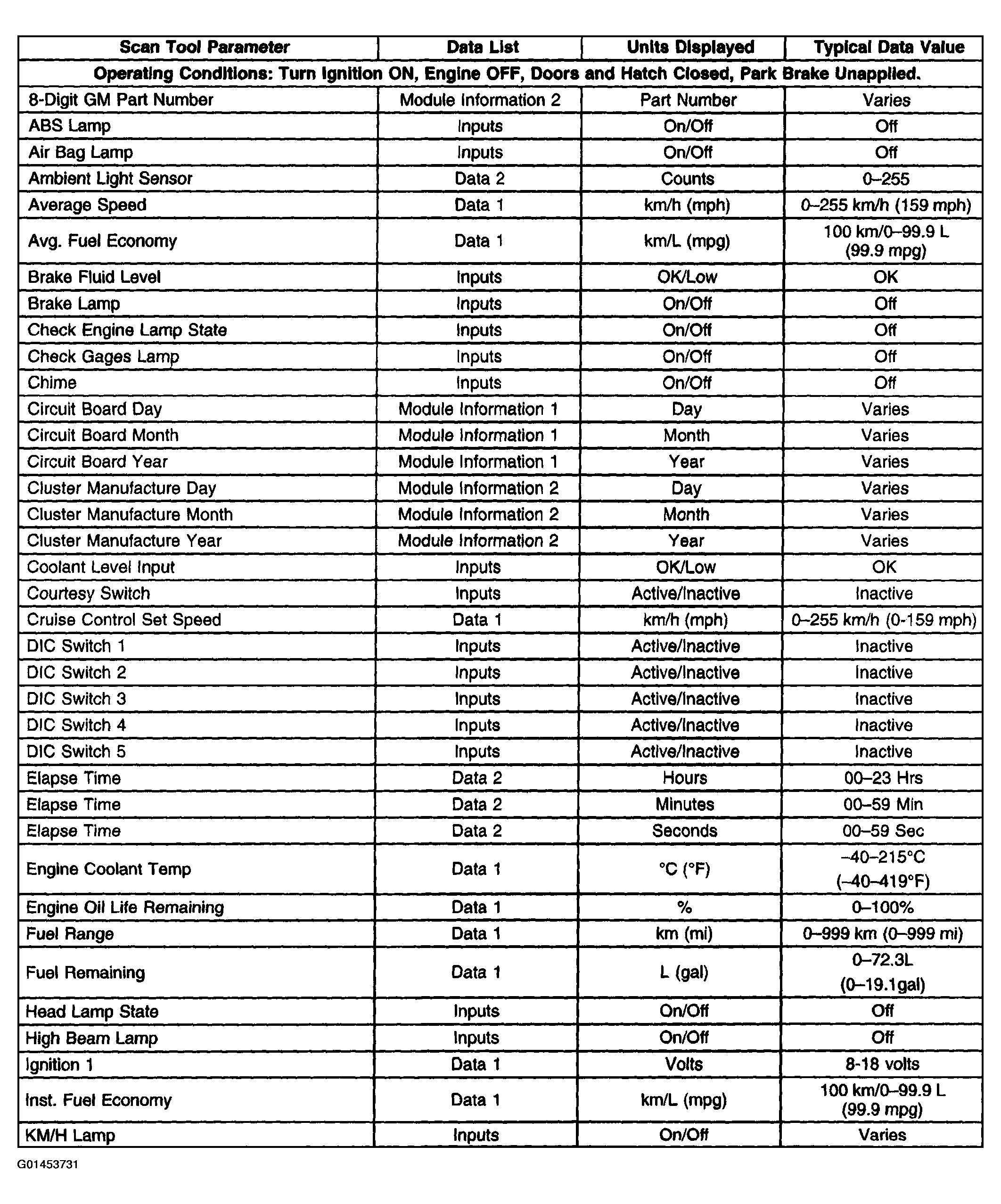

Fig 3: IPC Scan Tool Data List (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

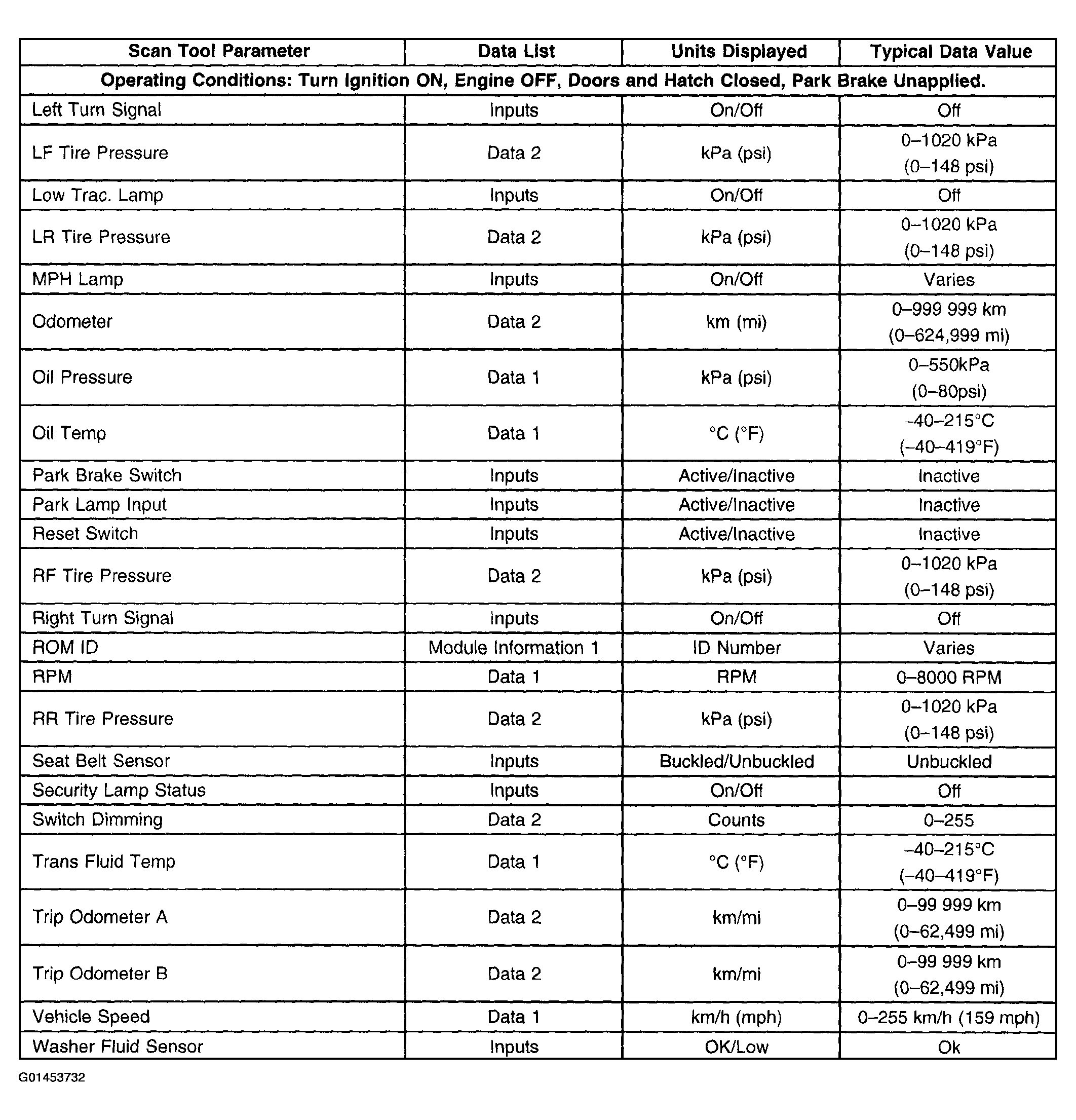

Fig 4: IPC Scan Tool Data List (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

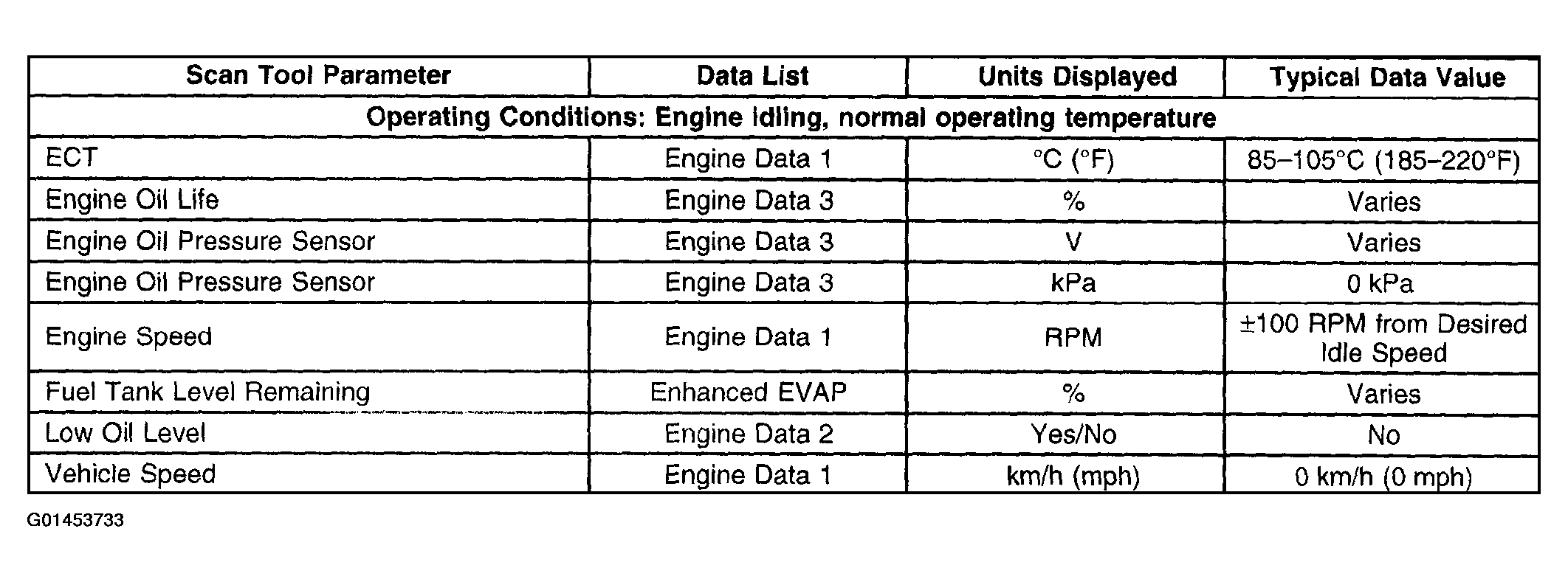

Fig 5: PCM Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.
