Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel door release, rear lift window release (export) switch to the console.

    Align the switch, then push to secure.

  2. Connect the electrical connector to the switch.

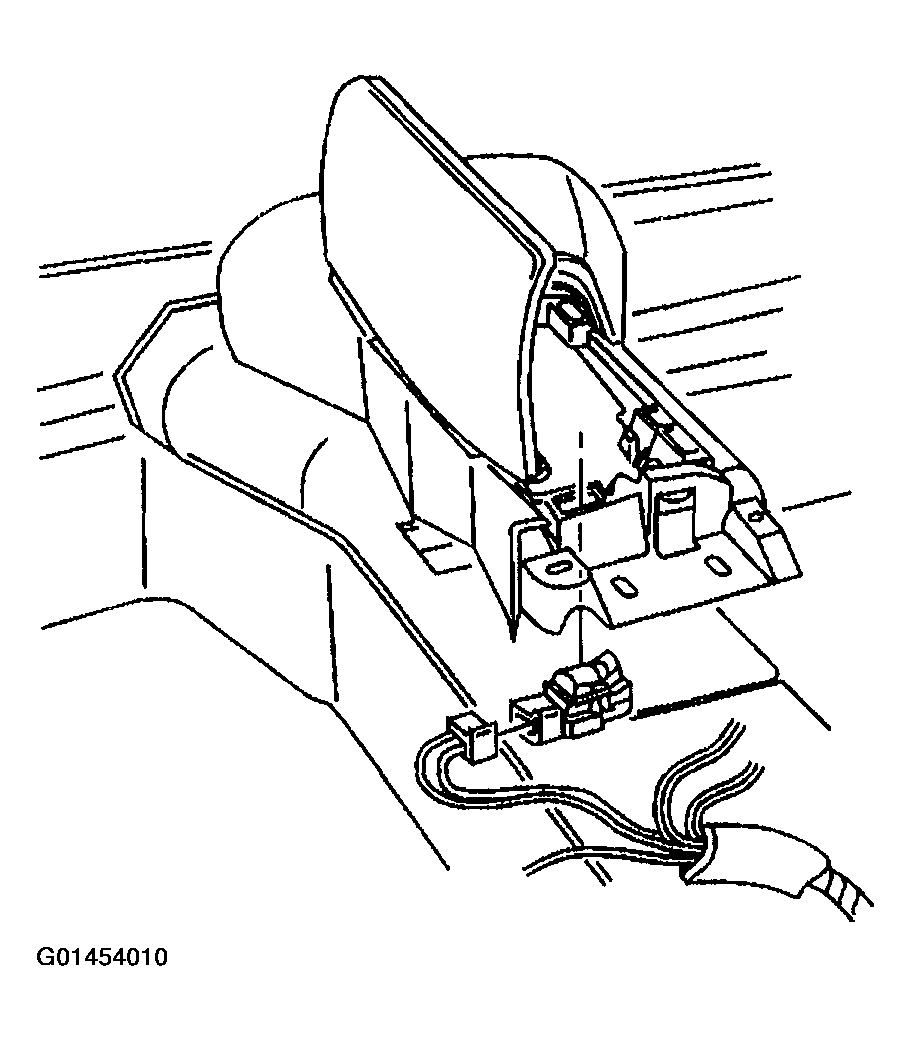

    Fig 1: Installing Fuel Door Release
    G01454010Courtesy of GENERAL MOTORS CORP.
  3. Install the electrical accessory plug housing to the console.

    Check that the cover plug is in place on the accessory plug housing.

  4. Install the electrical accessory plug retainer onto the accessory plug housing.

    Screw the retainer onto the housing until secure.

  5. Connect the electrical connector to the electrical accessory plug.

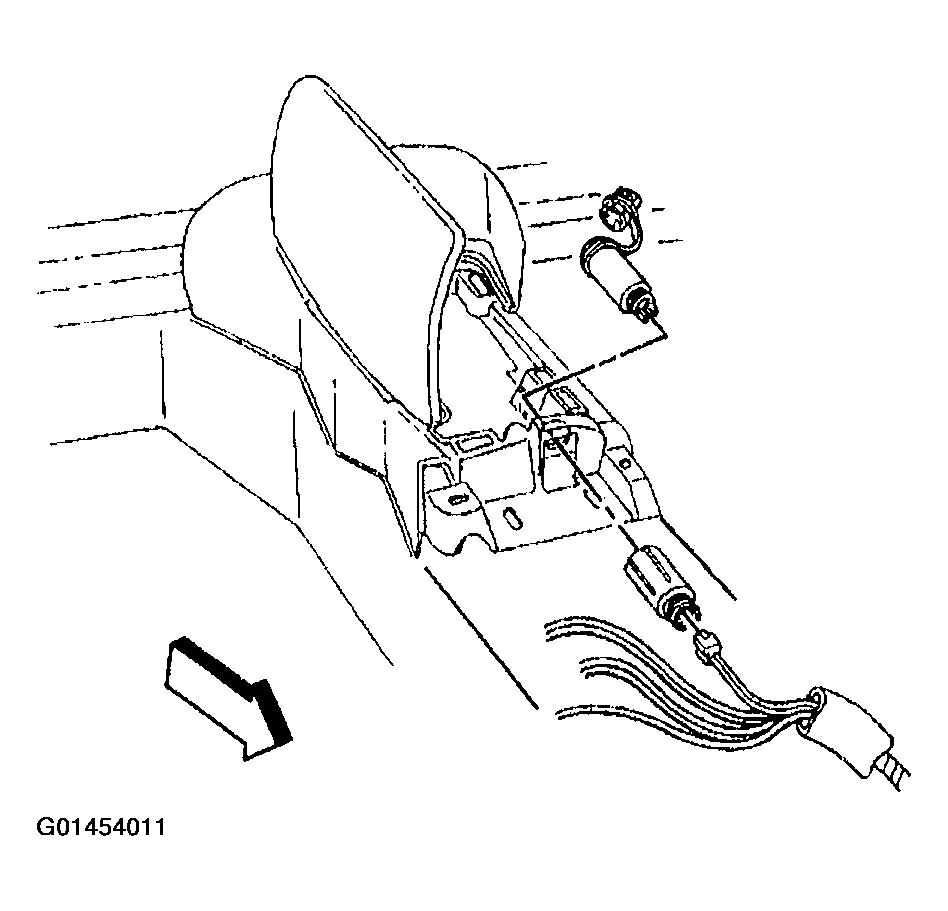

    Fig 2: Installing Electrical Accessory Plug Housing To Console
    G01454011Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Be sure to install the front of the console UNDER the rear of the IP accessory trim plate.
  6. Install the console into position.

    Insert the front of the console under the rear of the IP accessory trim plate.

  7. Loosely install the console retaining nuts.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

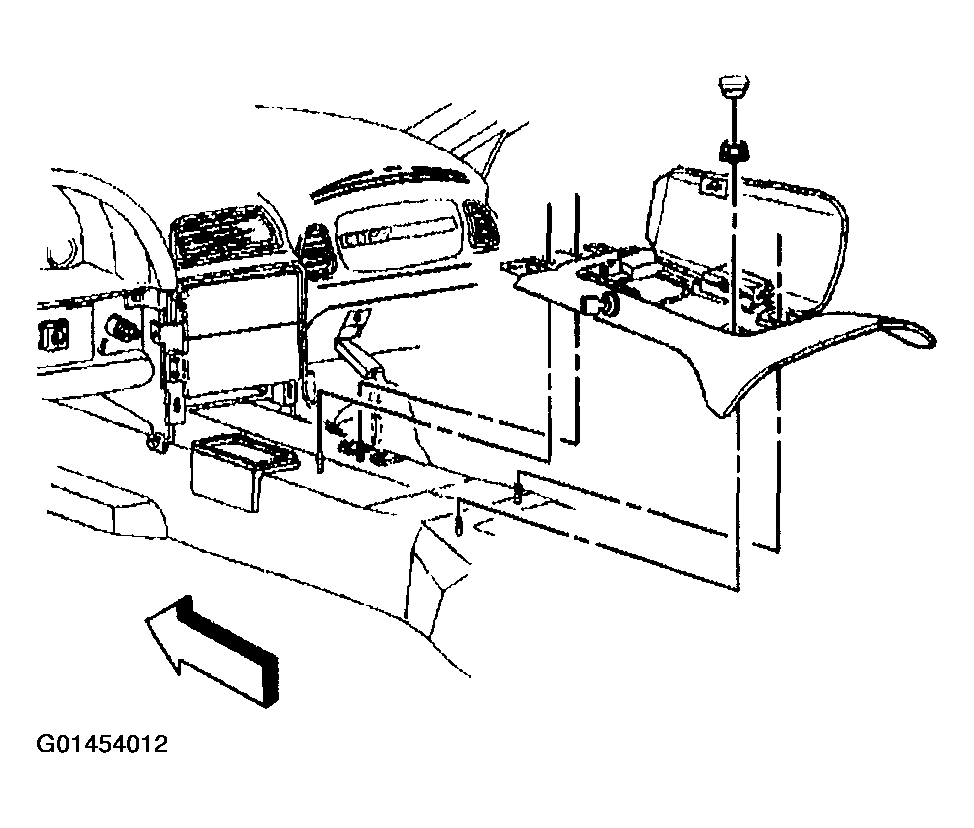

    Fig 3: Installing Console Retainers
    G01454012Courtesy of GENERAL MOTORS CORP.
  8. Position the console to the IP accessory trim plate (at the front) and the floor extension carpet (at the rear) for best appearance.

    Tighten

    Tighten the console retaining nuts to 10 N.m (89 lb in).

  9. Connect the electrical connector (1) to the electronic traction control, ride control switch.

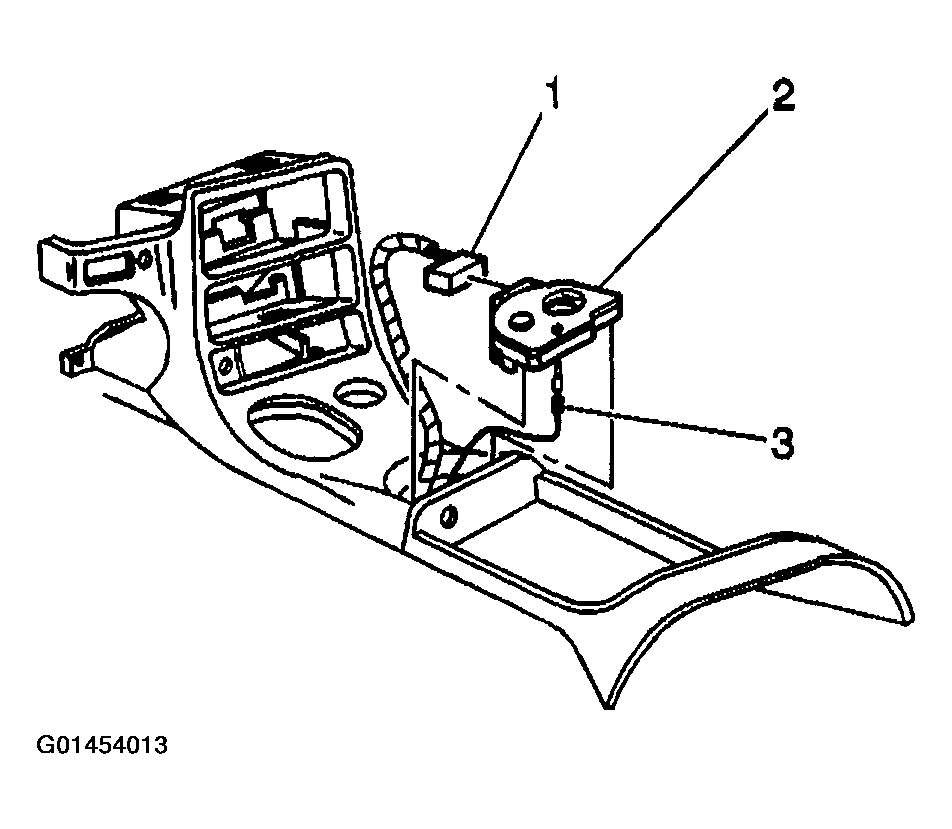

    Fig 4: Connecting Electrical Connector To Electronic Traction Control, Ride Control Switch
    G01454013Courtesy of GENERAL MOTORS CORP.
  10. Connect the LED connector (1) to the wiring harness connector (2).
  11. Insert the electronic traction control, ride control switch front retaining tab under the edge of the IP accessory trim plate.
  12. Lower the rear of the switch into position, then push to secure the retaining clips.
  13. Close the console door.
  14. Install the folding top stowage compartment lid extension panel (convertible). Refer to COMPARTMENT LID EXTENSION - FOLDING TOP STOWAGE in Interior Trim.

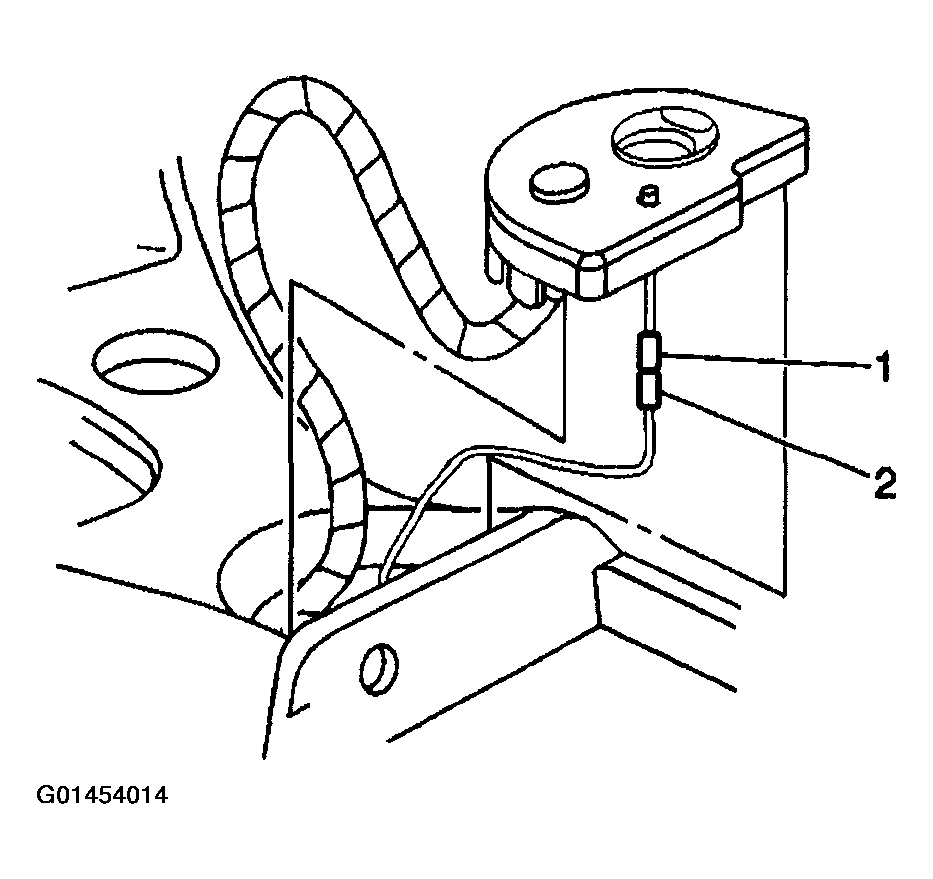

    Fig 5: Connecting LED Connector To Wiring Harness Connector
    G01454014Courtesy of GENERAL MOTORS CORP.
