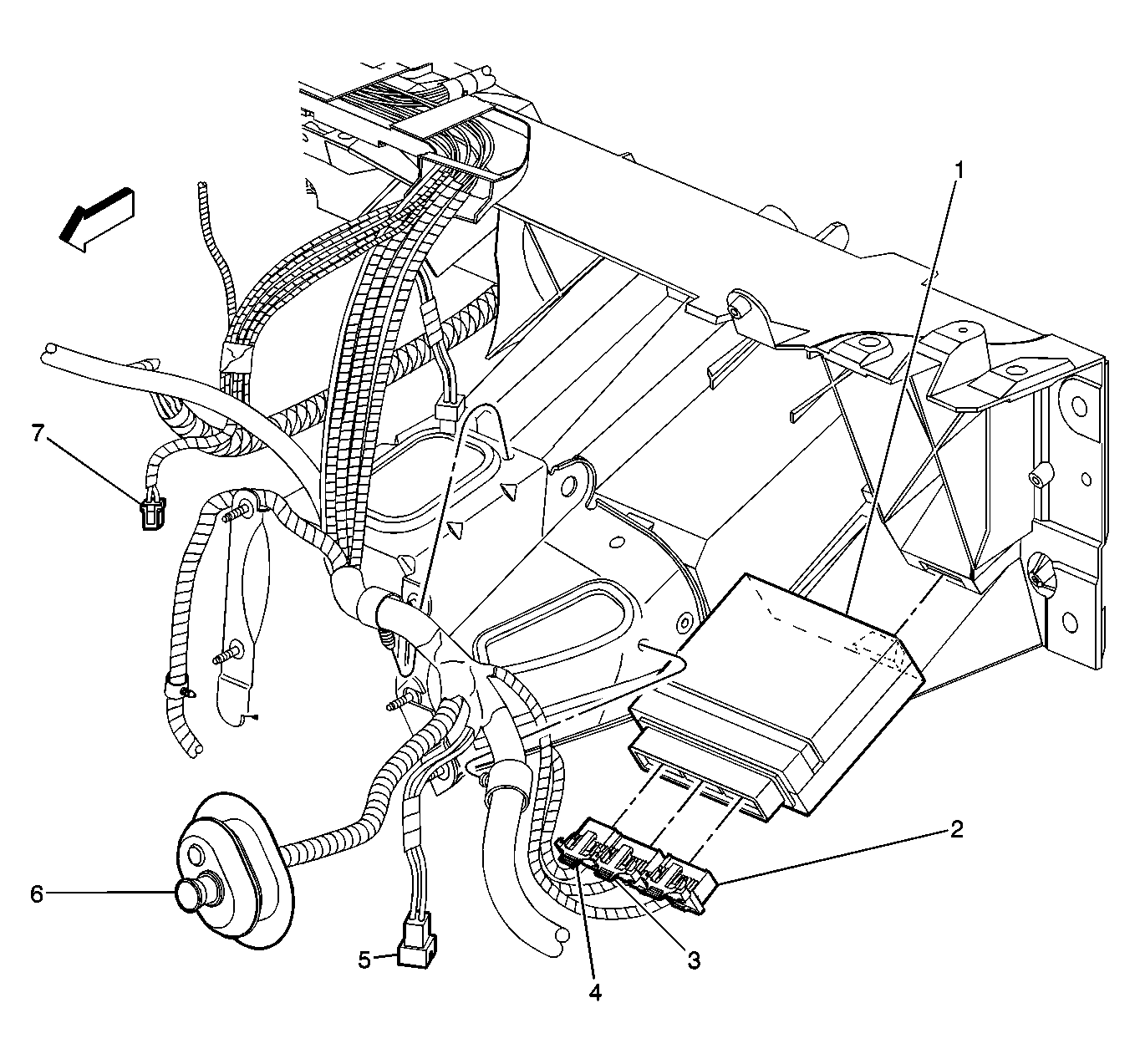

Body Control System Component Views
WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Body Control Module (BCM) |
| 2 |
Body Control Module Connector C3 |
| 3 |
Body Control Module Connector C2 |
| 4 |
Body Control Module Connector C1 |
| 5 |
Headlamp Switch Connector |
| 6 |
P101 |
| 7 |
Remote Control Door Lock Receiver (RCDLR) Connector |
