Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

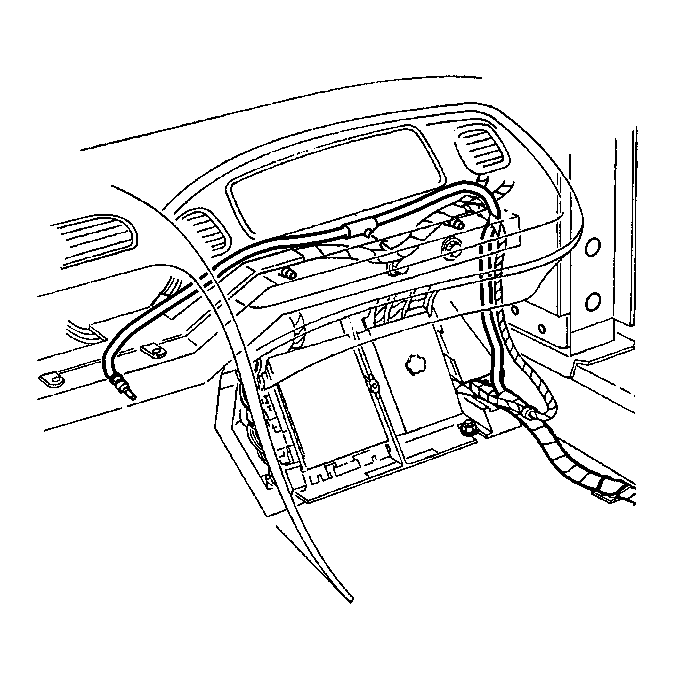

Fig 1: Passenger Side Front Floor Kick Up Panel To IP Electrical Center

Courtesy of GENERAL MOTORS CORP.

Remove the passenger side front floor kick up panel cover to access the instrument panel (IP) electrical center.

Fig 2: Headlamp Circuit Breaker To IP Electrical Center

Courtesy of GENERAL MOTORS CORP.

Remove the headlamp circuit breaker from the IP electrical center.
Open the hood.

Fig 3: RH Headlamp Wiring Harness Electrical Connector To Forward Lamp Wiring Harness

Courtesy of GENERAL MOTORS CORP.

Raise the RH headlamp manually.
Turn the headlamp motor/actuator manual control knob counterclockwise to raise the headlamp.
Disconnect the RH headlamp wiring harness electrical connector from the forward lamp wiring harness.

Fig 4: Brake Caliper Cooling Duct To Front Fascia

Courtesy of GENERAL MOTORS CORP.

Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Remove the front fascia lower closeout panel. Refer to Close Out Panel - Front Bumper Fascia Lower in Bumpers.
Release the brake caliper cooling duct from the front fascia and reposition the duct.

Fig 5: Electrical Connectors To Headlamp Control Module

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors from the headlamp control module.

Fig 6: Nuts Mounting The Module To Headlamp Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the nuts mounting the module to the headlamp bracket.
Remove the module from the vehicle.
