Installation Procedure

  1. Install the negative cable to the harness conduit.

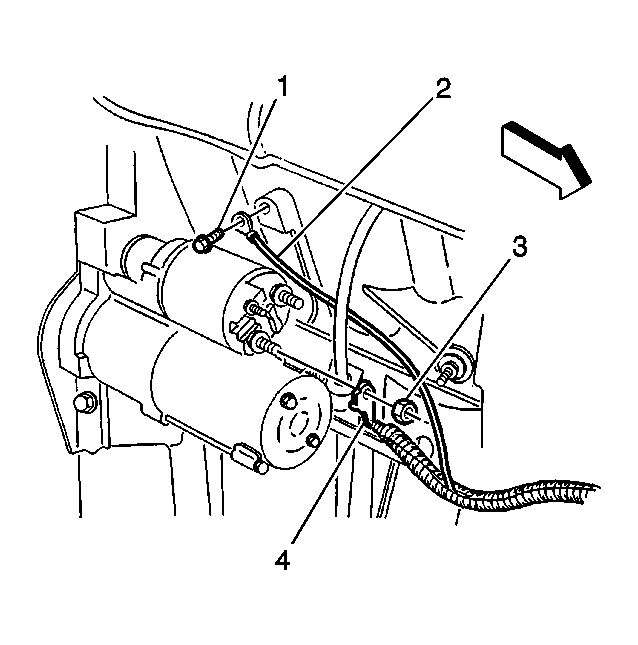

    Fig 1: Locating Starter Ground Lead & Bolt, Positive Cable Lead
    GM211595Courtesy of GENERAL MOTORS CORP.
  2. Position the ground lead (2).
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the ground lead bolt (1) at the engine block.

    Tighten:  Tighten the ground lead bolt to 50 N.m (37 lb ft).

  4. Position the ground lead.
  5. Install the ground terminal bolt to the wheelhouse.

    Tighten:  Tighten the ground terminal bolt to 16 N.m (12 lb ft).

  6. Install the battery. Refer to Battery Replacement .
