Installation Procedure

  1. Position the cruise control module to the mounting bracket (4).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 3 cruise control module retaining screws (2).

    Tighten:  Tighten the cruise control module retaining screws to 3.5 N.m (31 lb in).

  3. Push the connector to the cruise control module (1) until the tang on the wiring harness connector (3), locks in place.
  4. Install the cruise control cable. Refer to Cruise Control Cable Replacement .

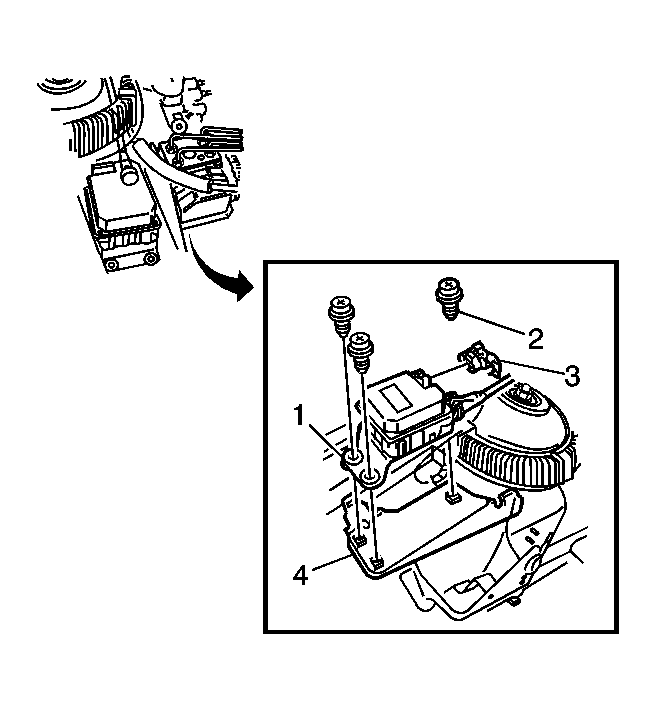

    5. Fig 1: View Of Wiring Harness Connector, Cruise Control Module, Bracket & Screws
    GM1375223Courtesy of GENERAL MOTORS CORP.
