Cruise Control Component Views

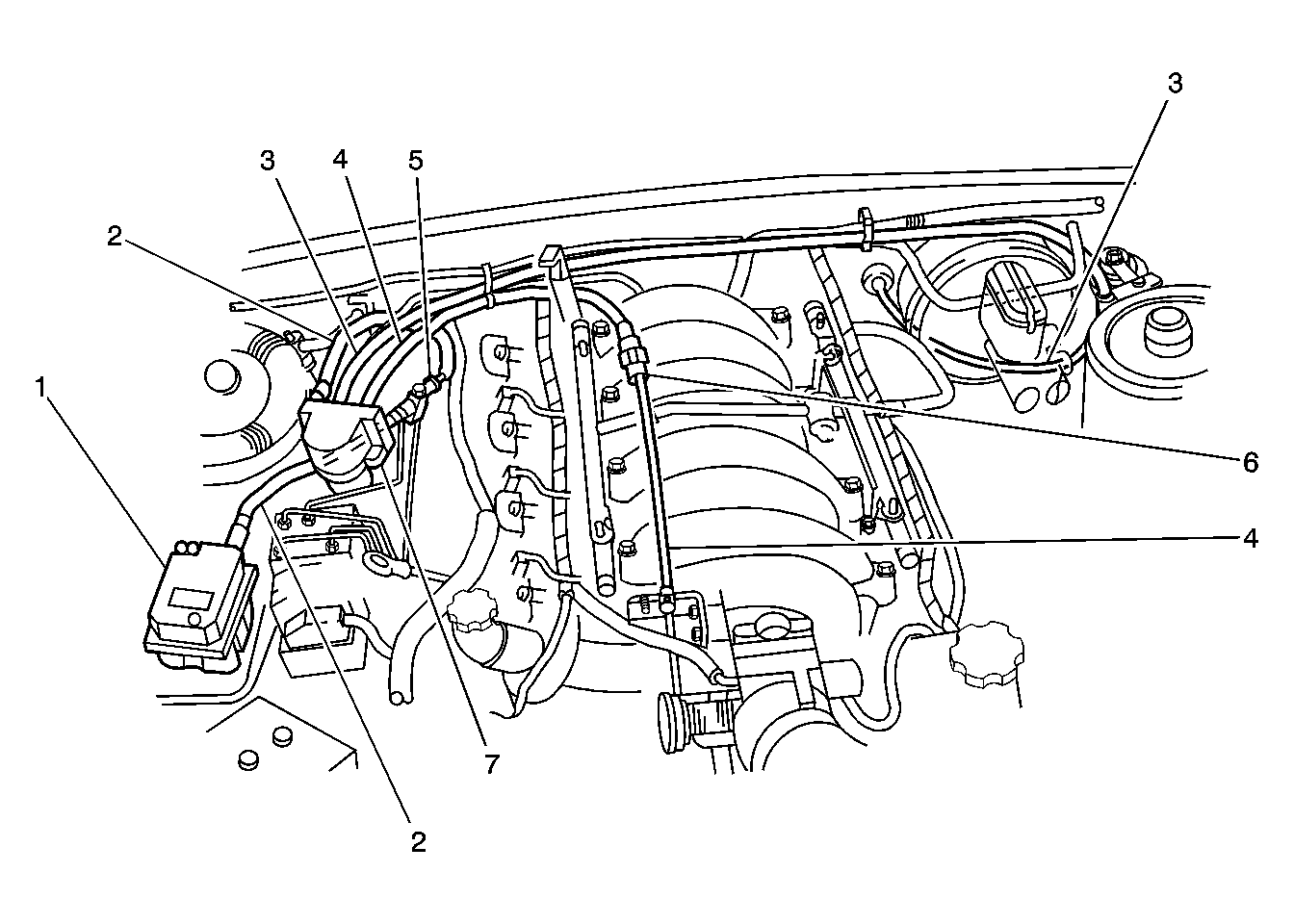

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cruise Control Module |
| 2 |
Cruise Control Cable |
| 3 |
Accelerator Pedal Cable |
| 4 |
Throttle Cable |
| 5 |
Cruise Control Outer Cable Adjuster/Lock |
| 6 |
Cruise Control Outer Cable Adjuster/Lock |
| 7 |
Throttle Relaxer |

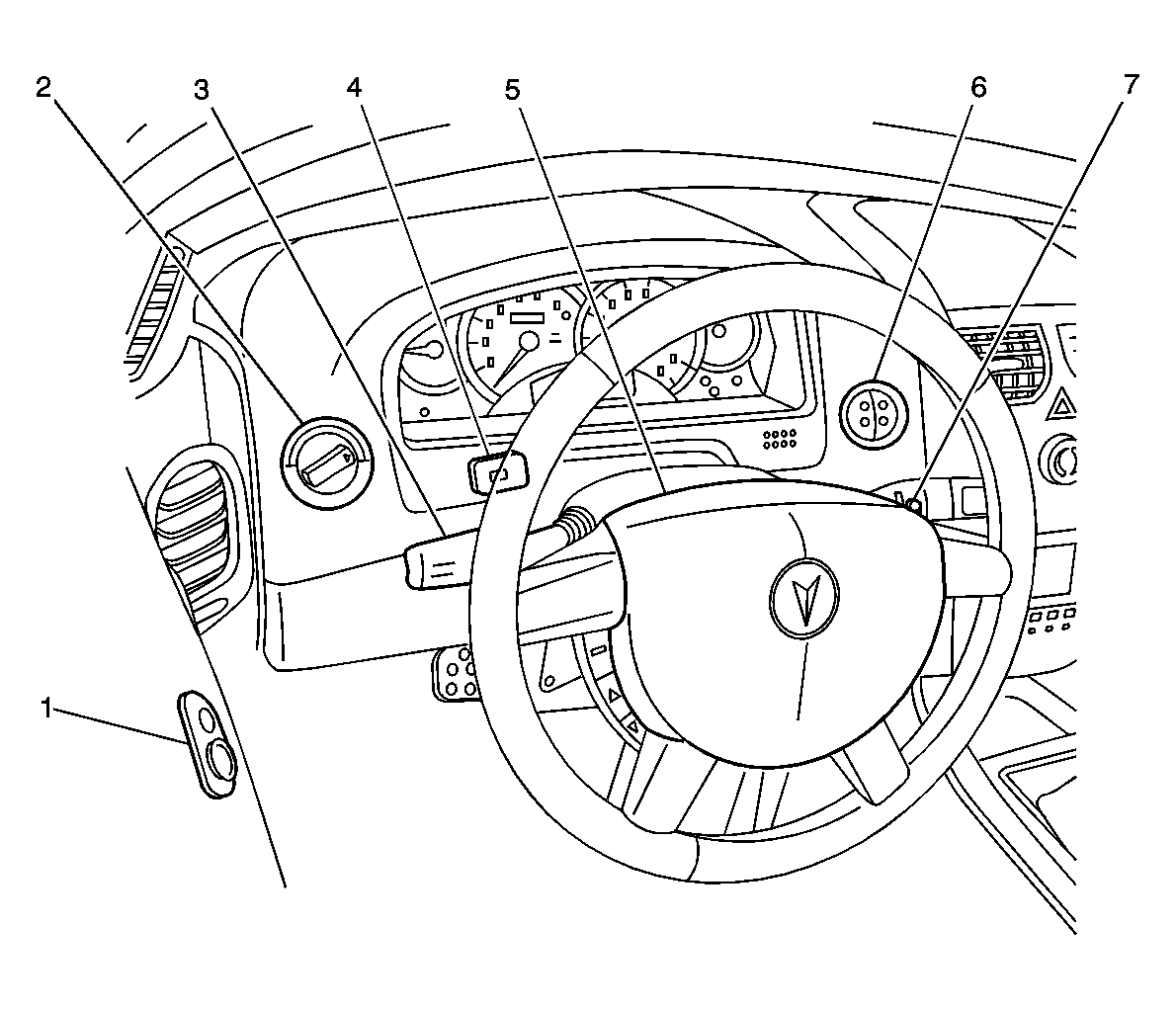

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Power Mirror Switch |
| 2 |
Headlamp and Fog Lamp Switch |
| 3 |
Turn Signal/Headlamp Dimmer and Cruise Control Switch |
| 4 |
Trunk Release Switch |
| 5 |
Horn Switch |
| 6 |
Trip Computer Switch |
| 7 |
Wiper/Washer Switch |
