Stationary Windows Connector End Views

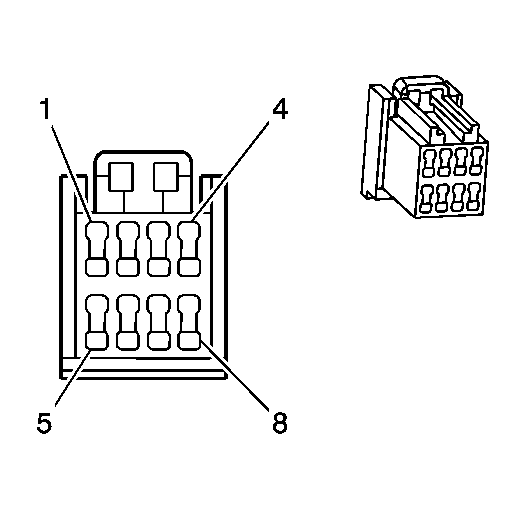

HVAC Control Assembly C2 Connector End View

GM1356070Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-7387-30
  • 8-Way Female (BK)
Pin Wire Color Circuit No. Function
1 OG 292 Rear Defog Switch Signal
2 RD/WH 66 A/C Request Signal
3 RD/BK 762 A/C Request Signal
4 GY 230 Instrument Panel Lamps Dimming Control
5 PK/BU 539 Ignition 1 Voltage
6 - - Not Used
7 BK/RD 681 Secondary Rear Defog Switch Signal
8 BN/WH 32 Instrument Panel Lamps Fuse Supply Voltage

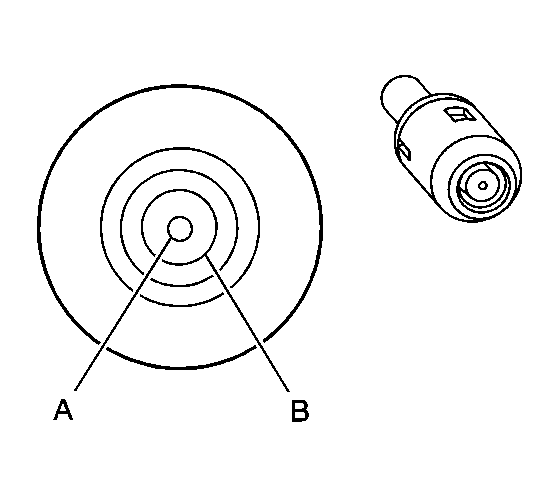

Rear Window Defogger and Radio Antenna Module C2 Connector End View

GM1356084Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • A93
  • 2-Way Female (BK)
Pin Wire Color Circuit No. Function
A BK 5172 Antenna In Signal
B BARE - Shield
