Installation Procedure

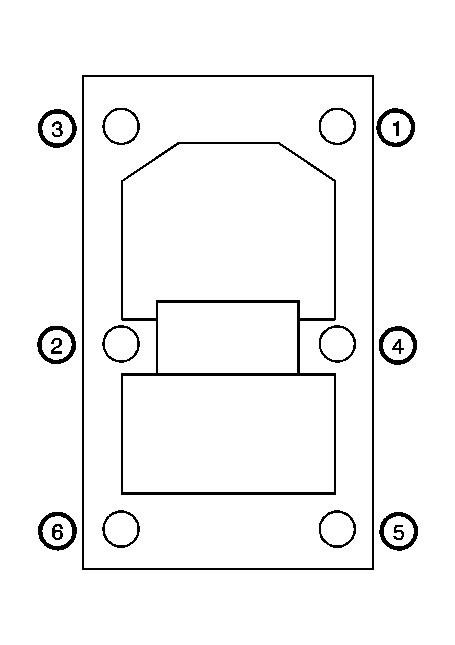

Fig 1: Brake Pressure Modulator Valve Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the EBCM to the brake pressure modulator valve. Secure with 6 new bolts in sequence shown.
Tighten: Tighten the EBCM bolts to 3 N.m (26.5 lb in).

Fig 2: View Of EBCM, BPMV Motor Wiring Connector & Retainer

Courtesy of GENERAL MOTORS CORP.

Install the BPMV wiring to the retainer (3) on the EBCM.
Connect the BPMV motor wiring connector (2) to the electronic brake control module (1) (EBCM).
Install the Brake Pressure Modulator Valve (BPMV). Refer to Brake Pressure Modulator Valve (BPMV) Replacement .
