Installation Procedure

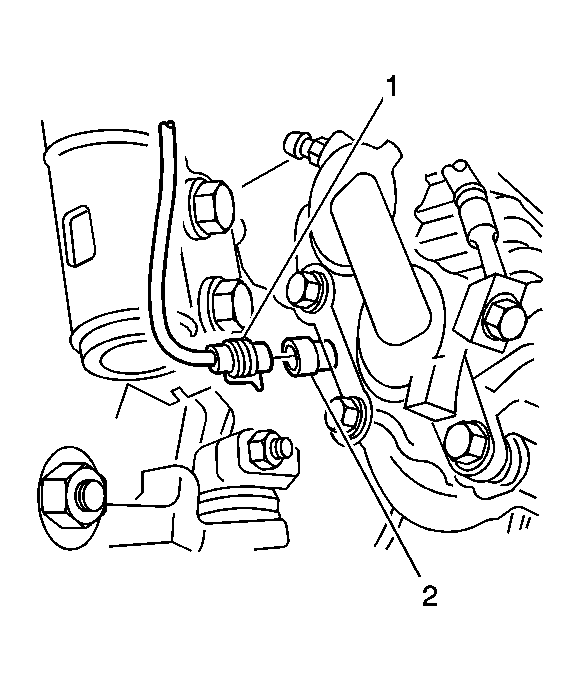

    Fig 1: View Of Electrical Connector & Wheel Speed Sensor
    GM1310258Courtesy of GENERAL MOTORS CORP.
  1. Install the front wheel hub and bearing assembly. Refer to Wheel Bearing/Hub Replacement - Front in Front Suspension.
  2. Connect the wheel speed sensor electrical connector (1) to the wheel speed sensor (2).
  3. Perform Diagnostic System Check - ABS .
