Trailer Harness Connector B Connector End View

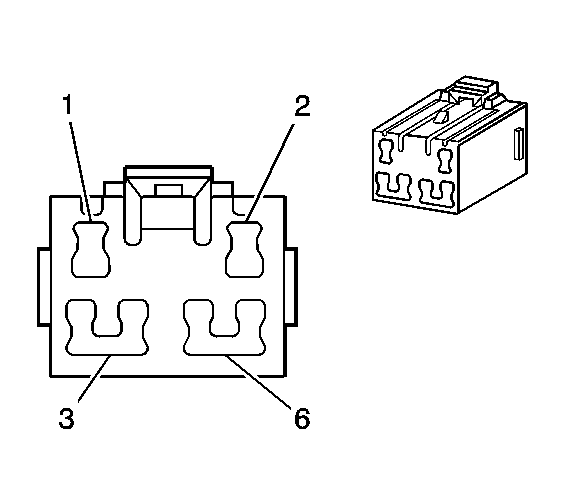

Trailer Harness Connector B Connector End View

GM1356305Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-7166
  • 6-Way F (WH)
Pin Wire Color Circuit No. Function
1 WH 22 Ground
2 OG 22 Ground
3 GN 5187 Right Turn Signal Lamp Supply Voltage
4 BK 1624 Trailer Backup Lamps Supply Voltage
5 RD 1620 CHMSL Supply Voltage
6 BN 2109 Trailer Park Lamps Supply Voltage
