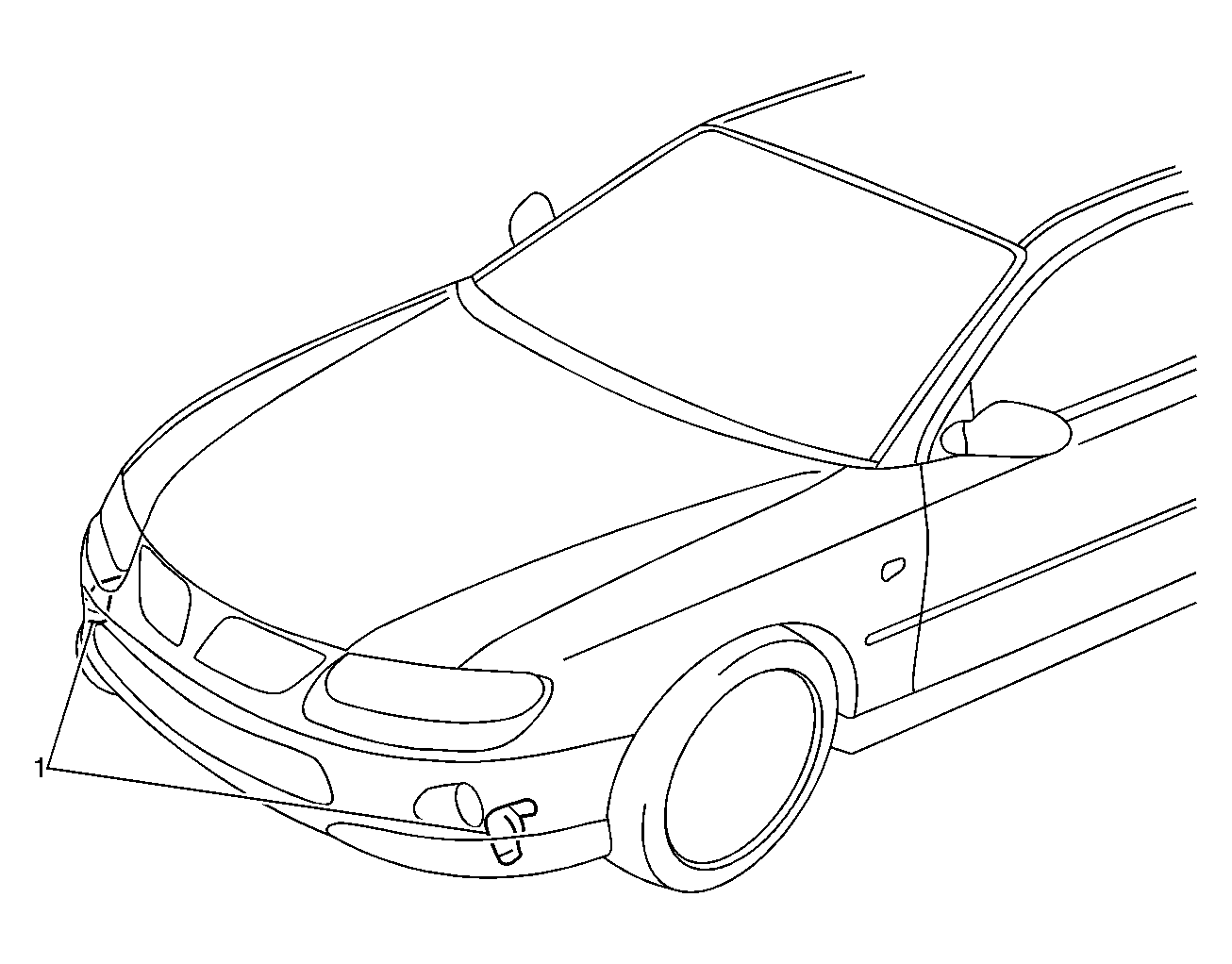

Horns Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
High and Low Horns |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Power Mirror Switch |
| 2 |
Headlamp and Fog Lamp Switch |
| 3 |
Turn Signal/Headlamp Dimmer and Cruise Control Switch |
| 4 |
Trunk Release Switch |
| 5 |
Horn Switch |
| 6 |
Trip Computer Switch |
| 7 |
Wiper/Washer Switch |
