Removal Procedure

  1. Open the instrument panel compartment door.
  2. Remove the 2 screws (3) attaching the right console trim panel (2) to the instrument panel.
  3. Pull the rear of the right console trim panel (2) downward to disengage it from the floor console retaining clip (1).
  4. Remove the right console trim panel (2) from the floor console.

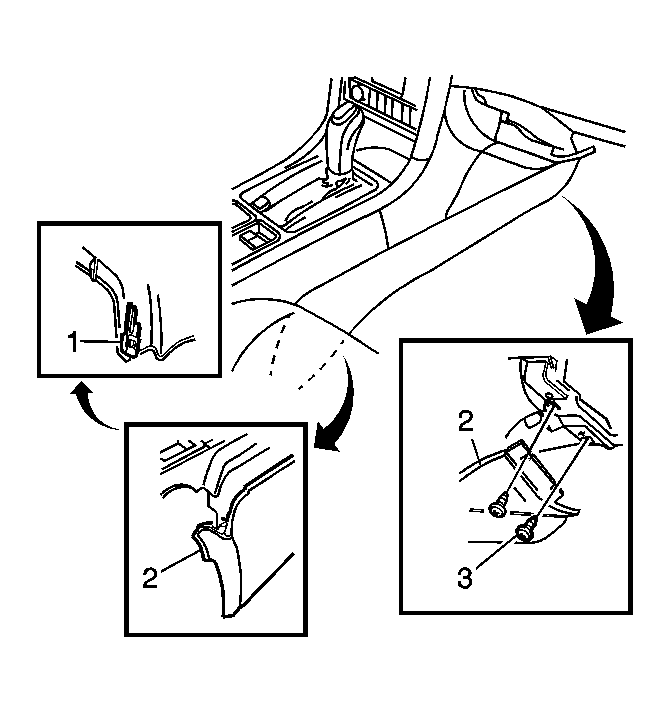

    5. Fig 1: View Of Right Console Trim Panel, Retaining Clip & Screws
    GM1356163Courtesy of GENERAL MOTORS CORP.
