Blower Motor Connector End View

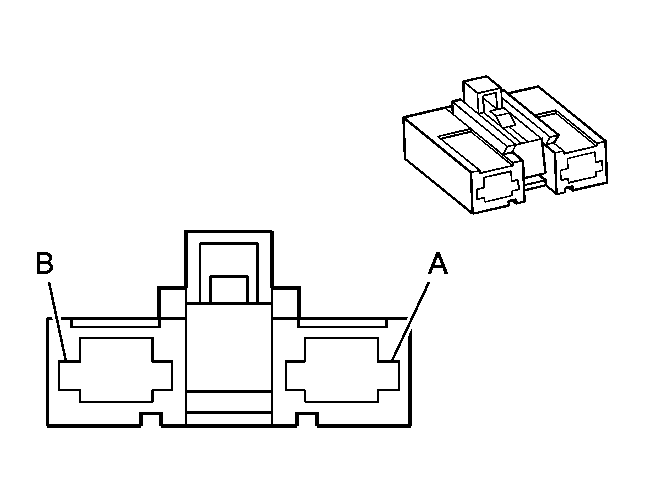

Blower Motor Connector End View

GM1356172Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • M3
  • 2-Way Female (WH)
Pin Wire Color Circuit No. Function
A OG 1042 Battery Positive Voltage
B YE 101 Blower Motor Supply Voltage
