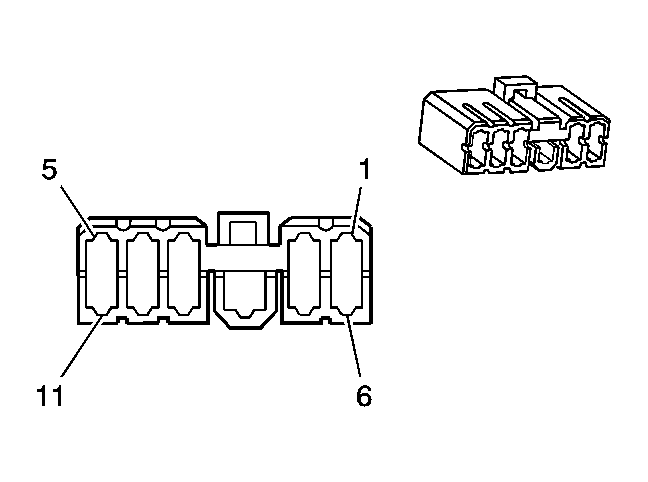

Turn Signal/Multifunction Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7119-3111 11-Way Mixed (WH)
Pin	Wire Color	Circuit No.	Function
1	BU/YE	1969	Headlamps Relay Control
2	-	-	Not Used
3	WH/BK	10	Headlamps Supply Voltage
4	BK/GN	151	Ground
5	-	-	Not Used
6	L-BU	1314	Left Front Turn Signal Lamp Supply Voltage
7	-	-	Not Used
8	BK/GN	151	Ground
9	PU	27	Hazard Signal
10	BU	1315	Right Front Turn Signal Lamp Supply Voltage
11	-	-	Not Used
