Components

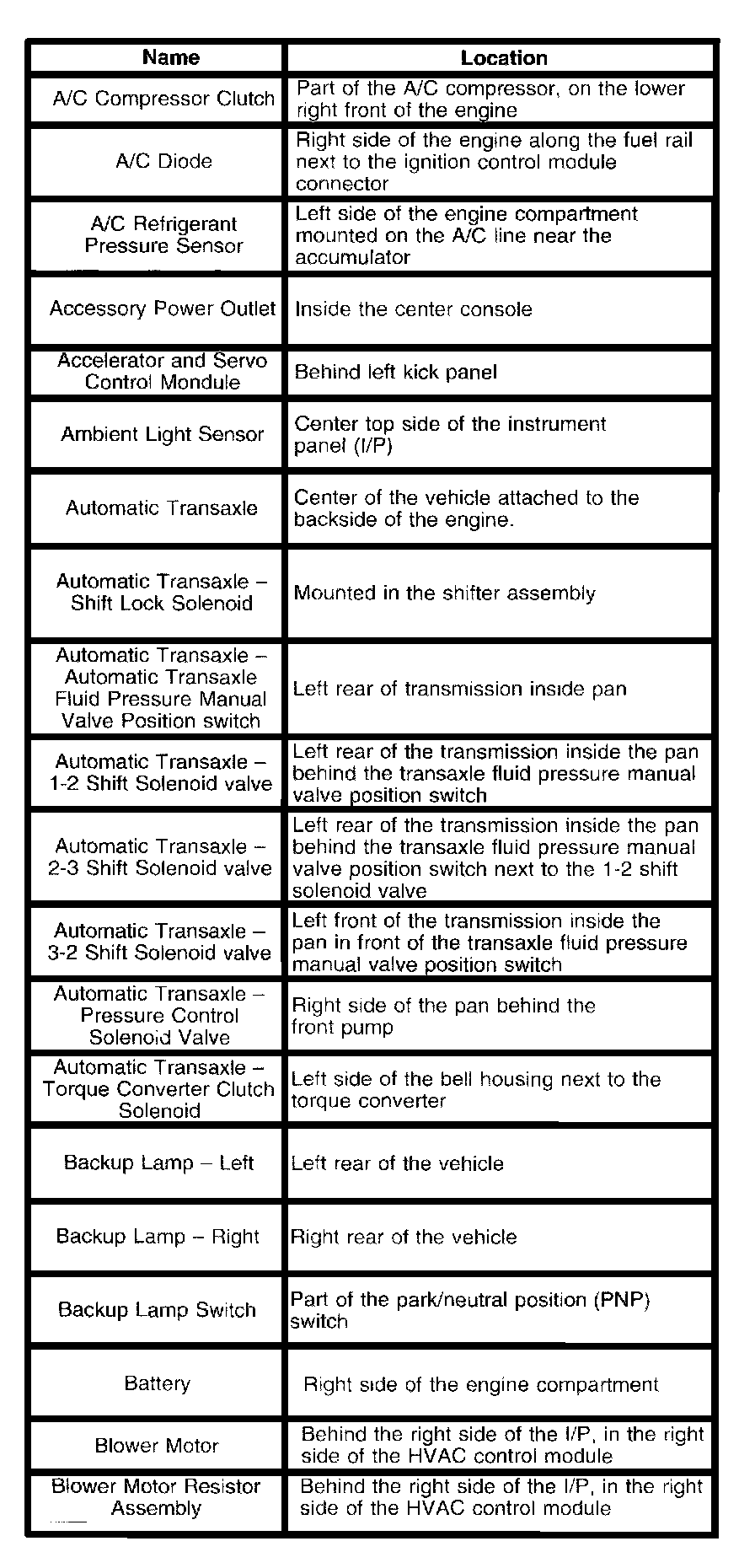

Master Electrical Component List (A/C - Bl):

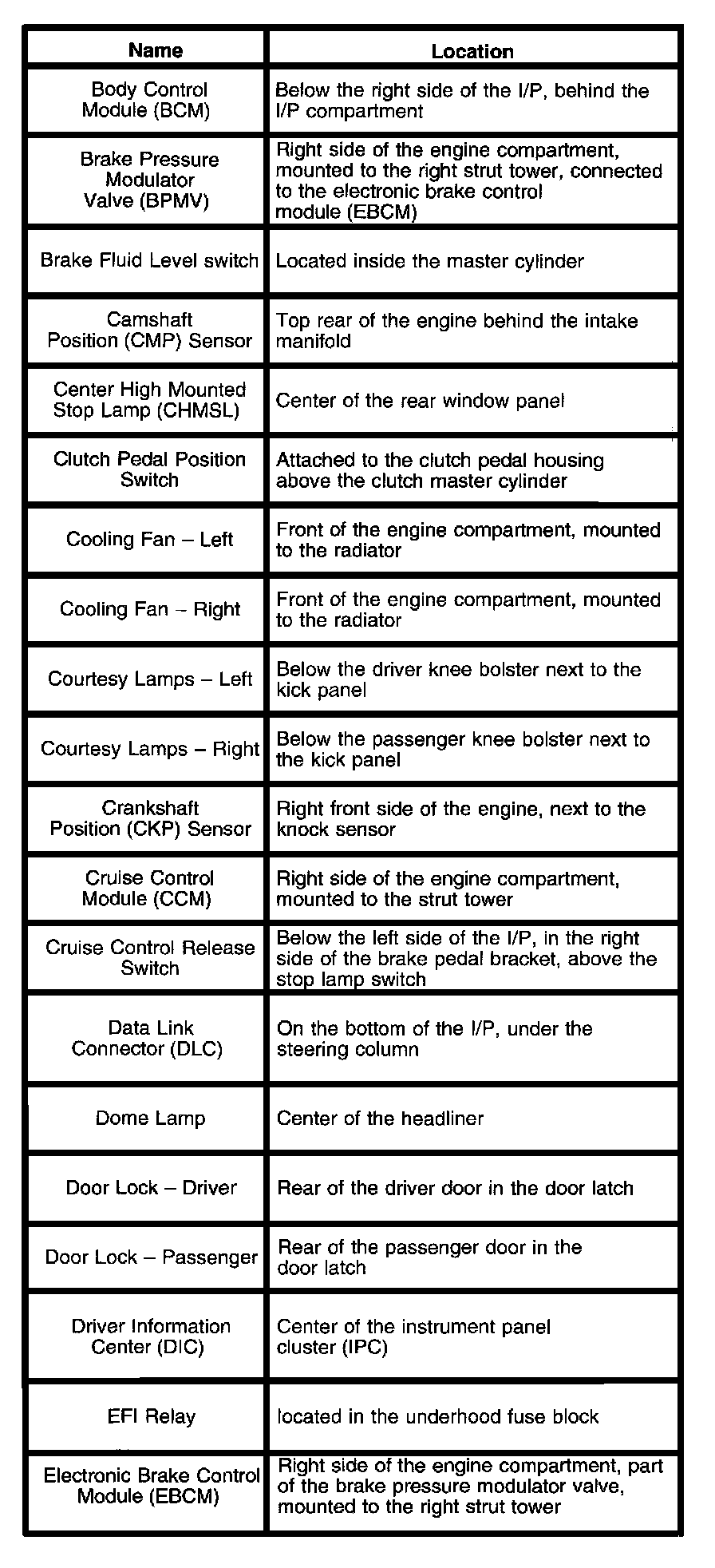

Master Electrical Component List (Bo - El):

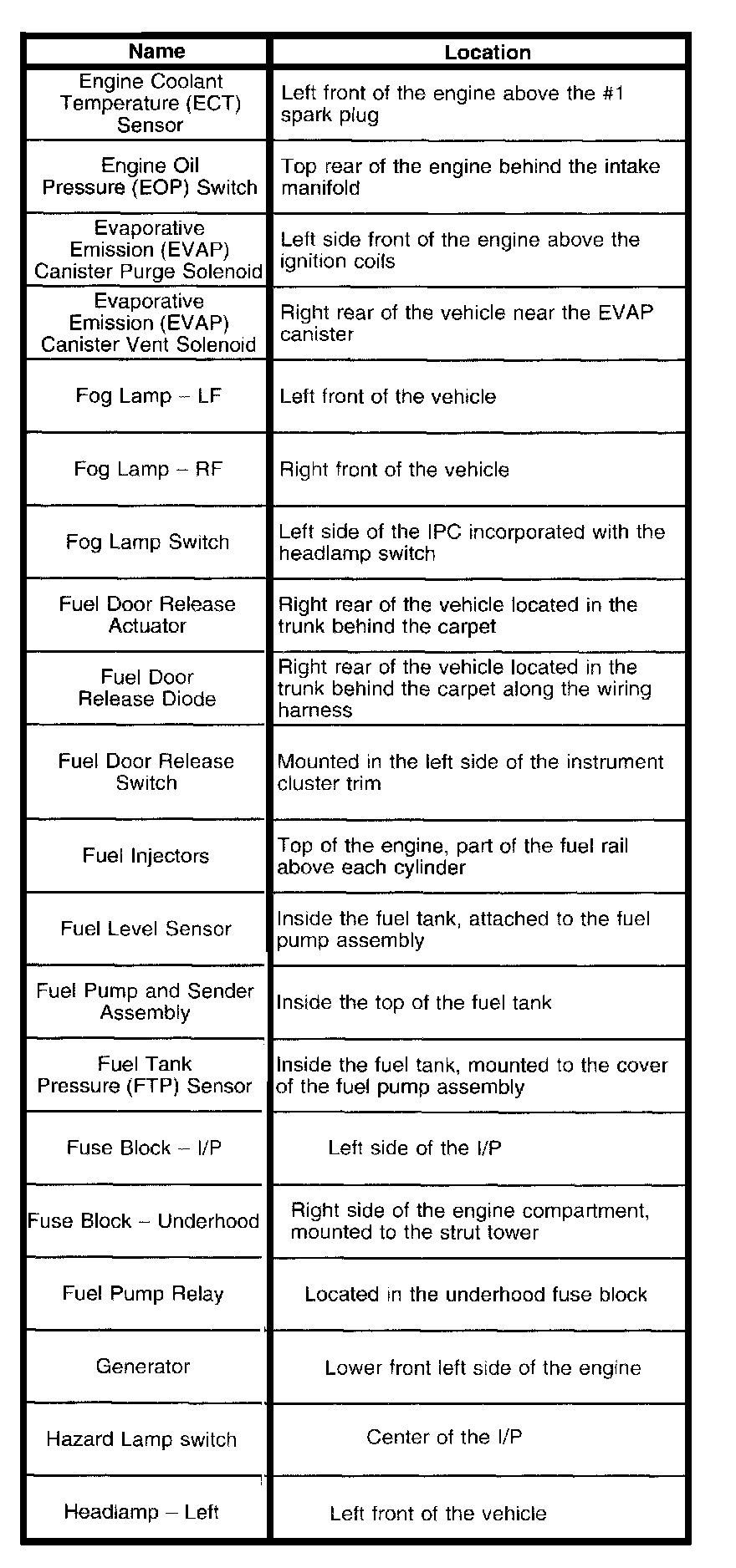

Master Electrical Component List (En - He):

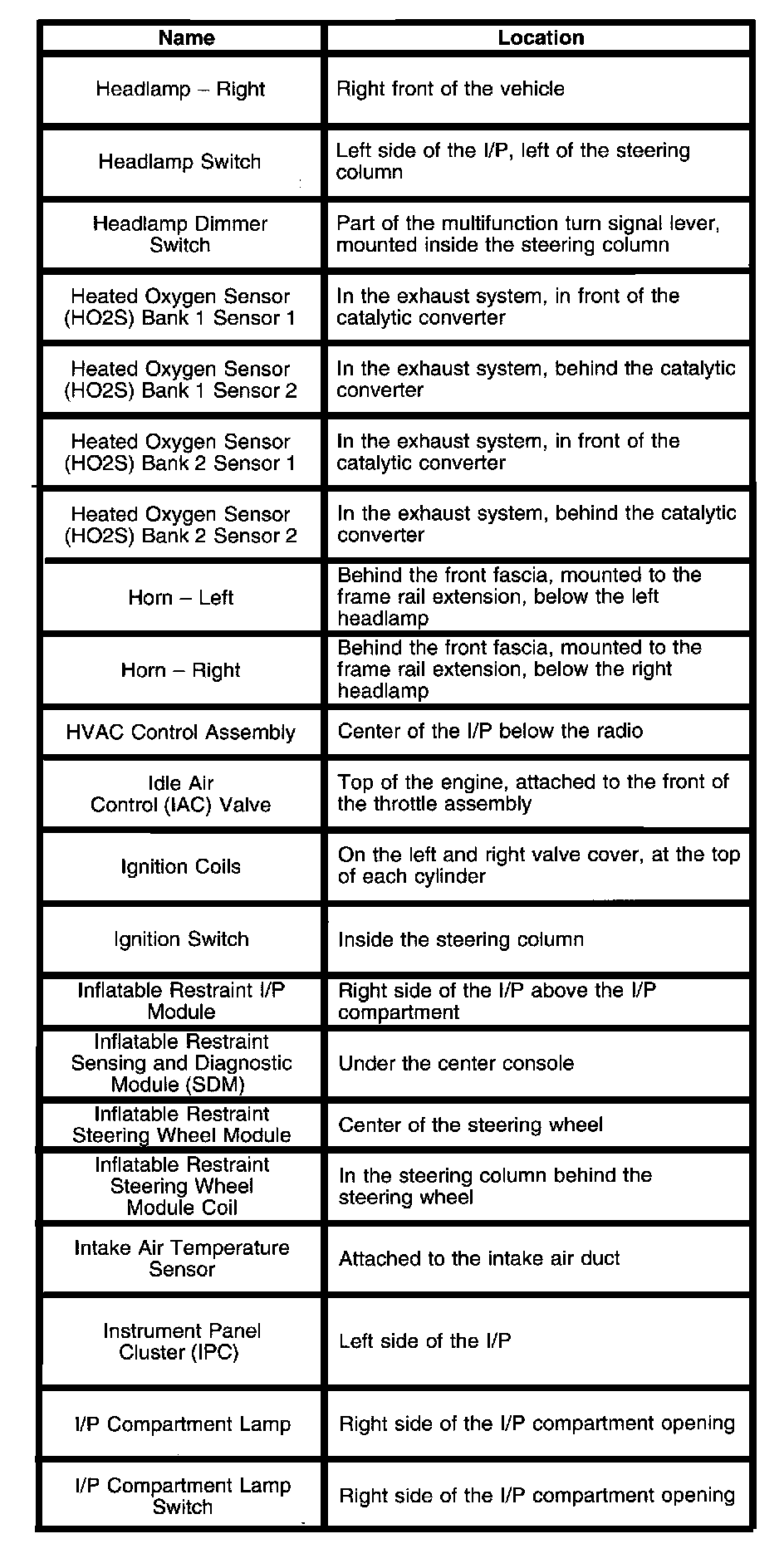

Master Electrical Component List (He - I/P):

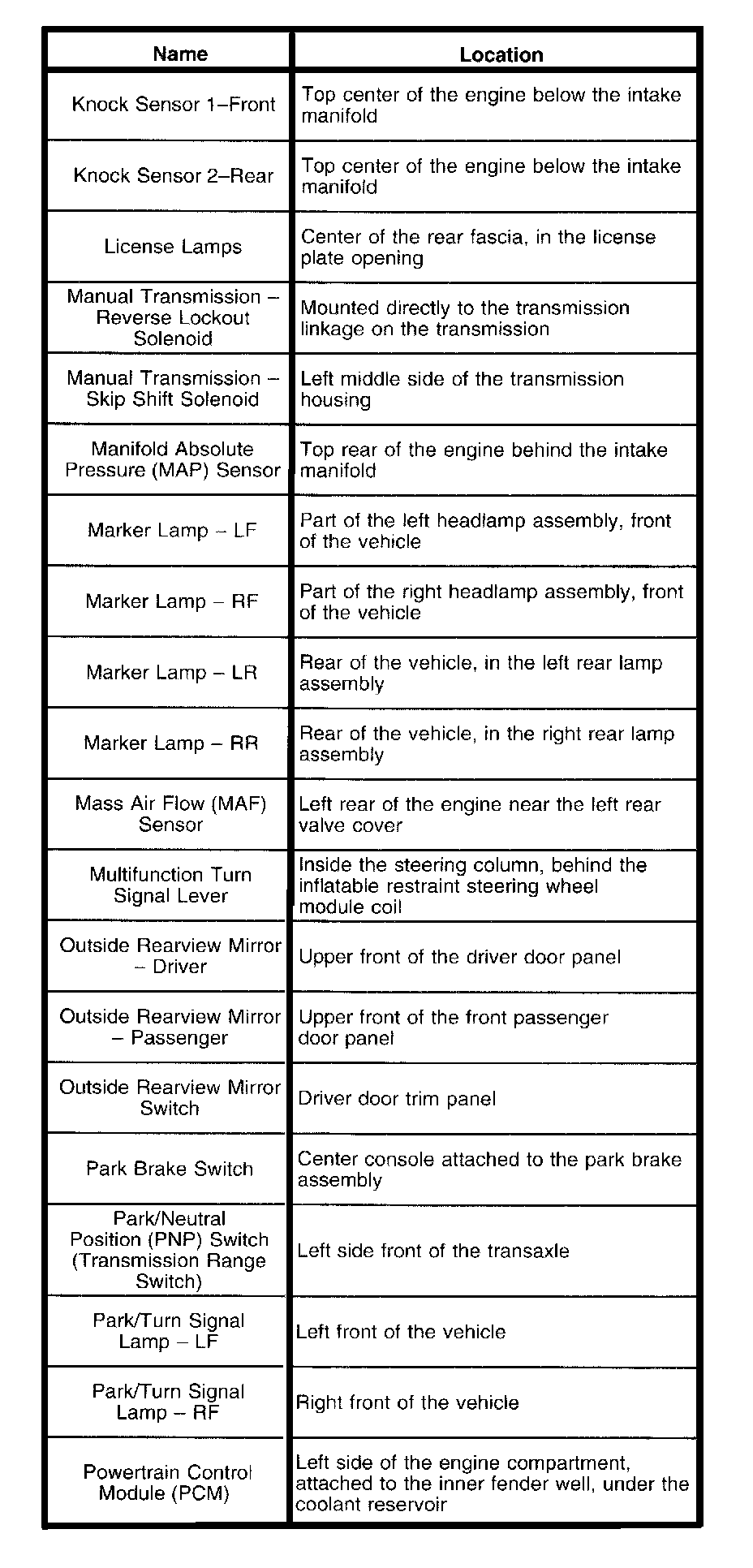

Master Electrical Component List (Kn - Po):

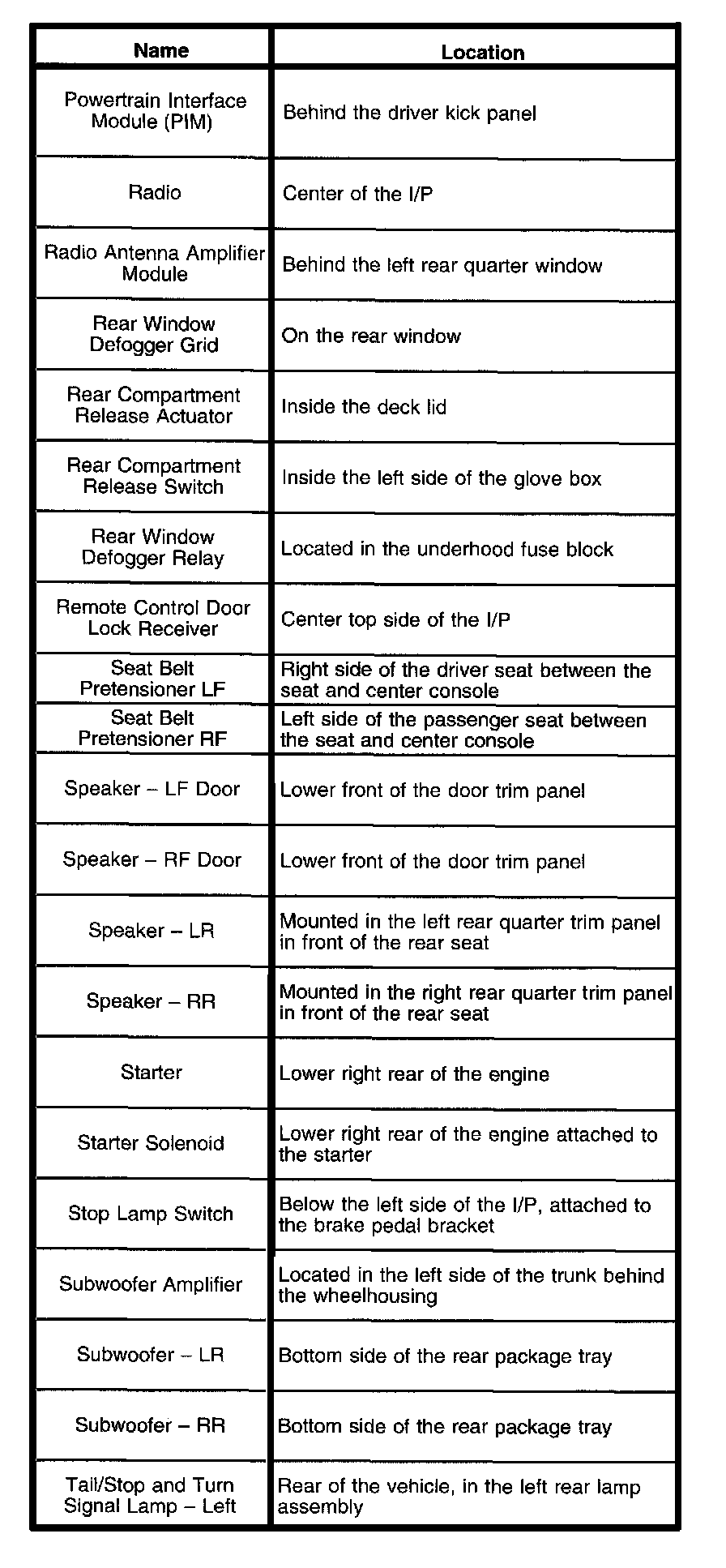

Master Electrical Component List (Po - Ta):

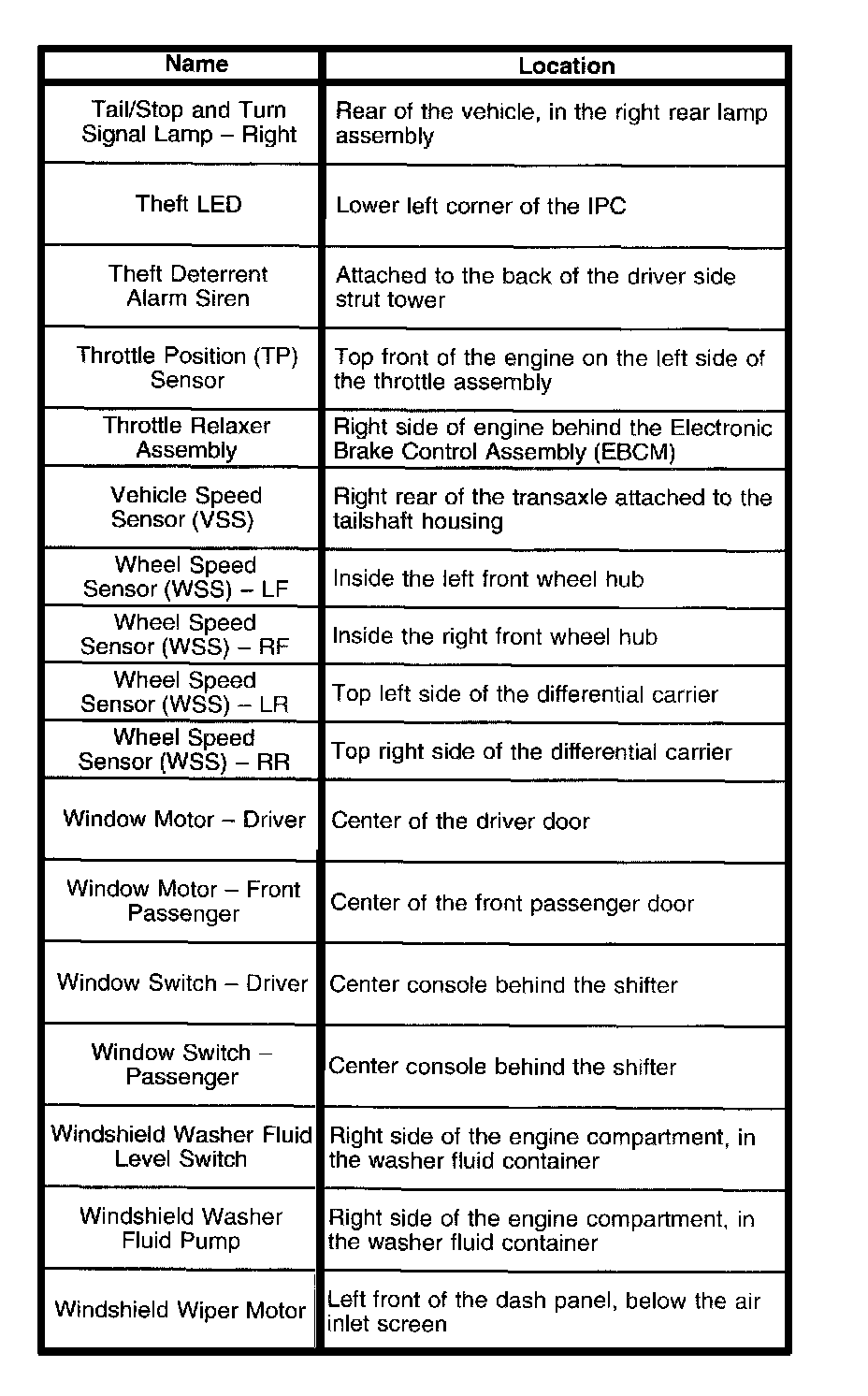

Master Electrical Component List (Ta - Wi):
