Control Assembly: Locations

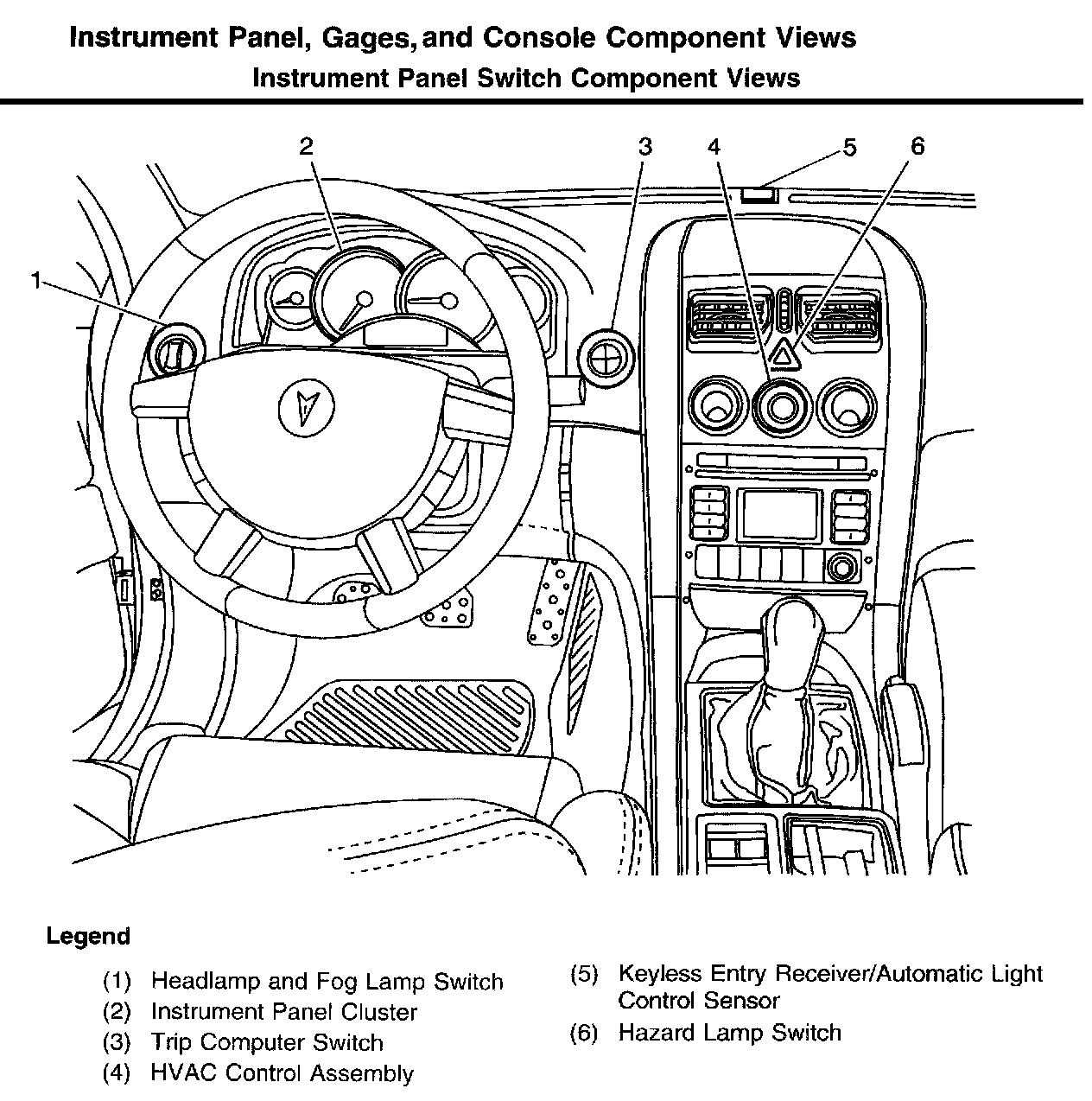

Instrument Panel Gauges, And Console Component Views:

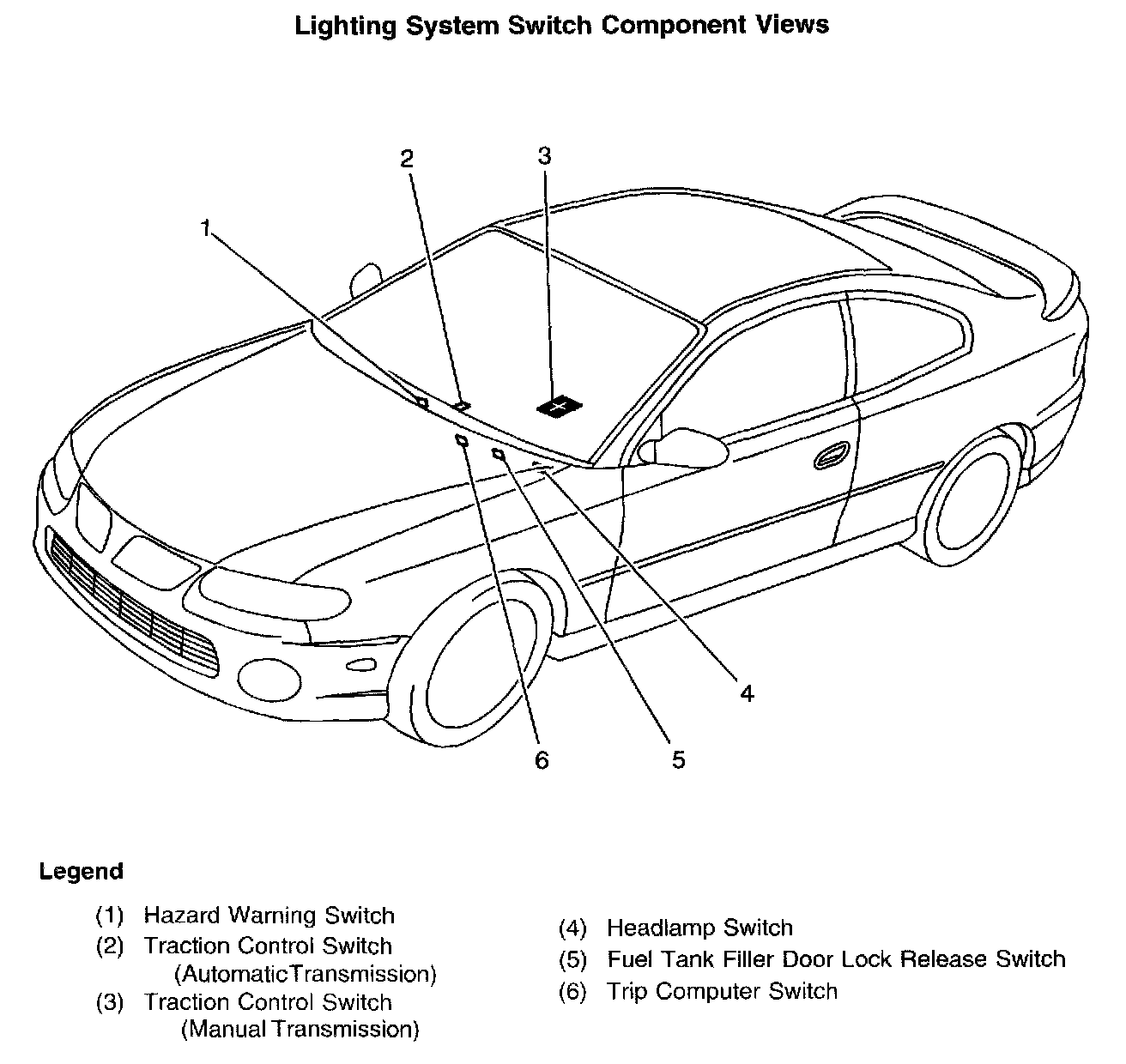

Lighting System Switch Component Views:
