Powertrain Control Module Power and Ground
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

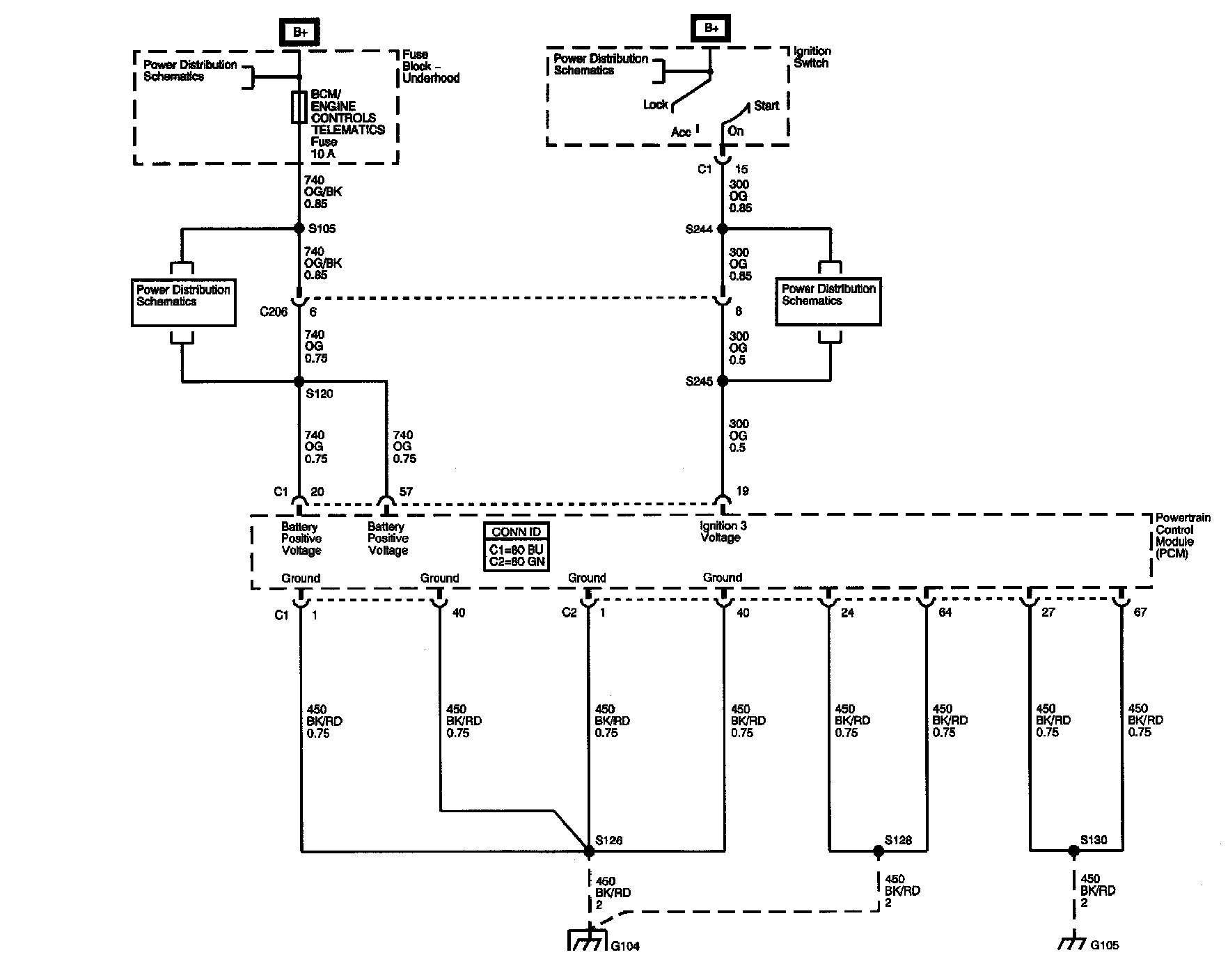

Powertrain Control Module Power and Ground
