Thread Repair Specifications

Thread Repair Specifications

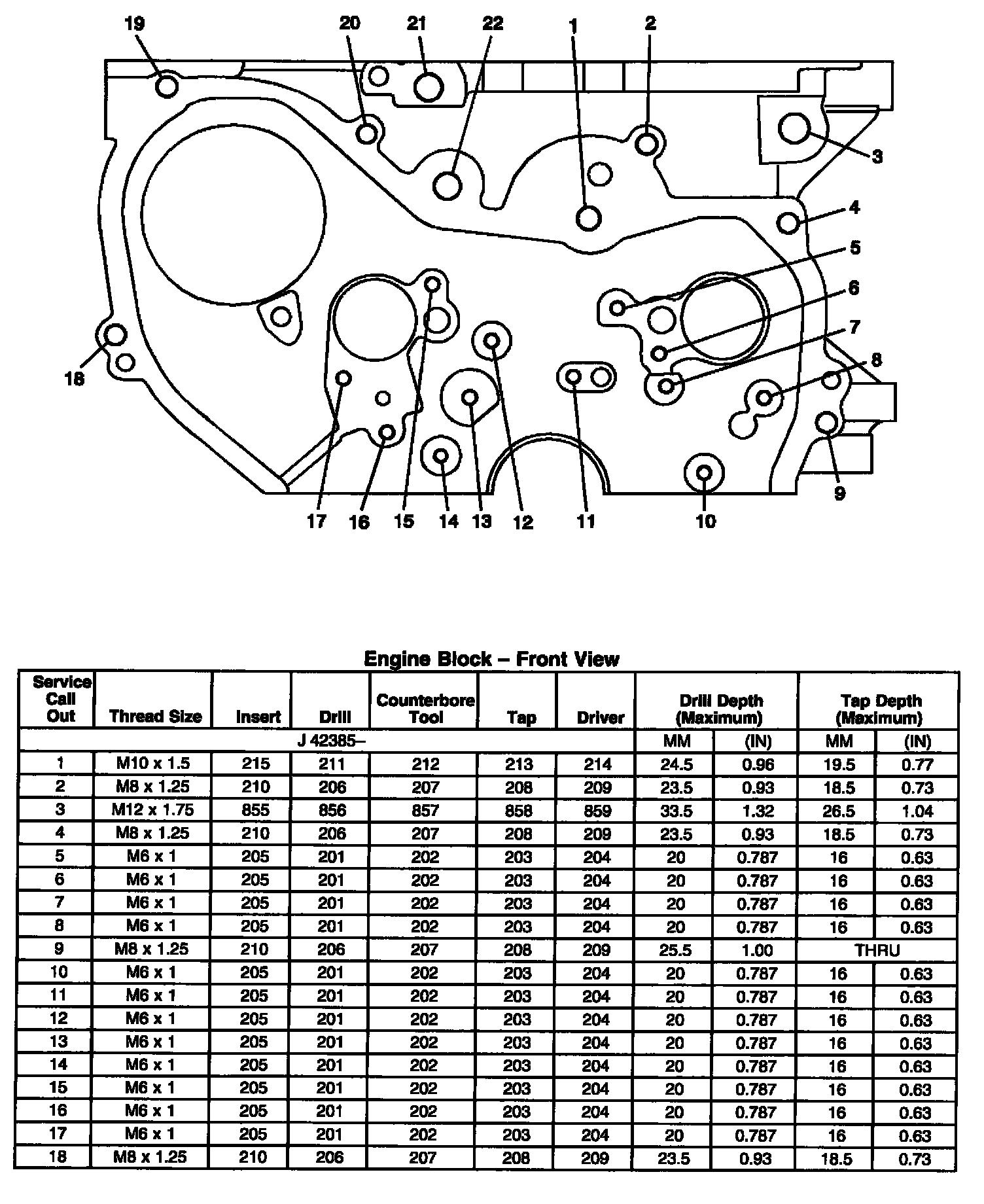

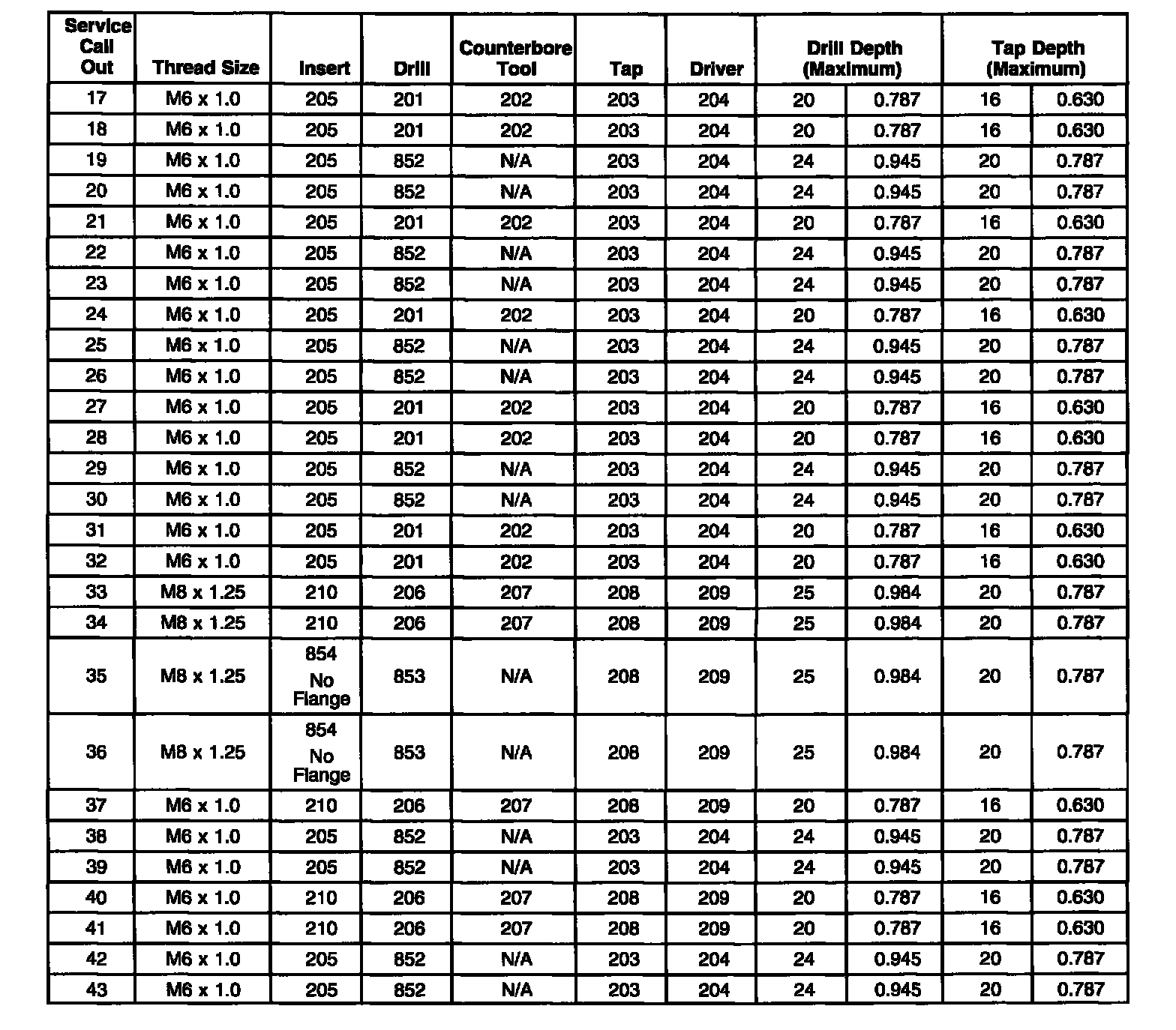

Engine Block - Front View

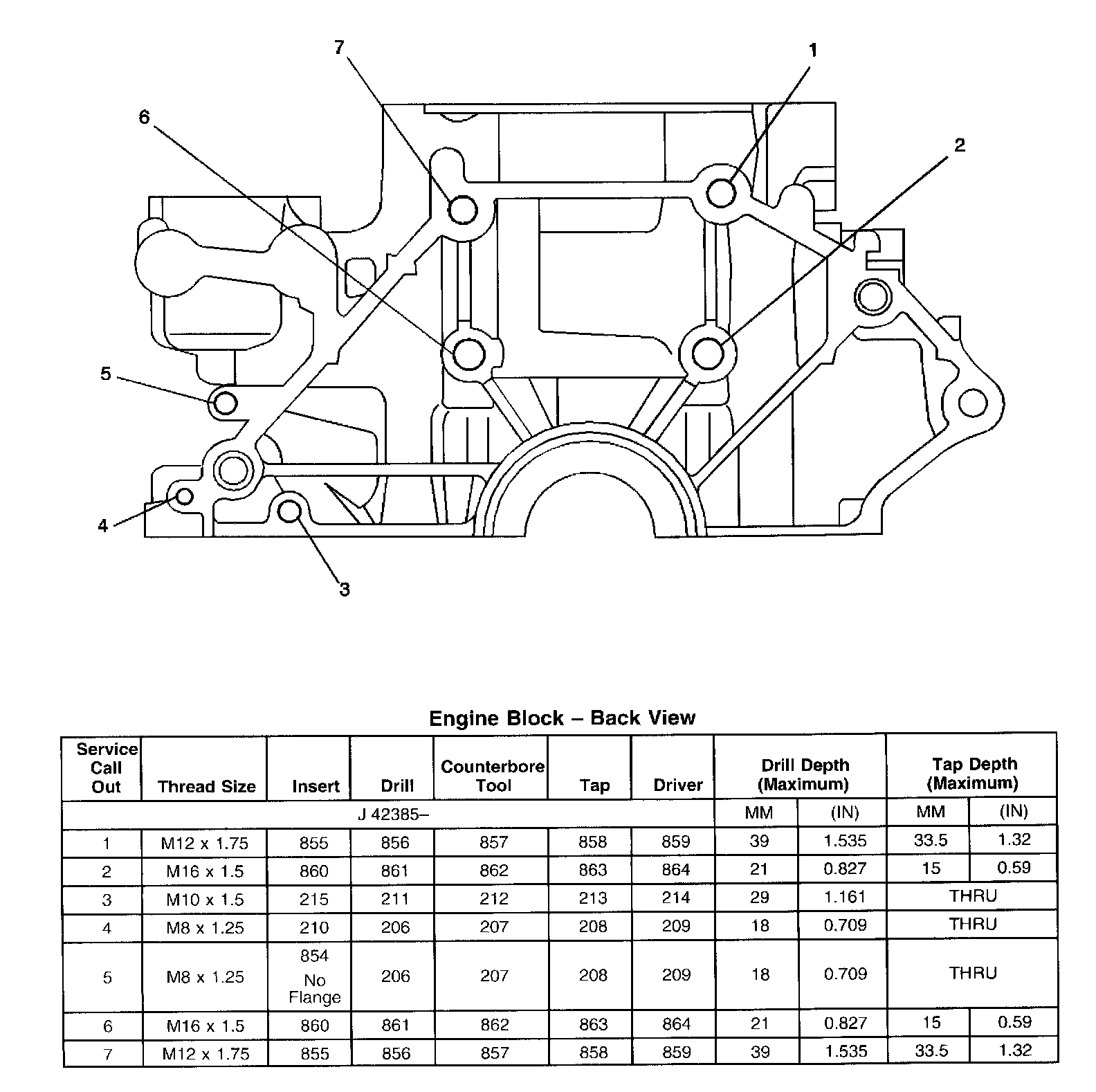

Engine Block - Back View





Engine Block - Left Side View

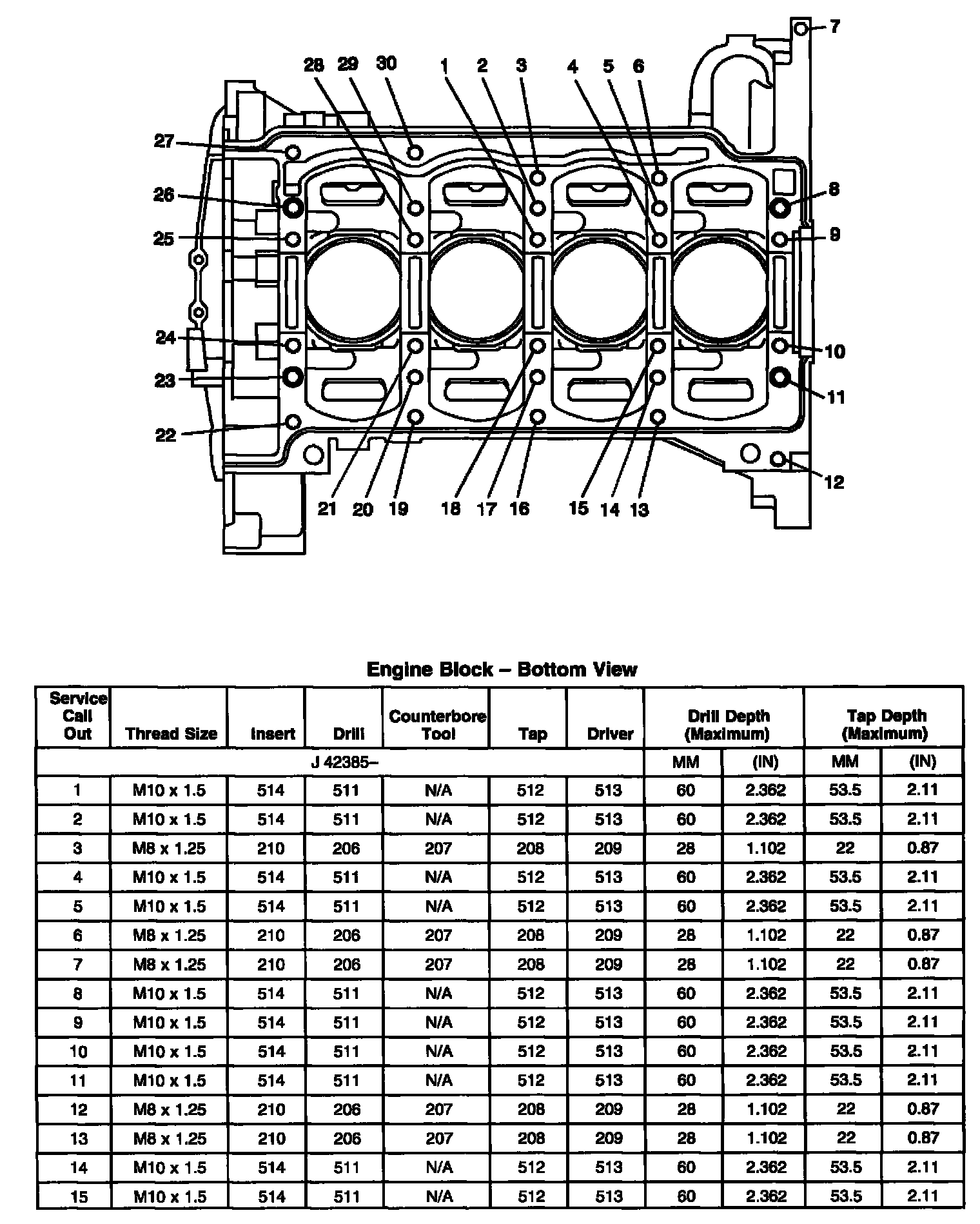

Engine Block - Bottom View

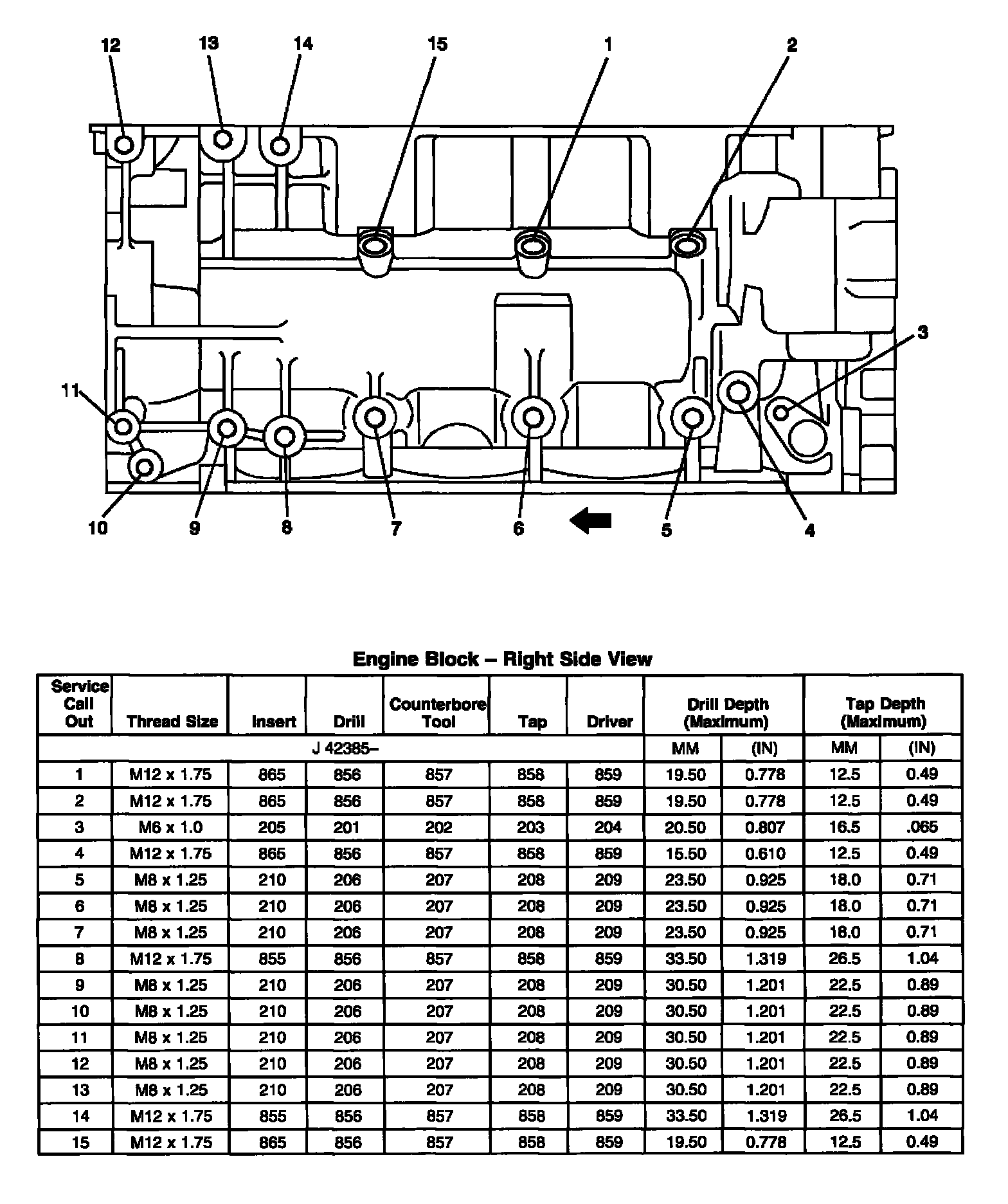

Engine Block - Right Side View

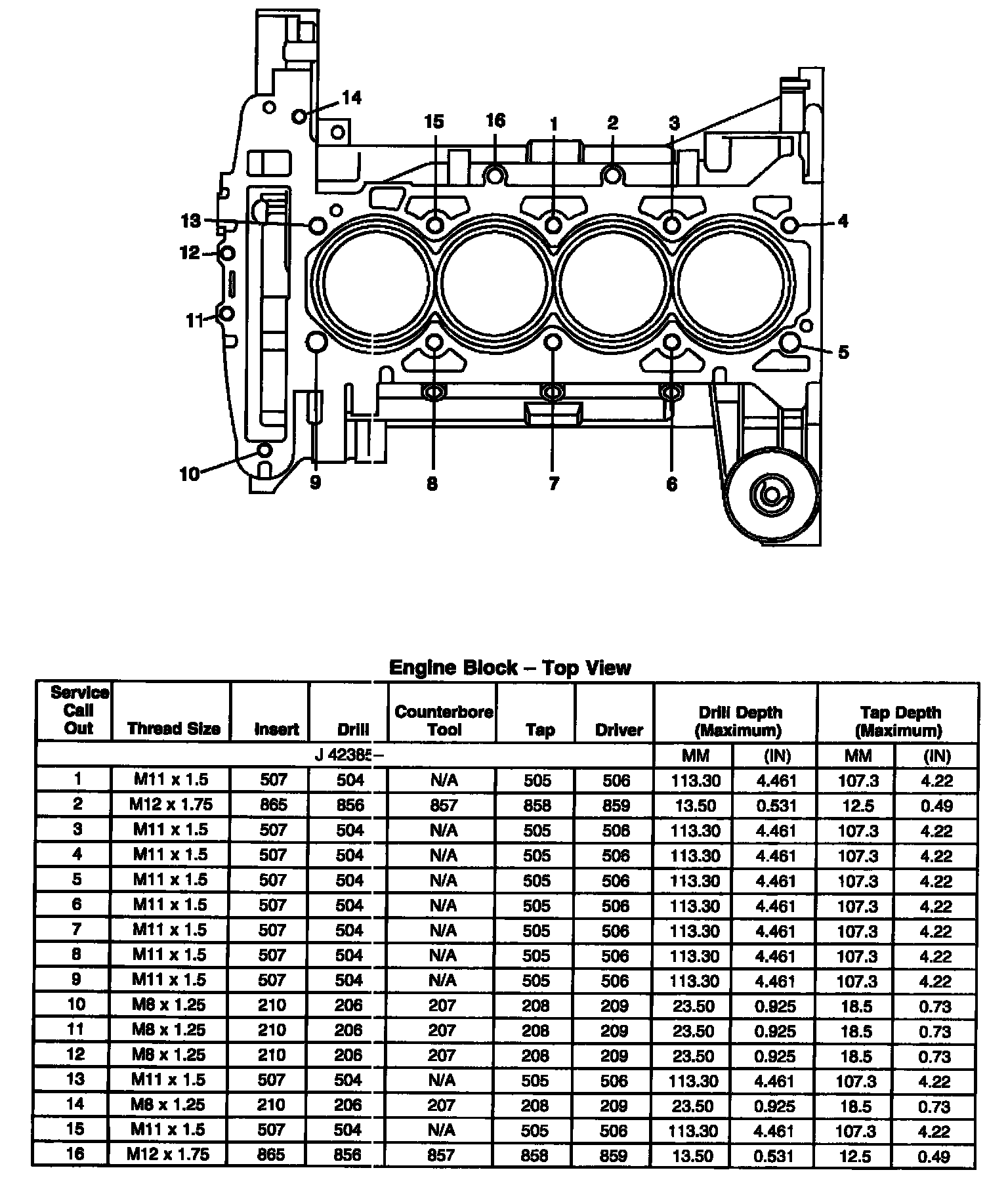

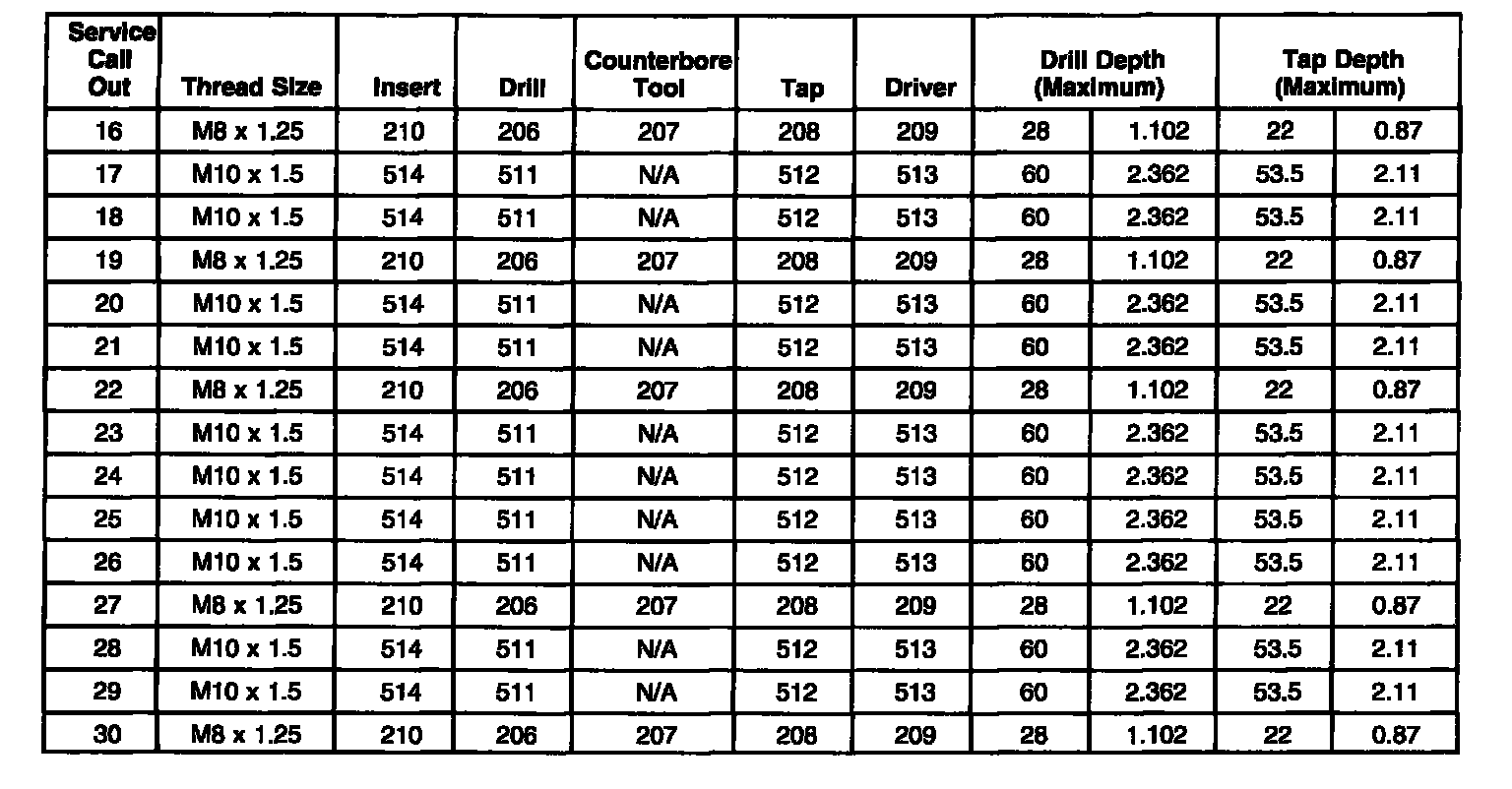

Engine Block - Top View

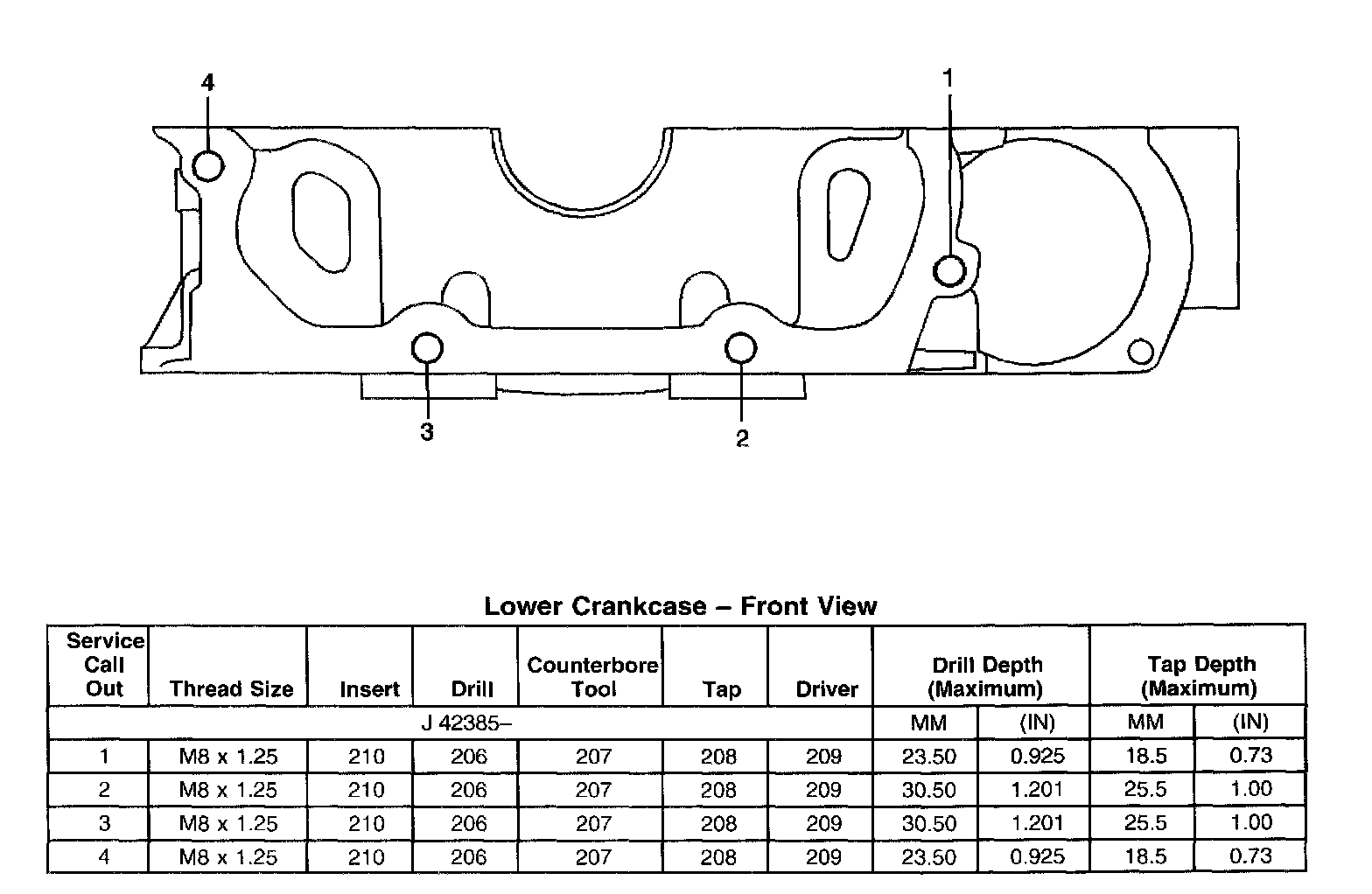

Lower Crankcase - Front View

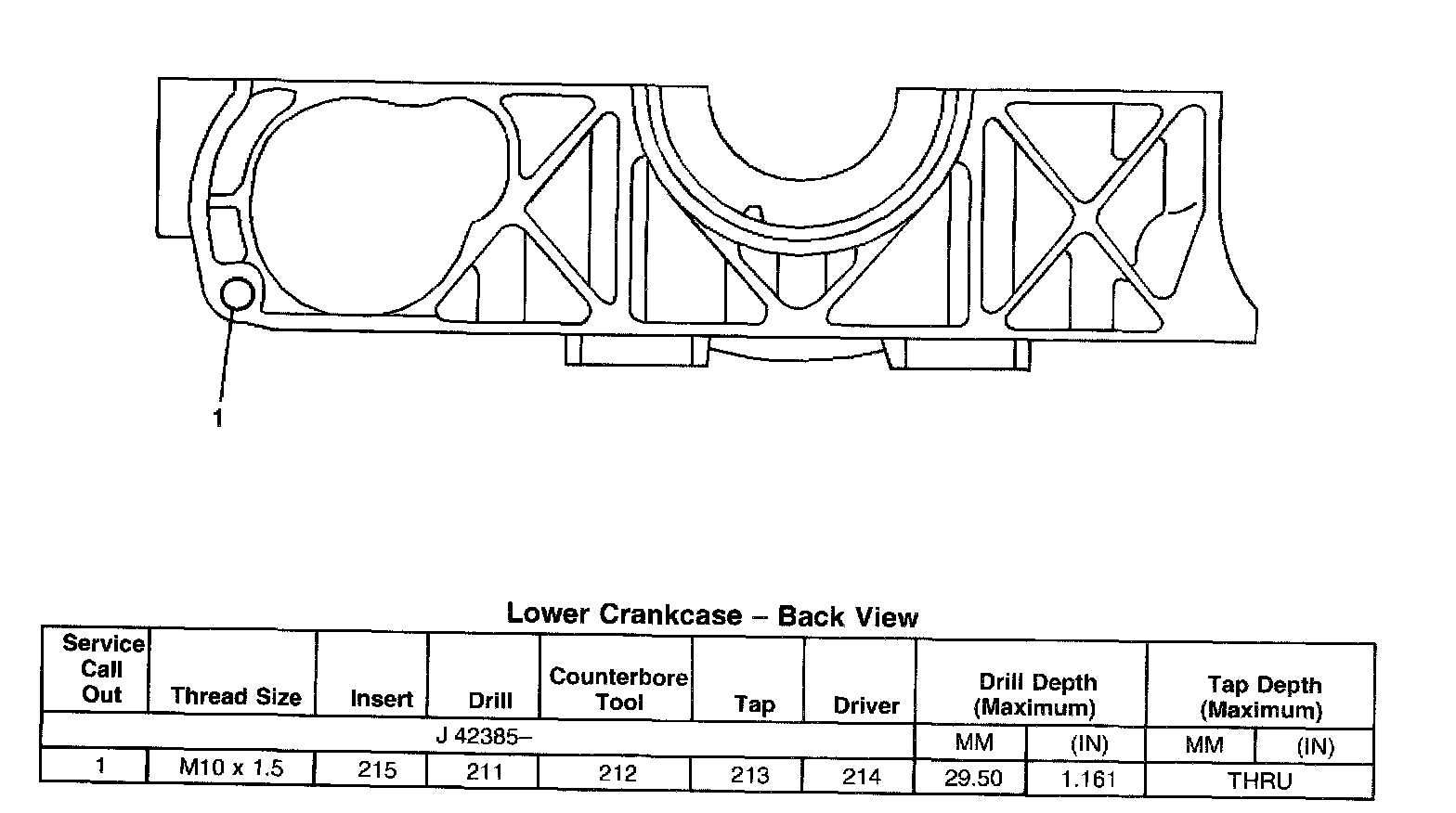

Lower Crankcase - Back View

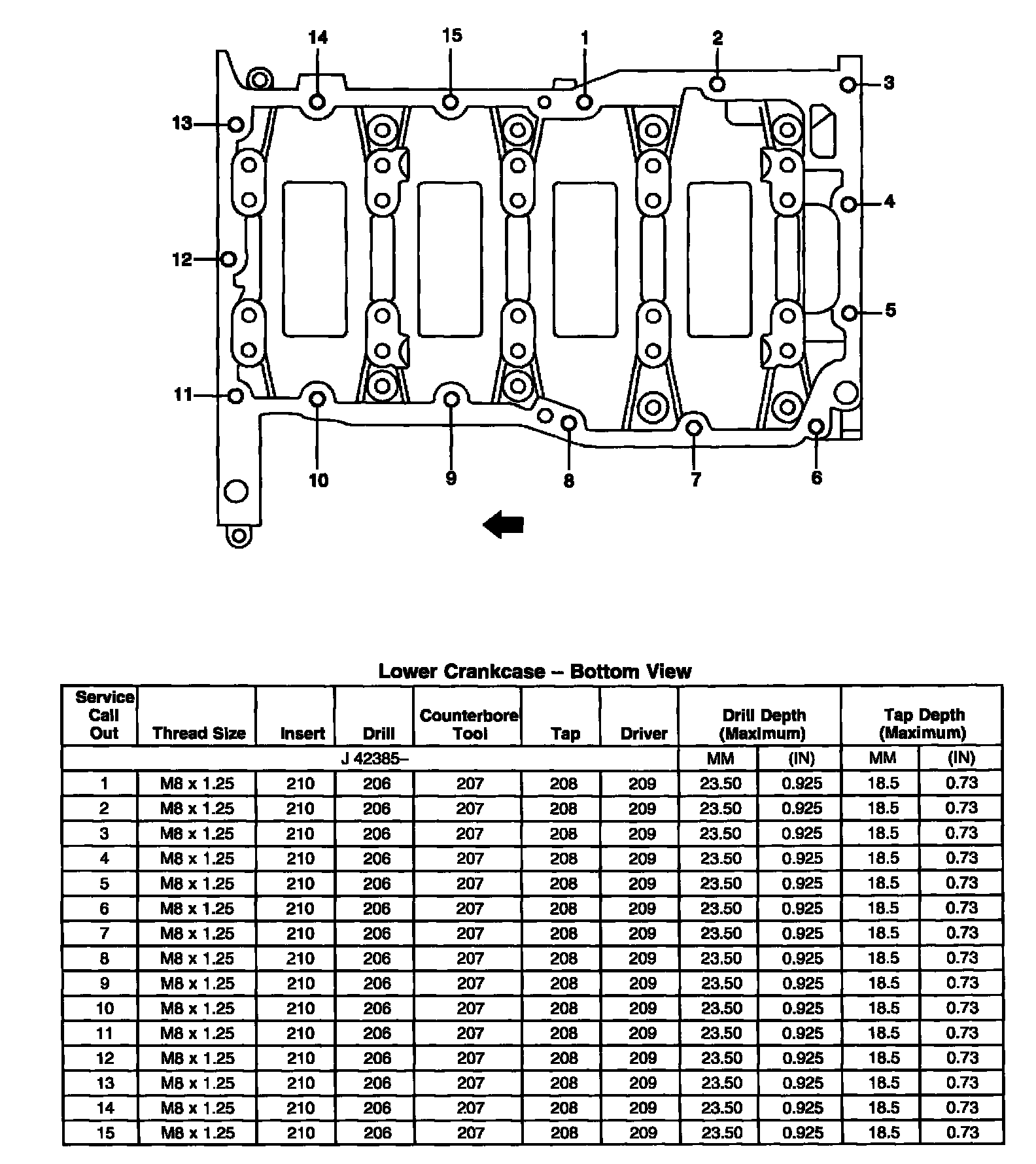

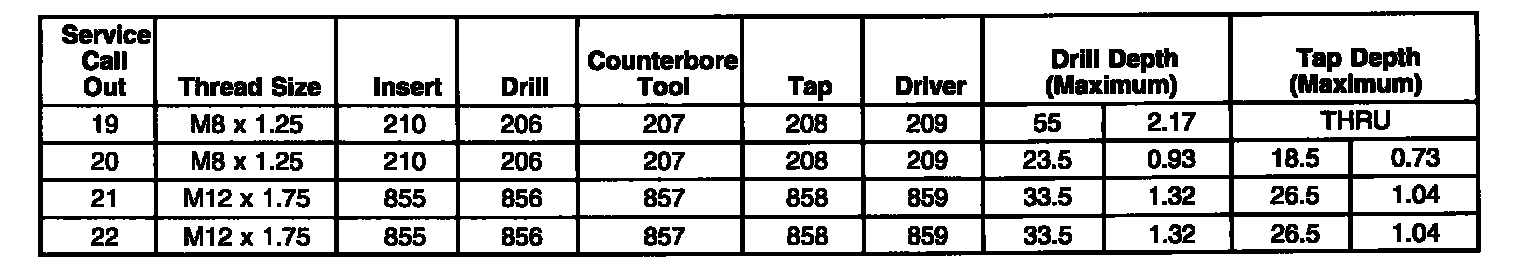

Lower Crankcase - Bottom View

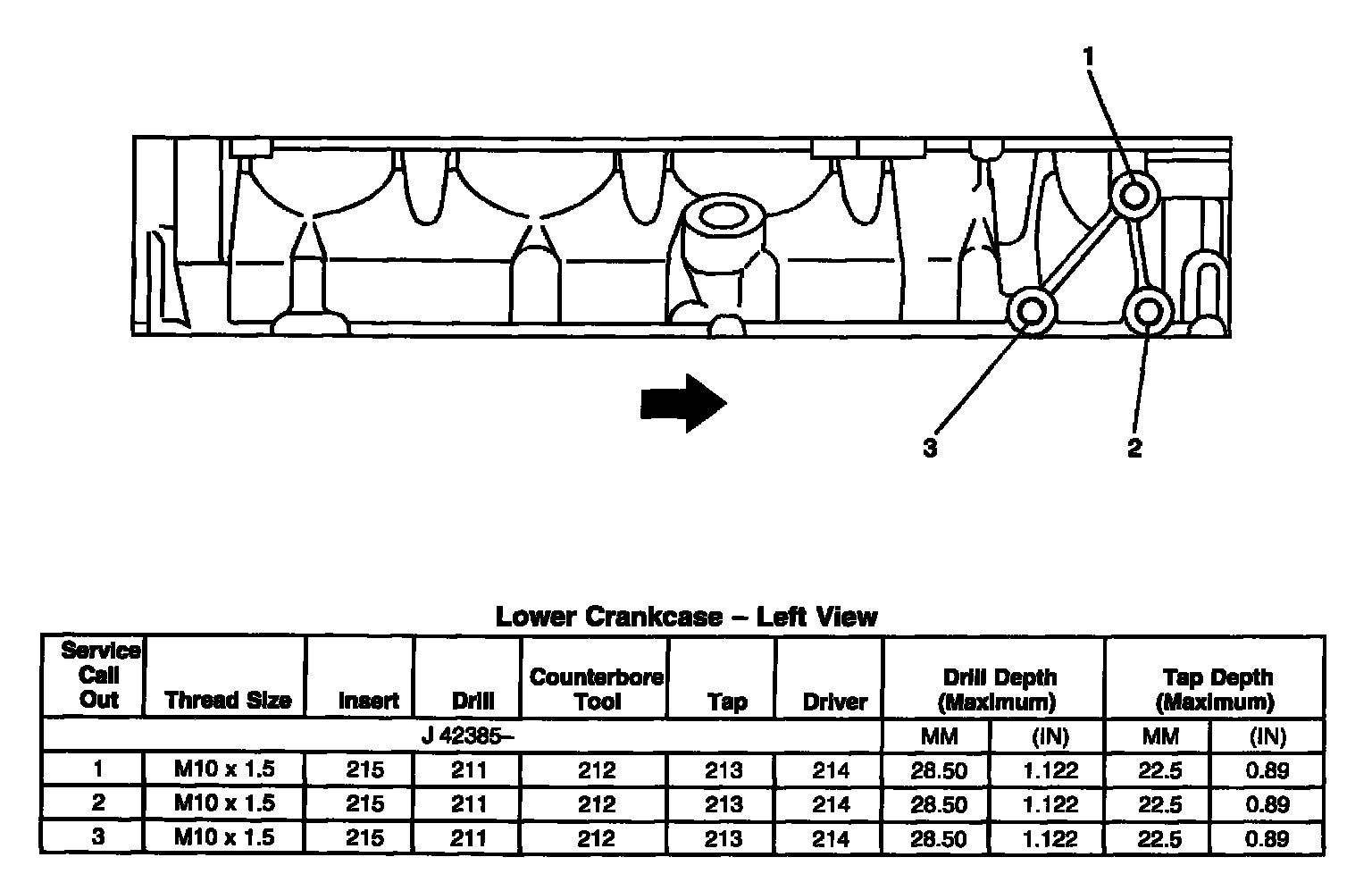

Lower Crankcase - Left View

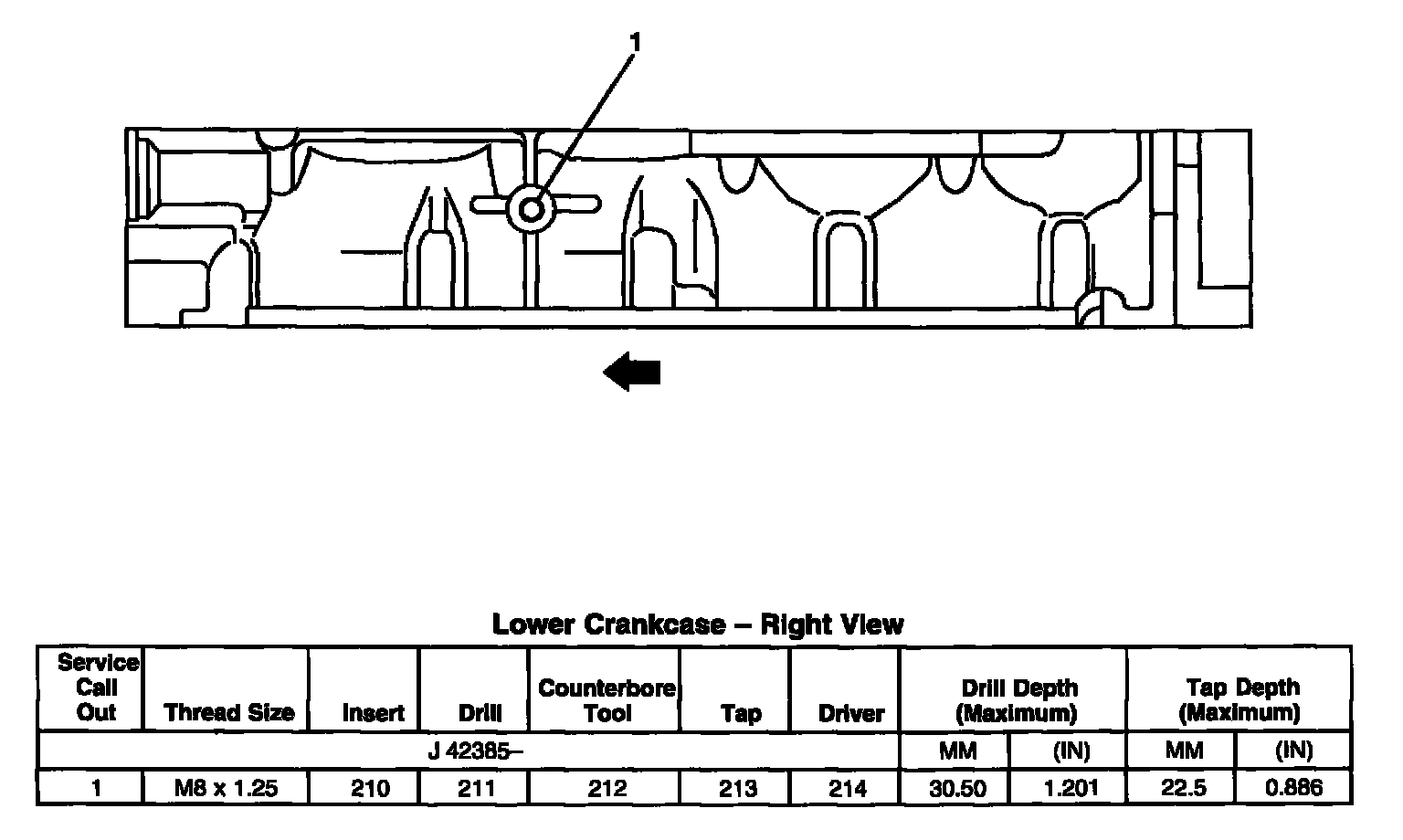

Lower Crankcase - Right View

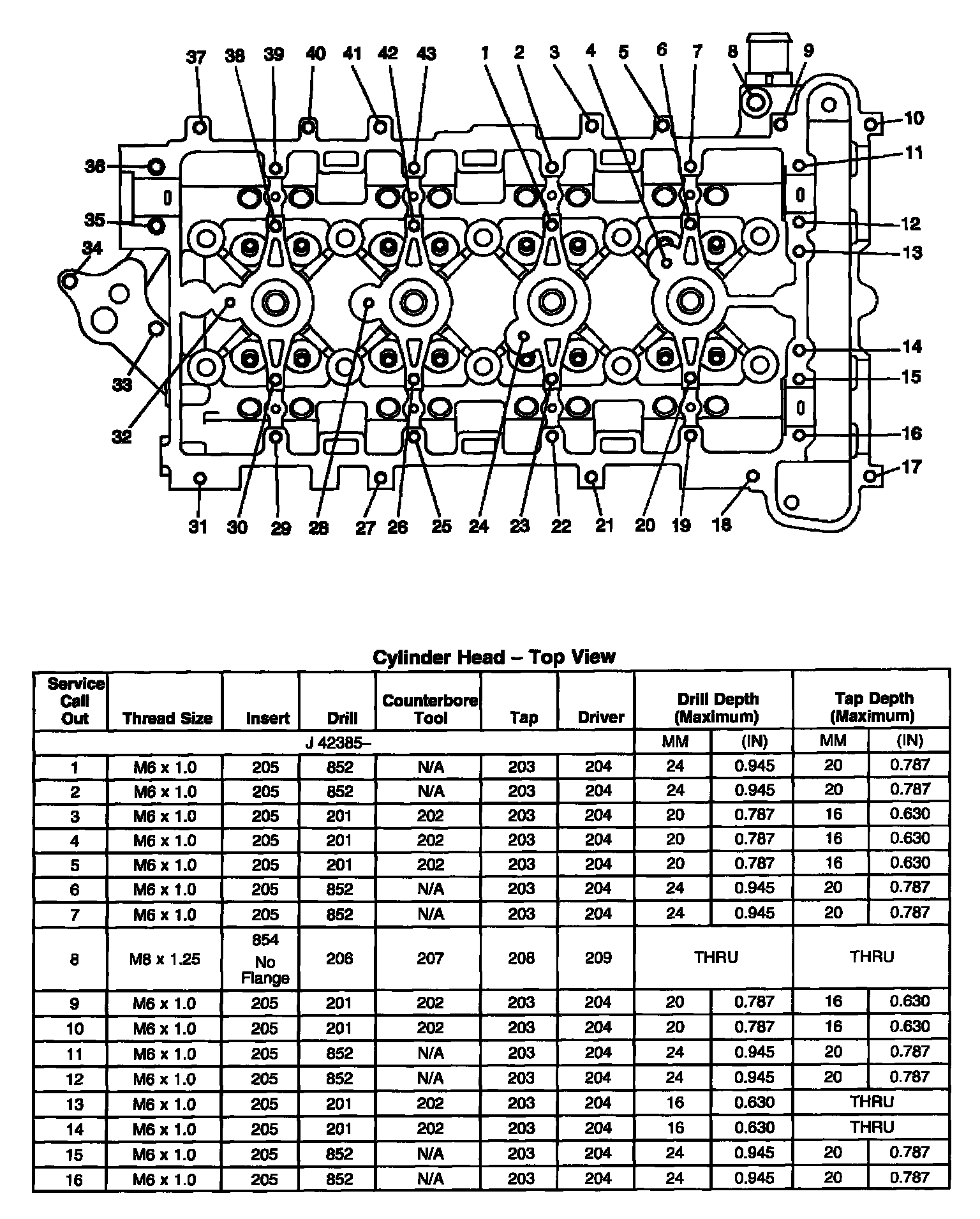

Cylinder Head - Top View

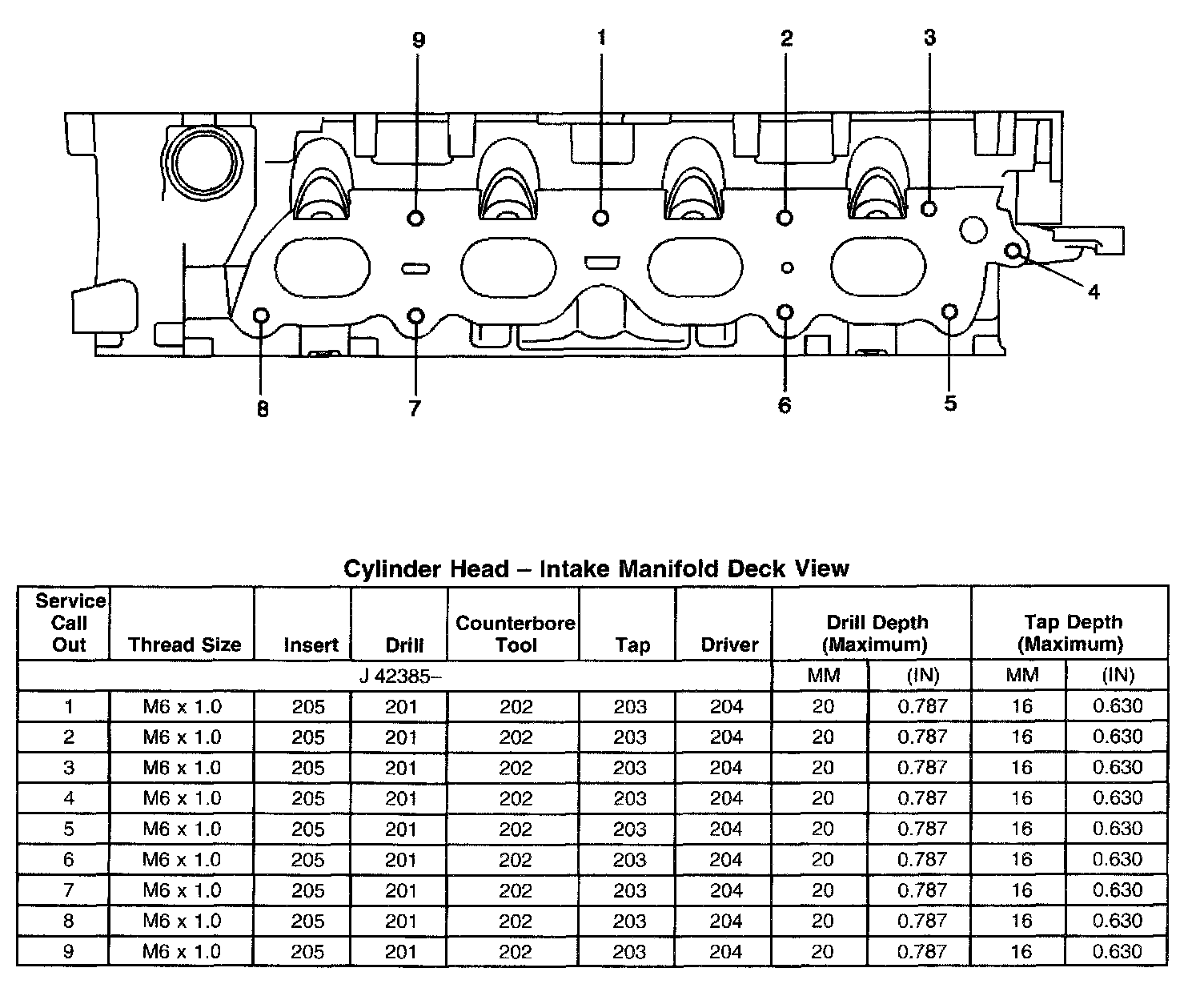

Cylinder Head - Intake Manifold Deck View

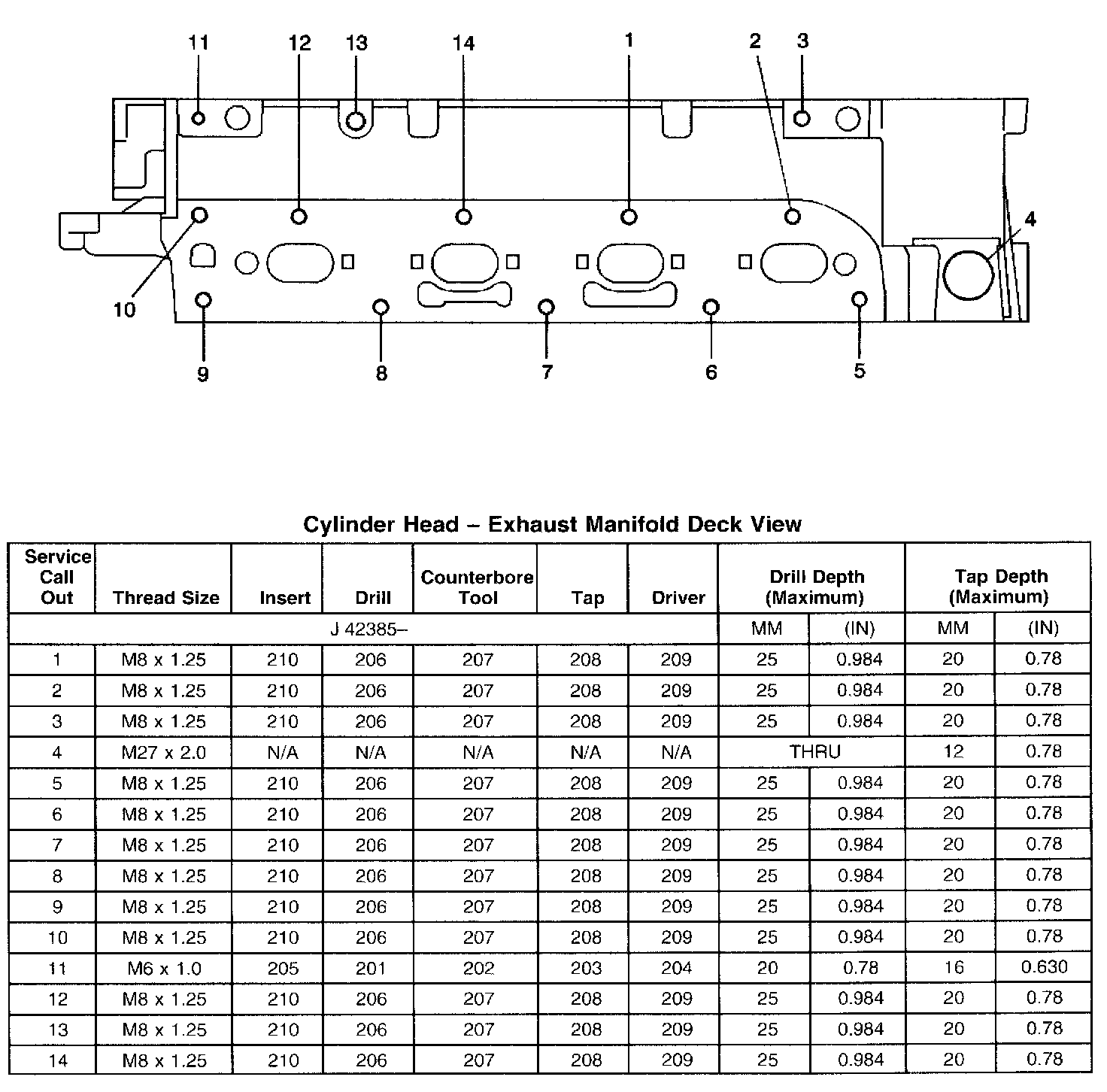

Cylinder Head - Exhaust Manifold Deck View

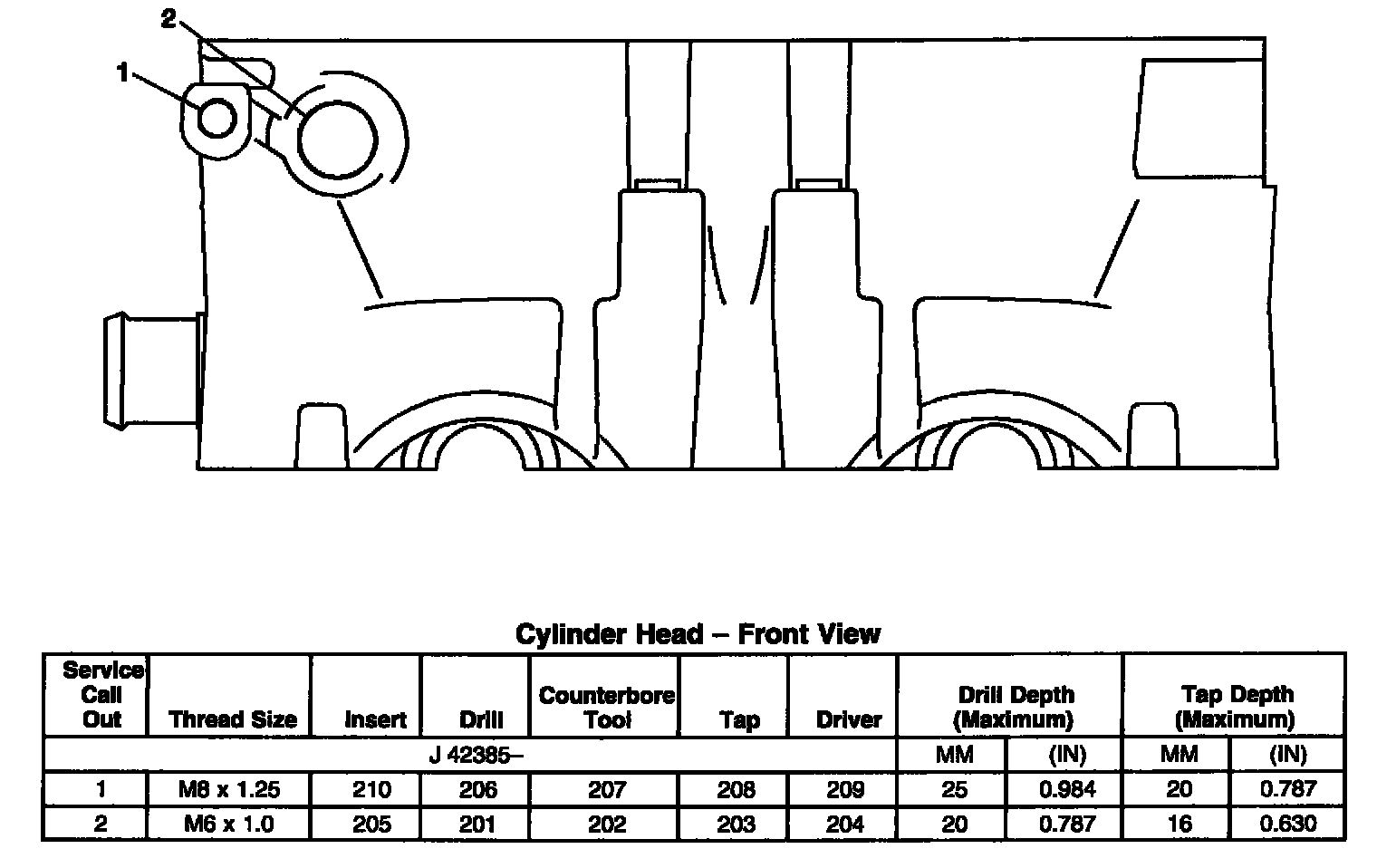

Cylinder Head - Front View

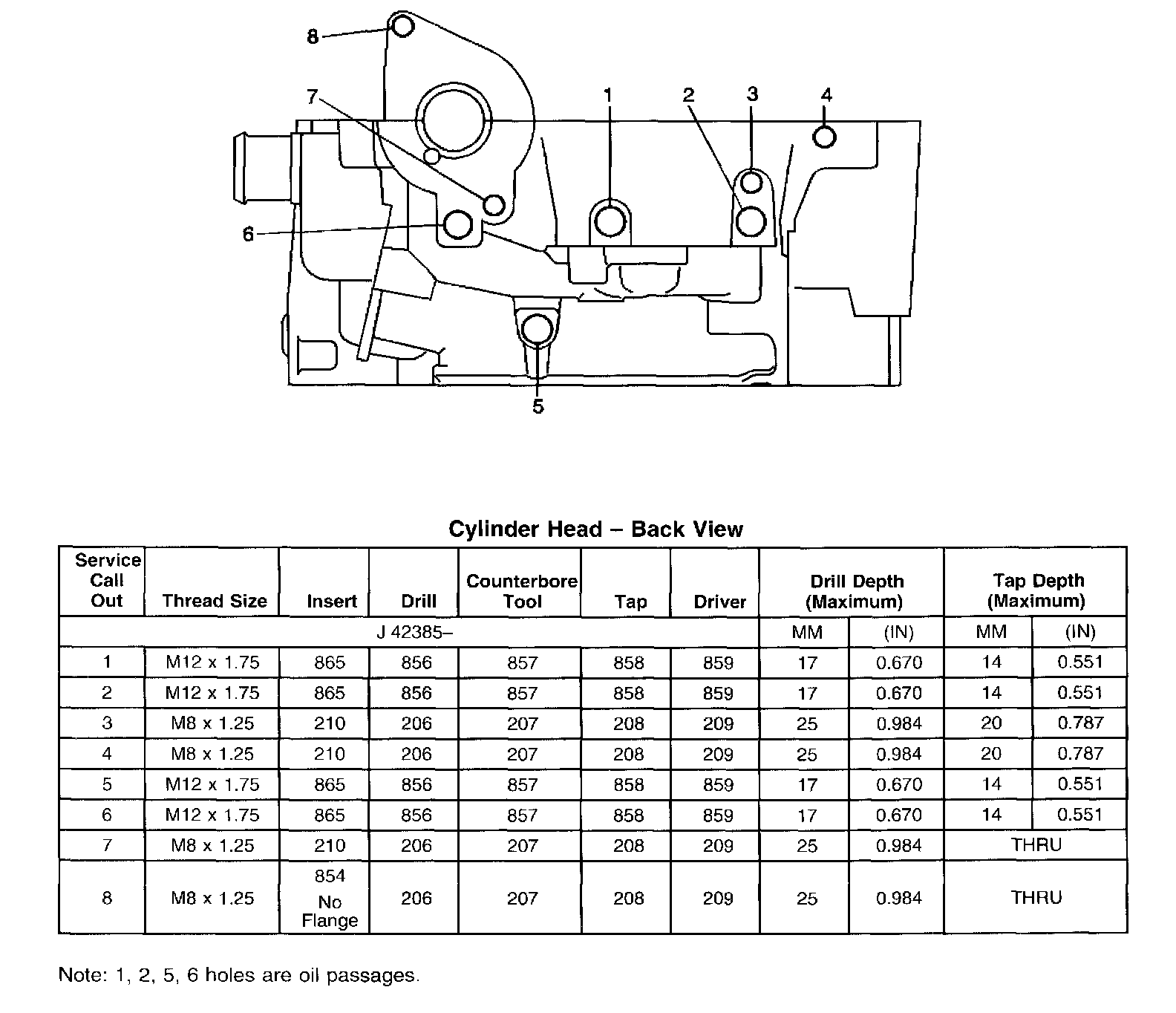

Cylinder Head - Back View

Note: 1, 2, 5, 6 holes are oil passages.

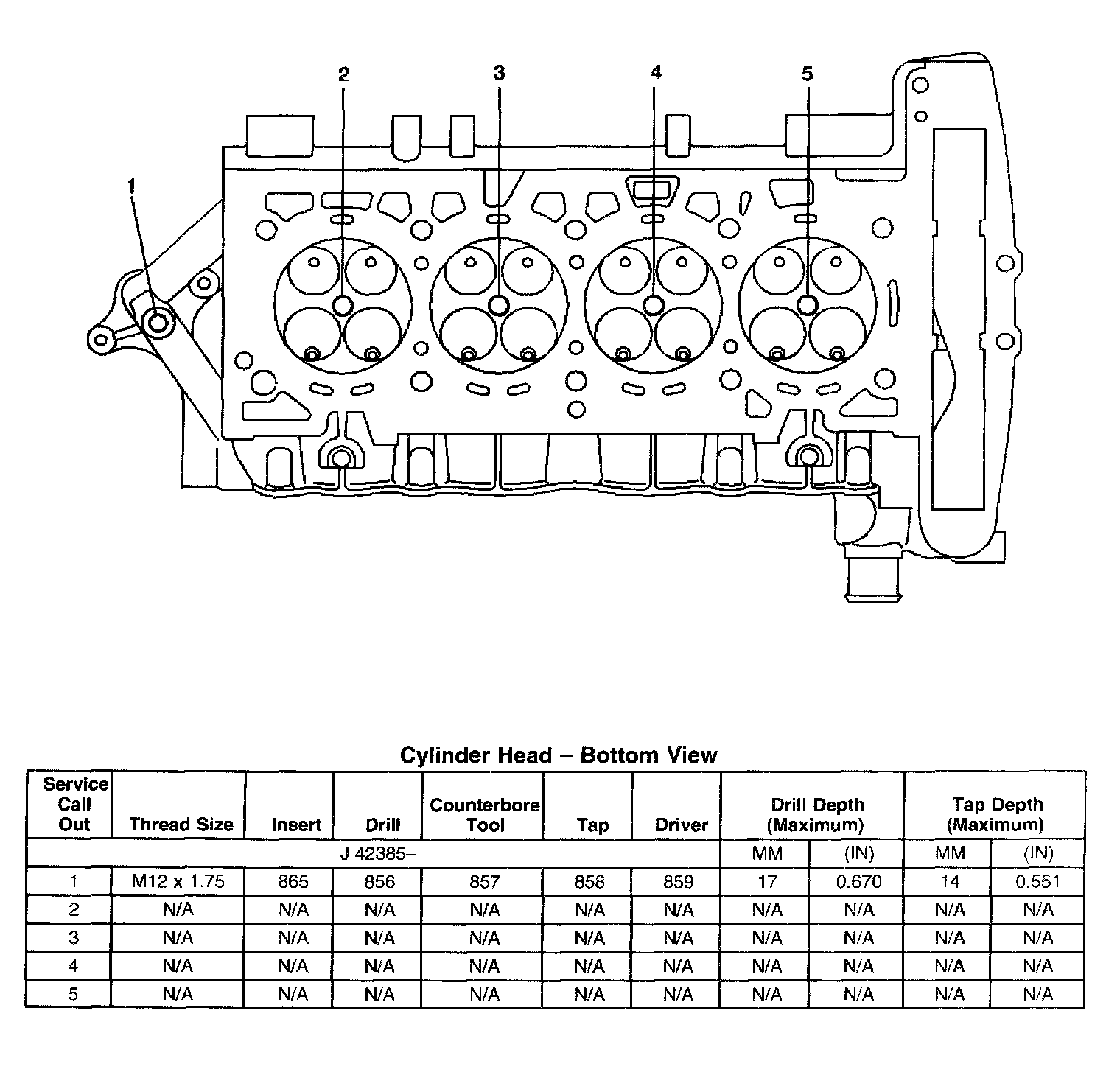

Cylinder Head - Bottom View
