Power Door Systems Component Views

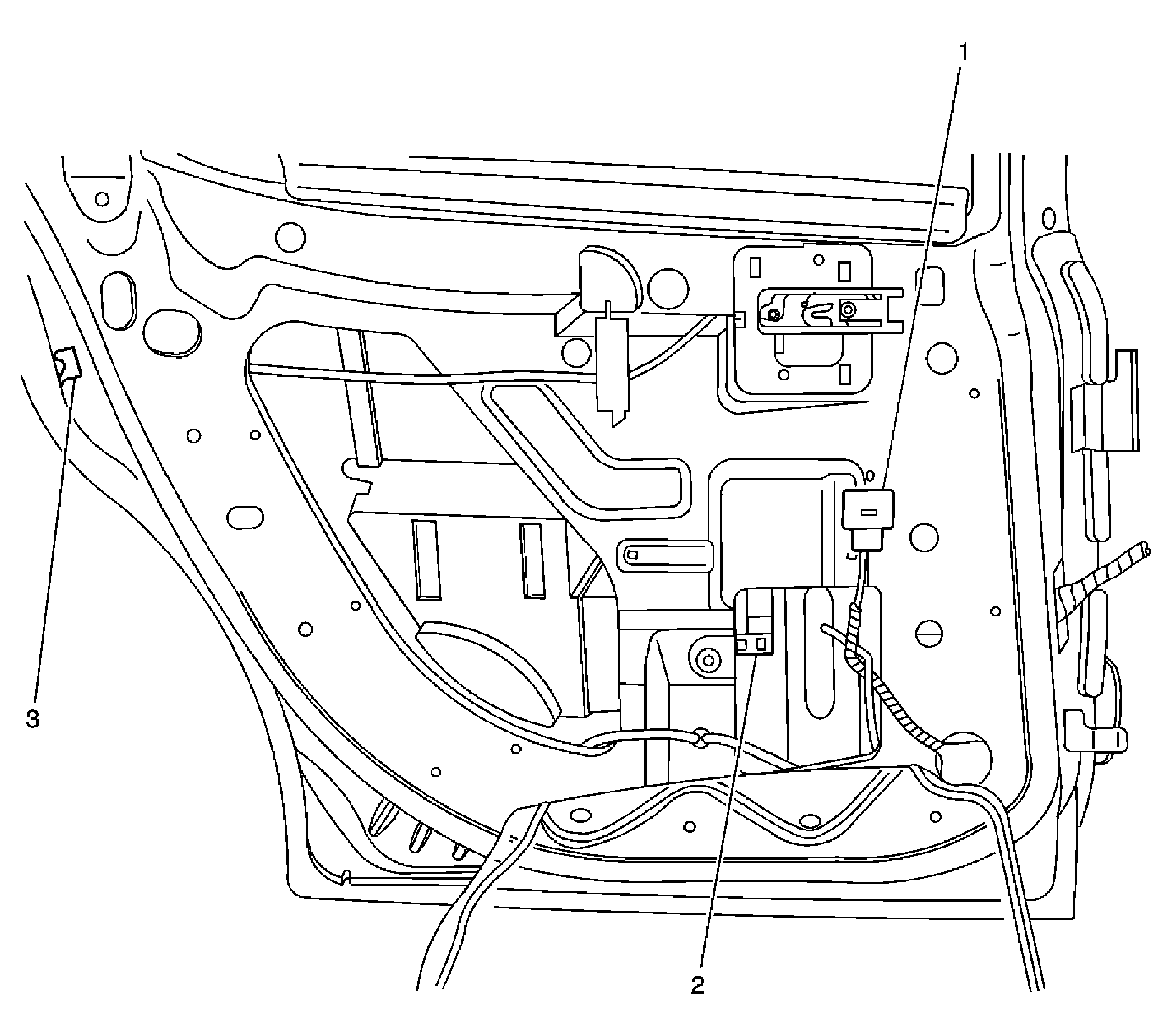

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Door Lock - Driver |
| 2 |
Inflatable Restraint Side Impact Sensor - Left (AY1) |
| 3 |
Window Motor - Driver |
| 4 |
Outside Rearview Mirror - Driver |
| 5 |
Speaker - LF Door |
| 6 |
C303 |
| 7 |
S305 |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Outside Rearview Mirror Switch |
| 2 |
Window Switch - Driver |
| 3 |
Door Lock Switch - Driver |
| 4 |
C303 |
| 5 |
Speaker - LF Door Tweeter Connector |
| 6 |
S304 |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Outside Rearview Mirror - Passenger |
| 2 |
C304 |
| 3 |
Inflatable Restraint Side Impact Sensor - Right (AY1) |
| 4 |
Door Lock - Front Passenger |
| 5 |
Window Motor - Front Passenger |
| 6 |
S604 |
| 7 |
Speaker - RF Door |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Door Lock Switch - Front Passenger |
| 2 |
Window Switch - Front Passenger |
| 3 |
S605 |
| 4 |
Speaker - RF Door Tweeter |
| 5 |
C304 |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Window Switch - LR |
| 2 |
Window Motor - LR |
| 3 |
Door Lock - LR |

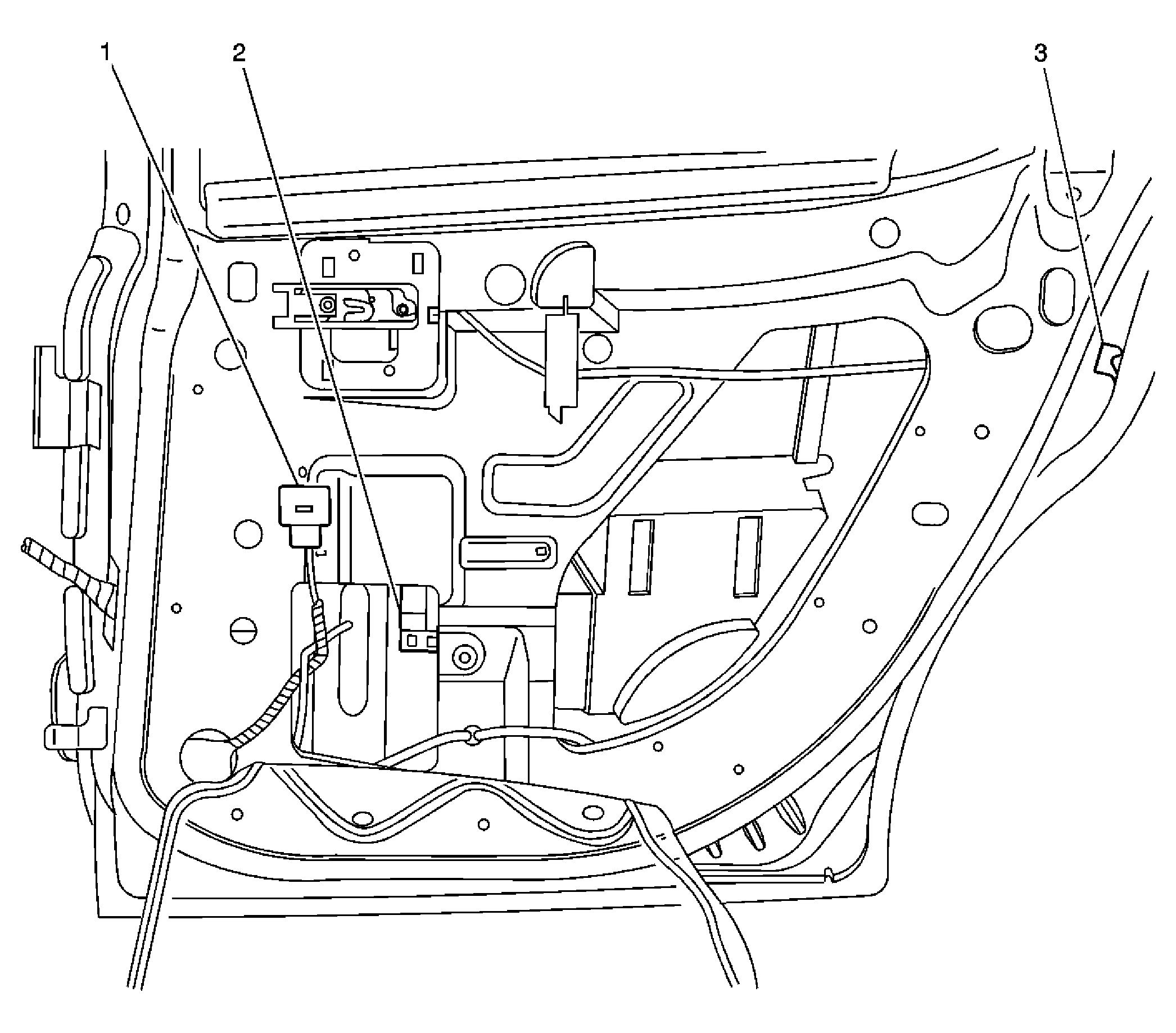

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Window Switch - RR |
| 2 |
Window Motor - RR |
| 3 |
Door Lock - RR |
