ABS Component Views

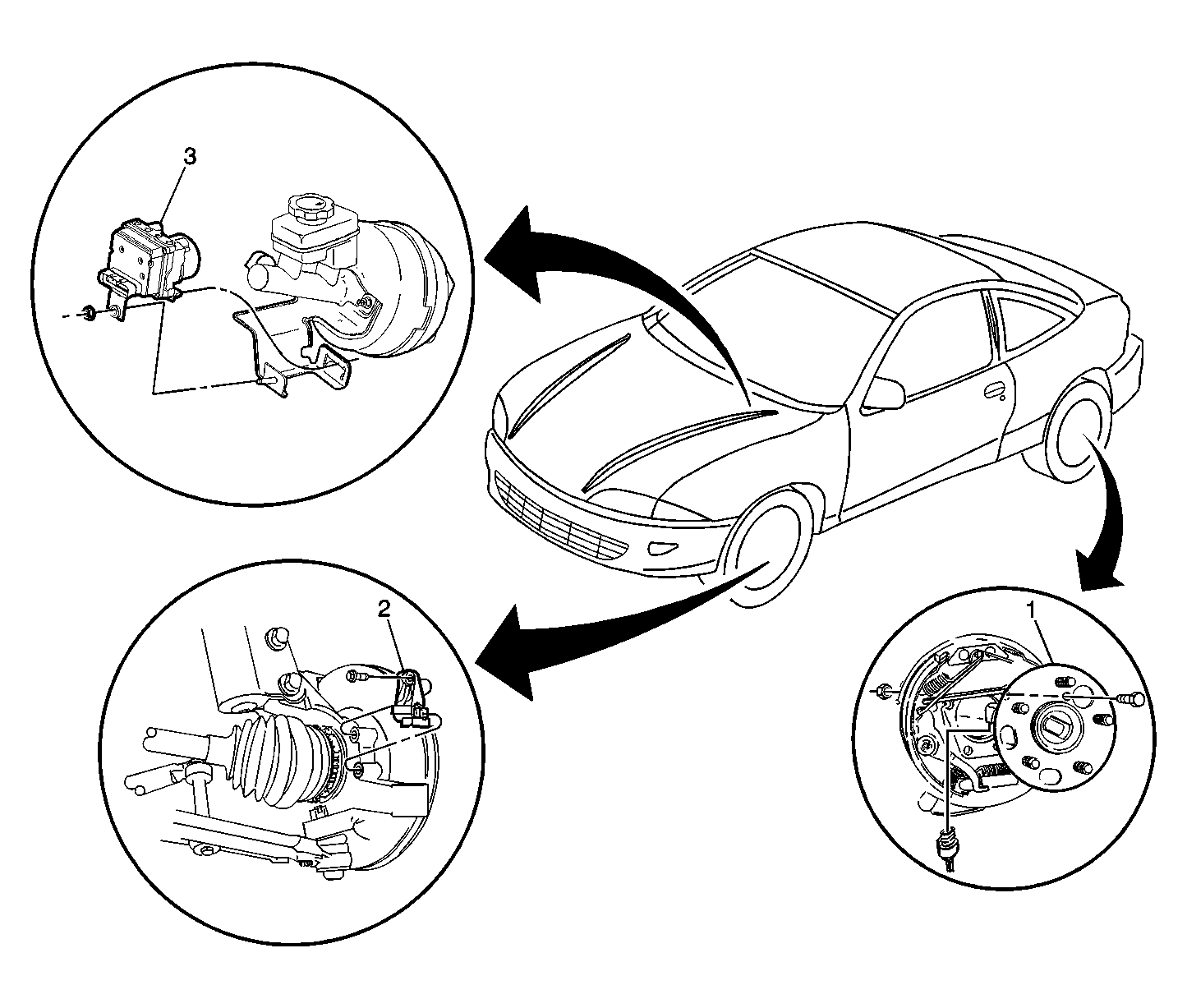

Fig 1: ABS Components Component View
GM550208Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor - LR, RR Similar
2 Wheel Speed Sensor - LF, RF Similar
3 EBCM/BPMV Assembly
