Installation Procedure

Install the front wheel speed sensor to the steering knuckle.

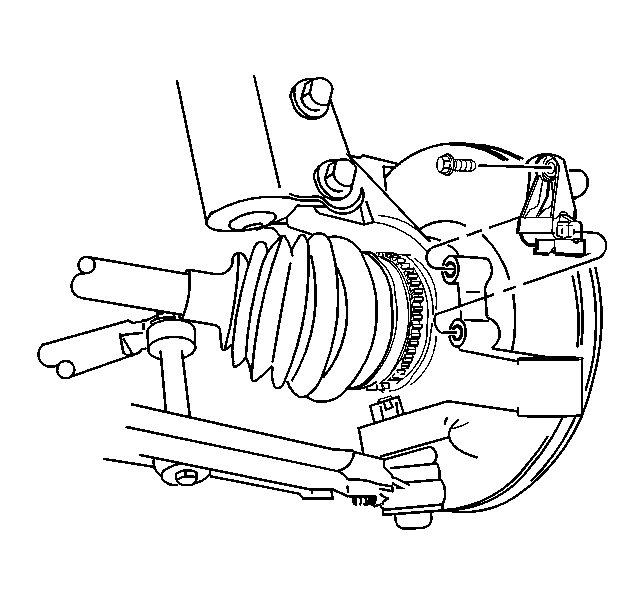

Fig 1: View Of Front Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the front wheel speed sensor retaining bolt.
Tighten: Tighten the bolt to 12 N.m (107 lb in).
Connect the electrical connector to the front wheel speed sensor.

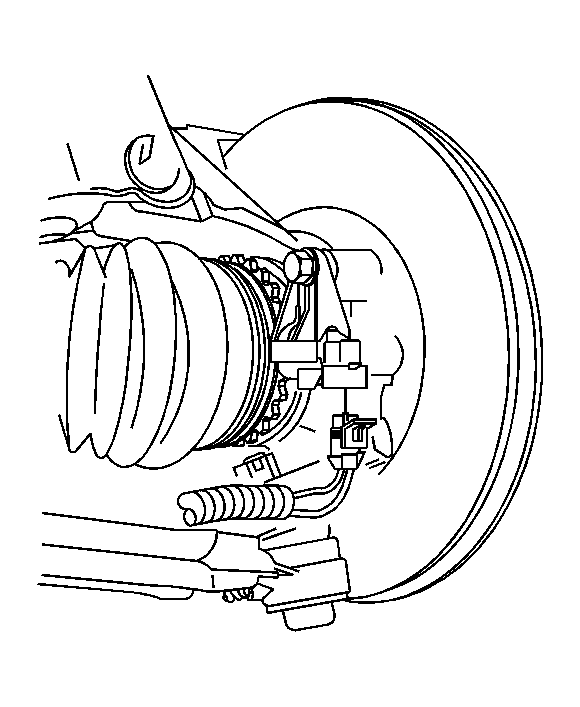

Fig 2: View Of Front Wheel Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
Perform the Diagnostic System Check - ABS .
