Wiper/Washer System Component Views

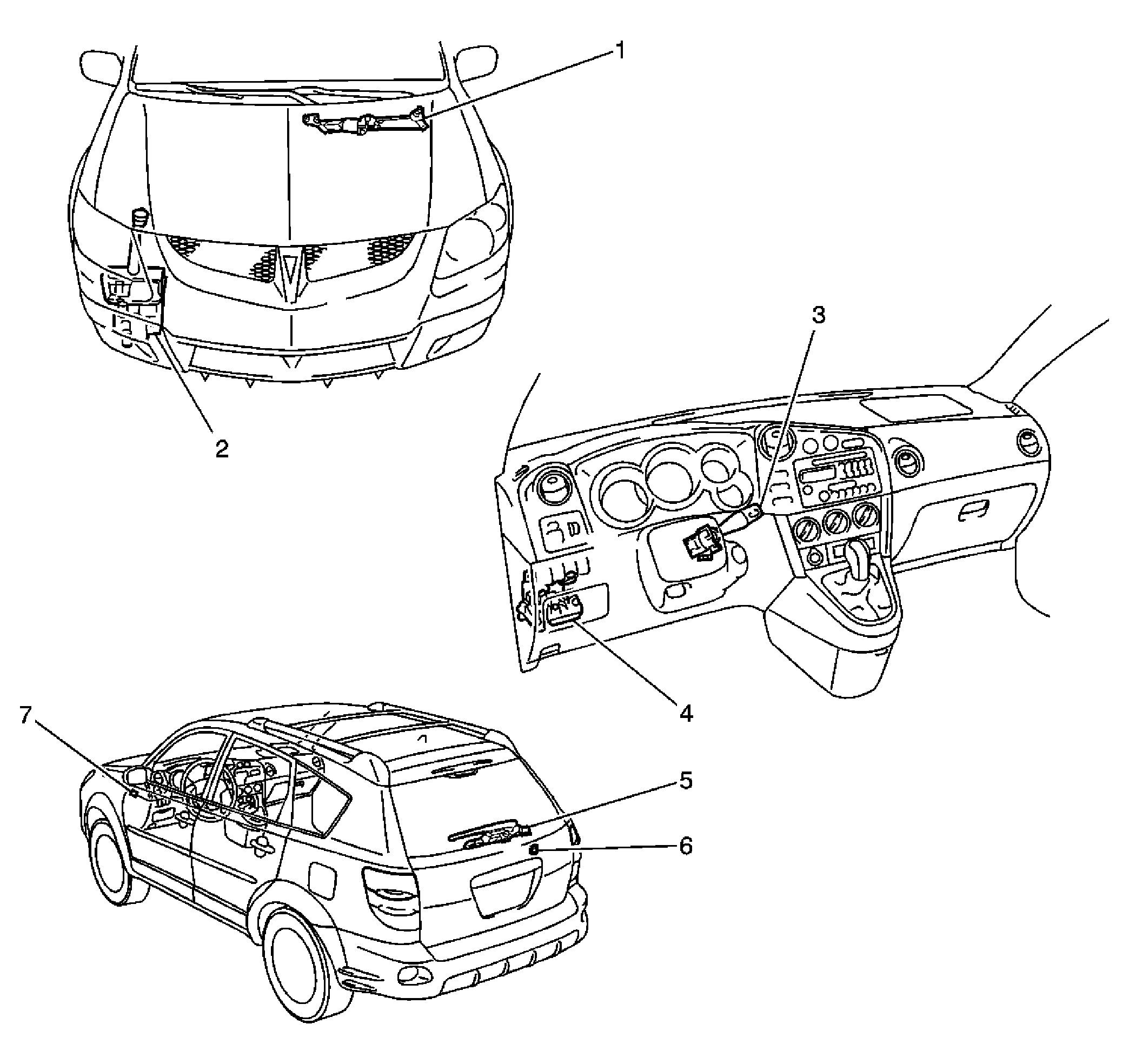

Fig 1: Wiper/Washer Component Views
GM850599Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Wiper Motor
2 Washer Fluid Reservoir
3 Wiper Switch
4 Wiper Fuse
5 Rear Wiper Motor
6 Rear Wiper Relay 2
7 Rear Wiper Relay 1
