Wiper/Washer System Connector End Views

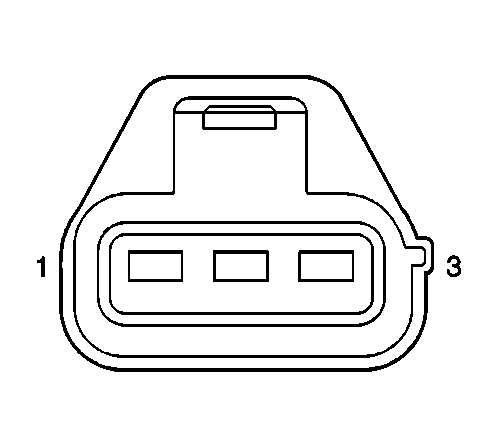

Washer Motor-Rear Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BU/YE | Washer Pump Feed Circuit |
| 2 | BU | Washer Pump Control |
| 3 | - | Not Used |

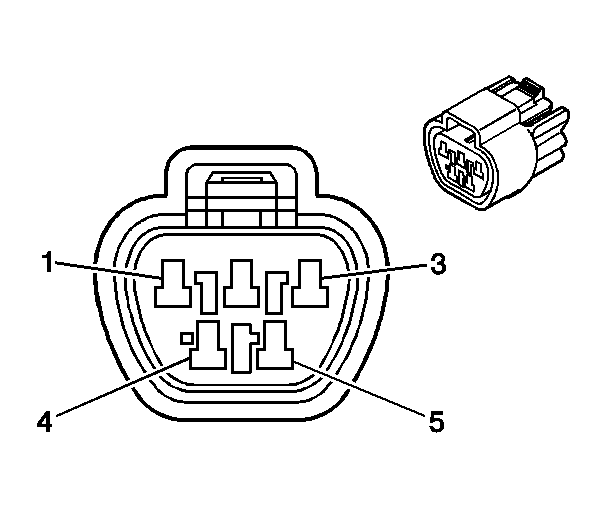

Wiper Motor-Front Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BU/WH | Intermitten/Low Control |
| 2 | BU | Ignition Positive Voltage |
| 3 | BU/WH | Wiper Park Control |
| 4 | BU/RD | High Speed |
| 5 | WH/BK | Ground |
Washer Motor-Rear Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BU/RD | Rear Washer Pump Supply Voltage |
| 2 | BU | Rear Washer Pump Control |
| 3 | - | Not Used |

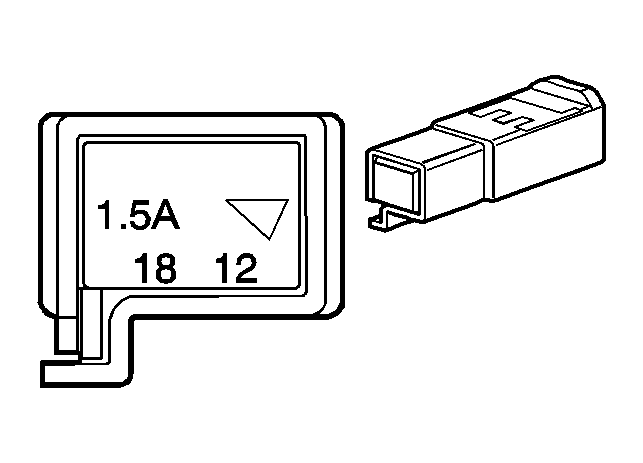

Rear Wiper Diode Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | RD/WH | Supply Voltage |
| 2 | RD/BK | Rear Wiper Relay 1 Supply Voltage |

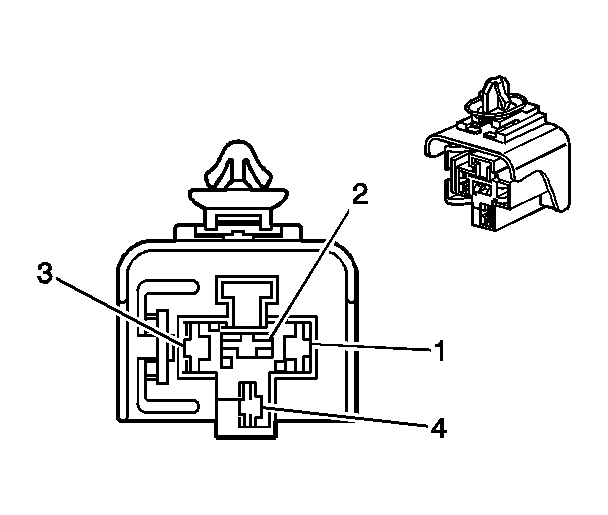

Rear Wiper Relay 1 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | RD/WH | Rear Wiper Relay 1 Signal |
| 2 | BU/WH | Supply Voltage-RR WIP Fuse |
| 3 | RD/BK | Supply Voltage-Rear Wiper Diode |
| 4 | BU | Rear Wiper Motor Control |

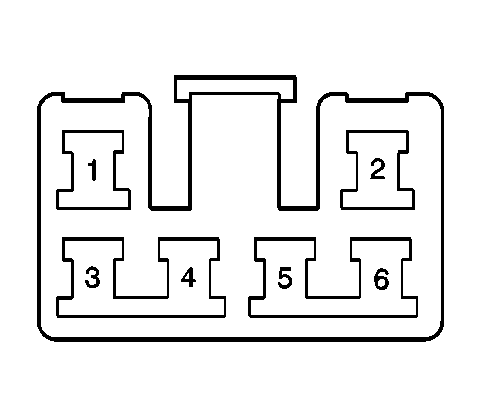

Rear Wiper Relay 2 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | - | Not Used |
| 2 | PK | Intermittent Position |
| 3 | BU | Park Control |
| 4 | BU/WH | Wiper Motor Feed |
| 5 | BU/BK | Park Switch |
| 6 | WT | Wiper Relay Ground |

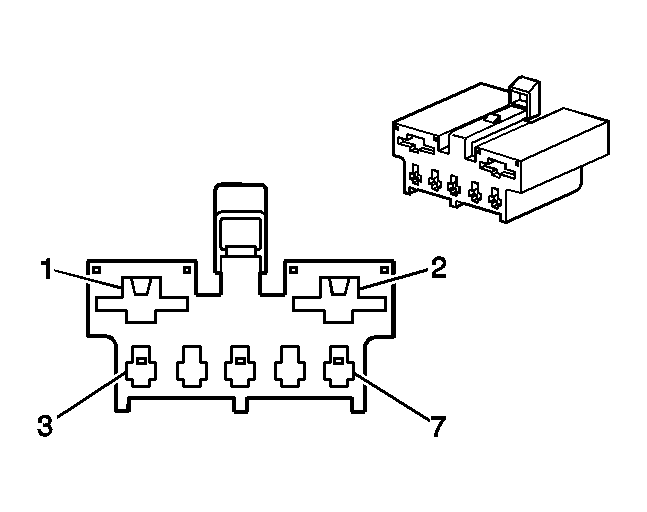

Rear Hatch Glass Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | WT/BK | Ground |
| 2 | BK | Defogger Relay |
| 3 | BU/WT | Wiper Motor Feed |
| 4 | BU/WH | Not Used |
| 5 | BU/BK | Park Switch |
| 6 | WH | Not Used |
| 7 | BU | Park Control |
Windshield Wiper/Washer Level Sensor Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BU/WH | Indicator Signal |
| 2 | WH/BK | Ground |

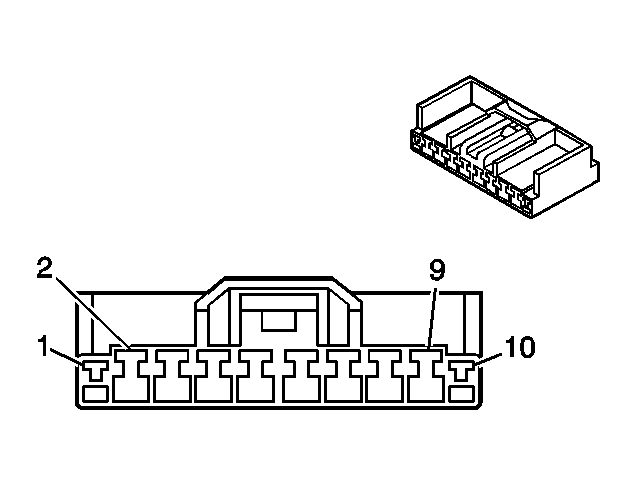

Windshield Wiper/Washer Switch Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | PK | Rear Wiper Off Signal |
| 2 | WH | Rear Wiper Control Circuit |
| 3 | BU/RD | Rear Washer Pump Control |
| 4 | BU/YE | Front Washer Motor Control |
| 5 | WH/BK | Ground |
| 6 | BU/WH | Front Wiper Park Control |
| 7 | BU/WH | Front Wiper Low Position |
| 8 | BU | Wiper Switch Feed Circuit |
| 9 | BU/RD | Front Wiper High Position |
| 10 | - | Not Used |
