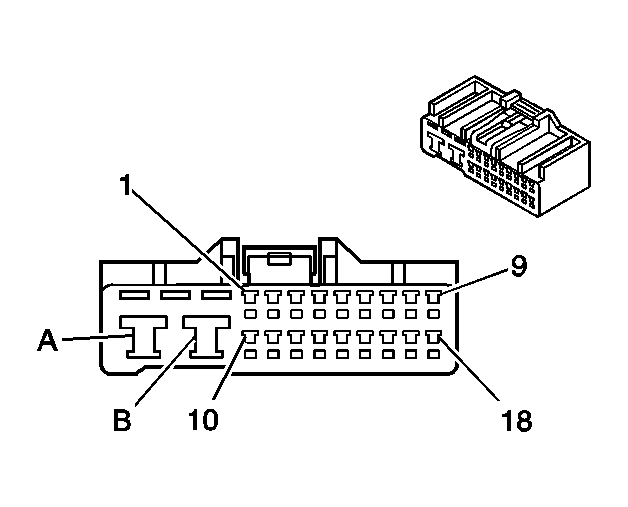

Daytime Running Lamps (DRL) Control Module Connector End View
Daytime Running Lamps (DRL) Control Module Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A | RD/BK | Low Beam Control |
| B | WH/BK | Ground |
| 1 | RD/BK | Battery Voltage |
| 2 | GN/OR | Fog Lamp Relay Control |
| 3 | RD | Headlamps ON Indicator Control |
| 4 | RD/YE | Headlamp Relay Control |
| 5 | RD | Headlamps ON/Low Beam Position |
| 6 | YE | Generator Load Signal |
| 7 | WH/BK | Ground |
| 8 | RD/WH | Brake Signal |
| 9 | RD/BK | Park Brake Switch Signal |
| 10 | RD/WH | Ignition Voltage |
| 11 | WH/RD | DIM Relay Control |
| 12 | GN/BK | TAIL Relay Control |
| 13 | GN/WH | Park Lamps Signal |
| 14 | RD/WH | High Beam/Flash Signal |
| 15 | - | Not Used |
| 16 | GN/RD | Ambient Light Sensor Ground |
| 17 | GN/OR | Ambient Light Sensor Signal |
| 18 | GN/YE | Ambient Light Sensor Supply Voltage |
