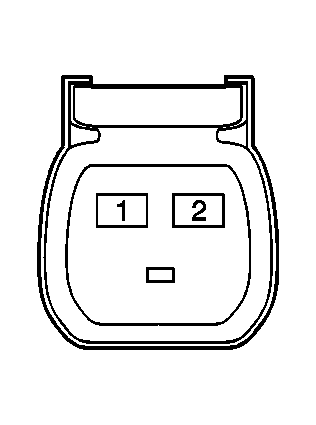

SIR RH Side Impact Inflator Module Connector End View
SIR RH Side Impact Inflator Module Connector End View
Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Function |
| 1 |
YEL/RED |
Passenger Seat High |
| 2 |
YEL/GRN |
Passenger Seat Low |
