Power Door Systems Component Views

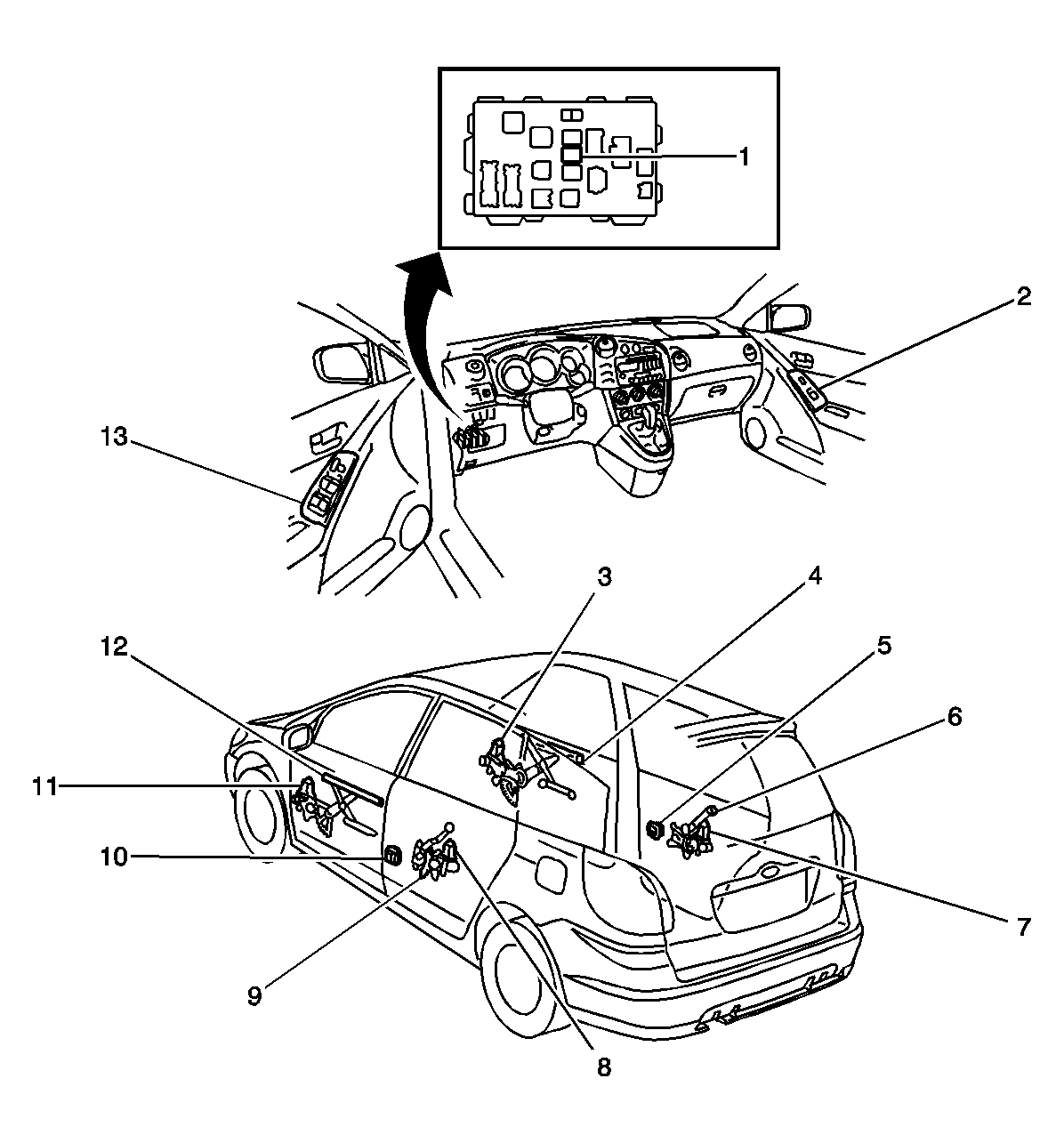

| Callout | Component Name |
|---|---|
| 1 | Power Window Relay |
| 2 | Passenger Front Power Window Switch Assembly |
| 3 | Passenger Front Power Window Motor |
| 4 | Passenger Power Window Regulator |
| 5 | Right Rear Power Window Switch |
| 6 | Right Rear Power Window Regulator |
| 7 | Right Rear Power Window Motor |
| 8 | Left Rear Power Window Motor |
| 9 | Left Rear Power Window Regulator |
| 10 | Left Rear Power Window Switch |
| 11 | Drivers Power Window Motor |
| 12 | Drivers Power Window Regulator |
| 13 | Power Window Master Switch |

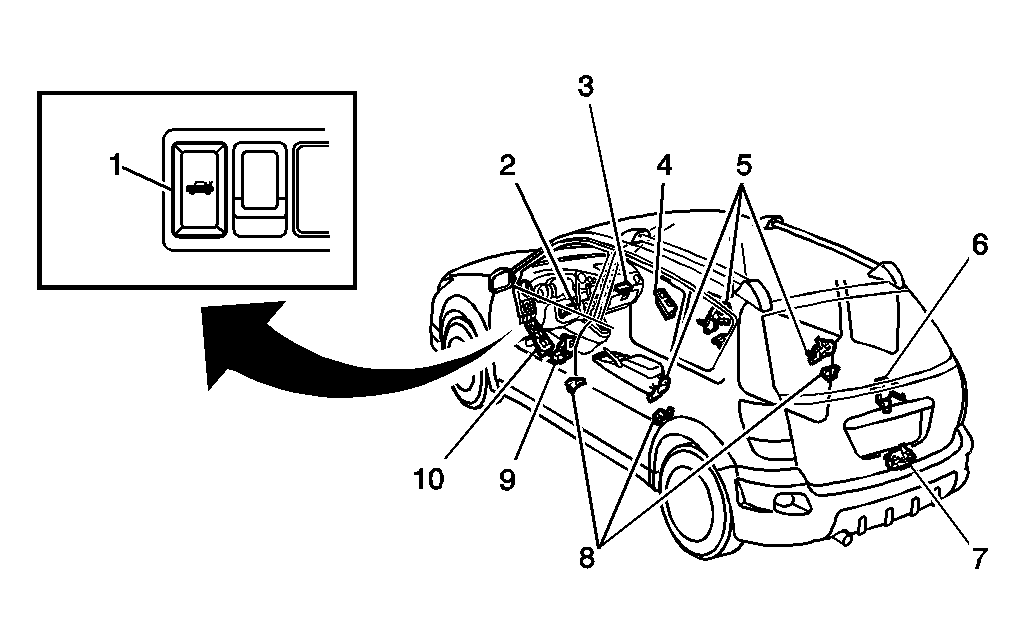

| Callout | Component Name |
|---|---|
| 1 | Glass Hatch Switch |
| 2 | Key Unlock Warning Switch |
| 3 | Integration Relay |
| 4 | Passenger Front Window Switch |
| 5 | Door Lock Motor Assembly |
| 6 | Glass Hatch Lock Assembly |
| 7 | Tailgate Lock Assembly |
| 8 | Courtesy Switch |
| 9 | Drivers Door Lock Assembly |
| 10 | Power Window Master Switch |

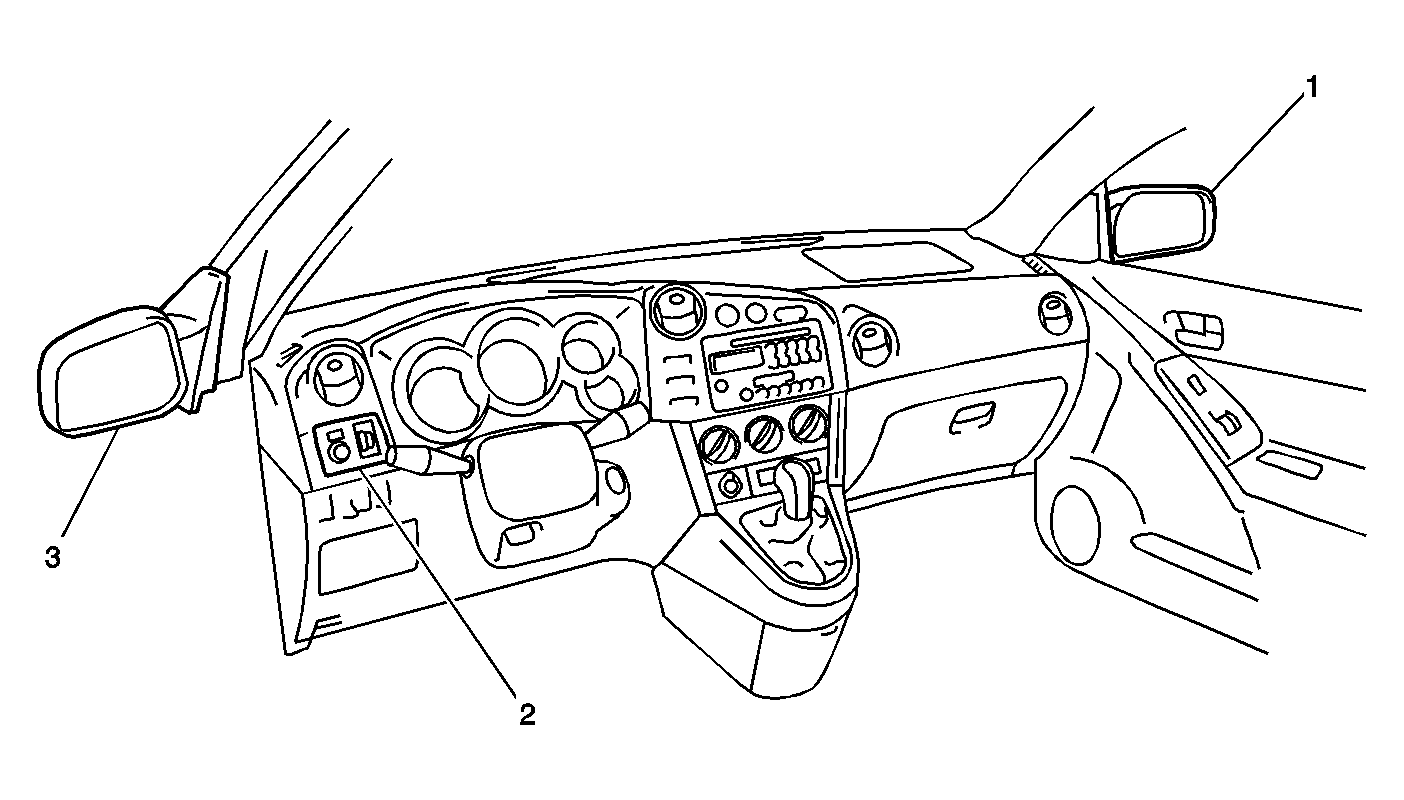

| Callout | Component Name |
|---|---|
| 1 | Passenger Mirror Motor |
| 2 | Power Mirror Direction Switch |
| 3 | Driver Mirror Motor |
