Engine Controls Component Views

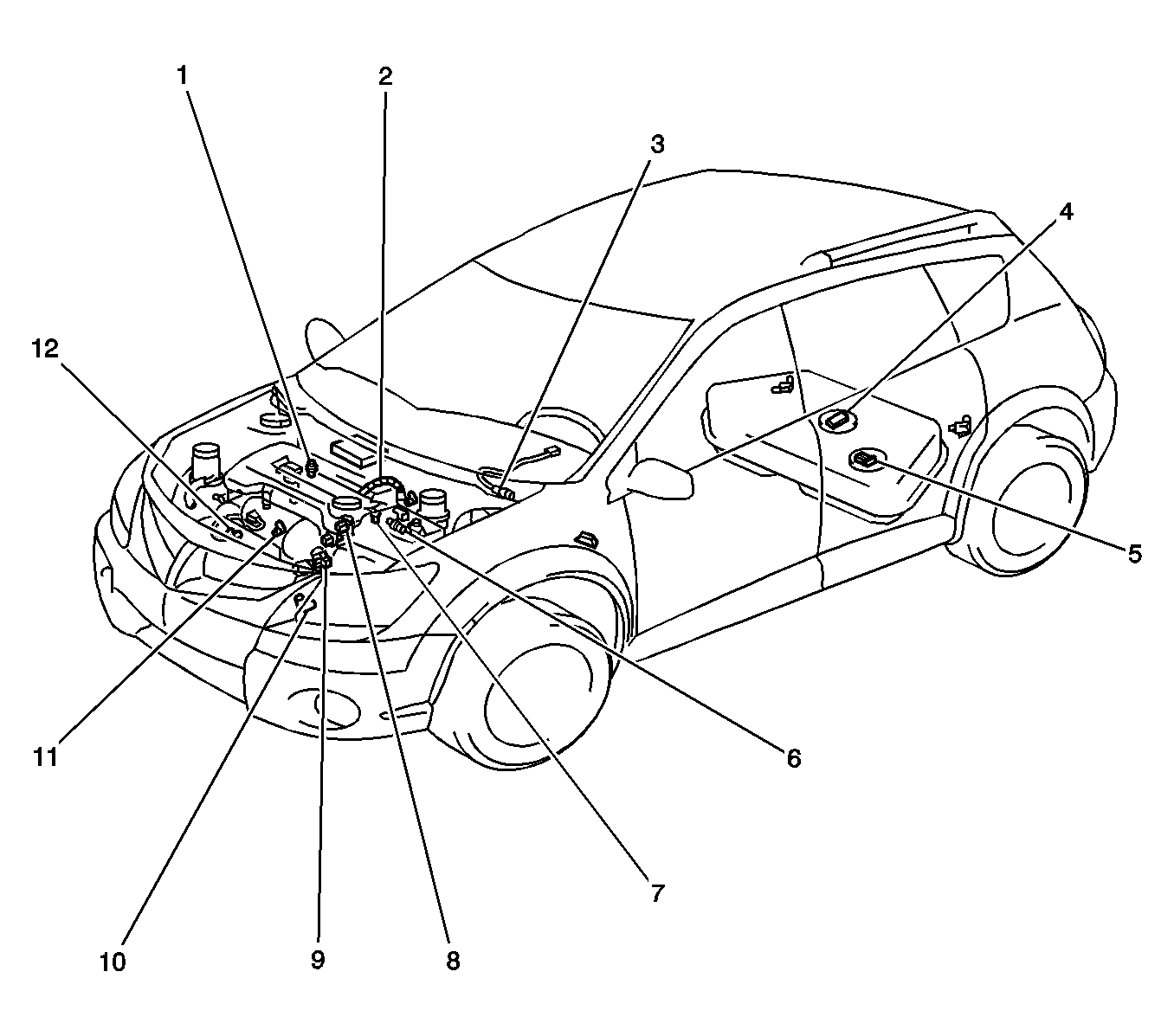

Fig 1: Information Sensors/Input Devices Component View
GM830859Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Steering Pressure Switch
2 Heated Oxygen Sensor 1 - HO2S 1
3 Heated Oxygen Sensor 2- HO2S 2
4 Fuel Tank Pressure (FTP) Sensor - FWD
5 Fuel Tank Pressure (FTP) Sensor - AWD
6 Engine Coolant Temperature (ECT) Sensor
7 Mass Air Flow (MAF) Sensor
8 Camshaft Position (CMP) Sensor
9 Throttle Position (TP) Sensor
10 PNP Switch, Automatic Transmission only
11 Knock (KS) Sensor
12 Crankshaft Position (CKP) Sensor

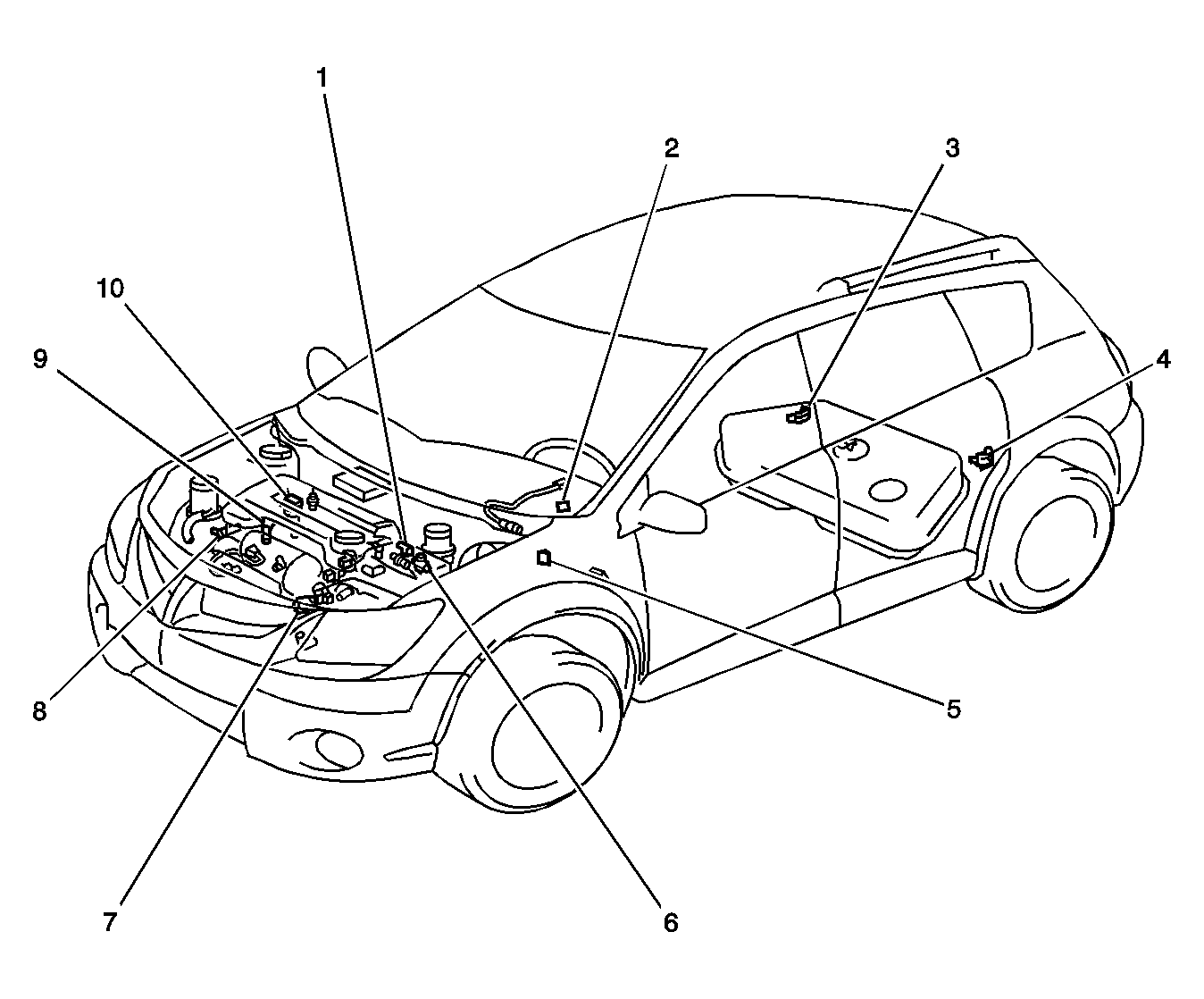

Fig 2: PCM Controlled Devices Component View
GM830855Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 EVAP Purge Solenoid
2 Malfunction Indicator Lamp (MIL)
3 EVAP Pressure Switching Solenoid - AWD
4 EVAP Pressure Switching Solenoid - FWD
5 Circuit Opening Relay - Fuel Pump Relay
6 EVAP Vent Solenoid
7 Idle Air Control (IAC) Valve
8 Camshaft Position (CMP) Actuator Solenoid
9 Fuel Injector
10 Ignition Coil

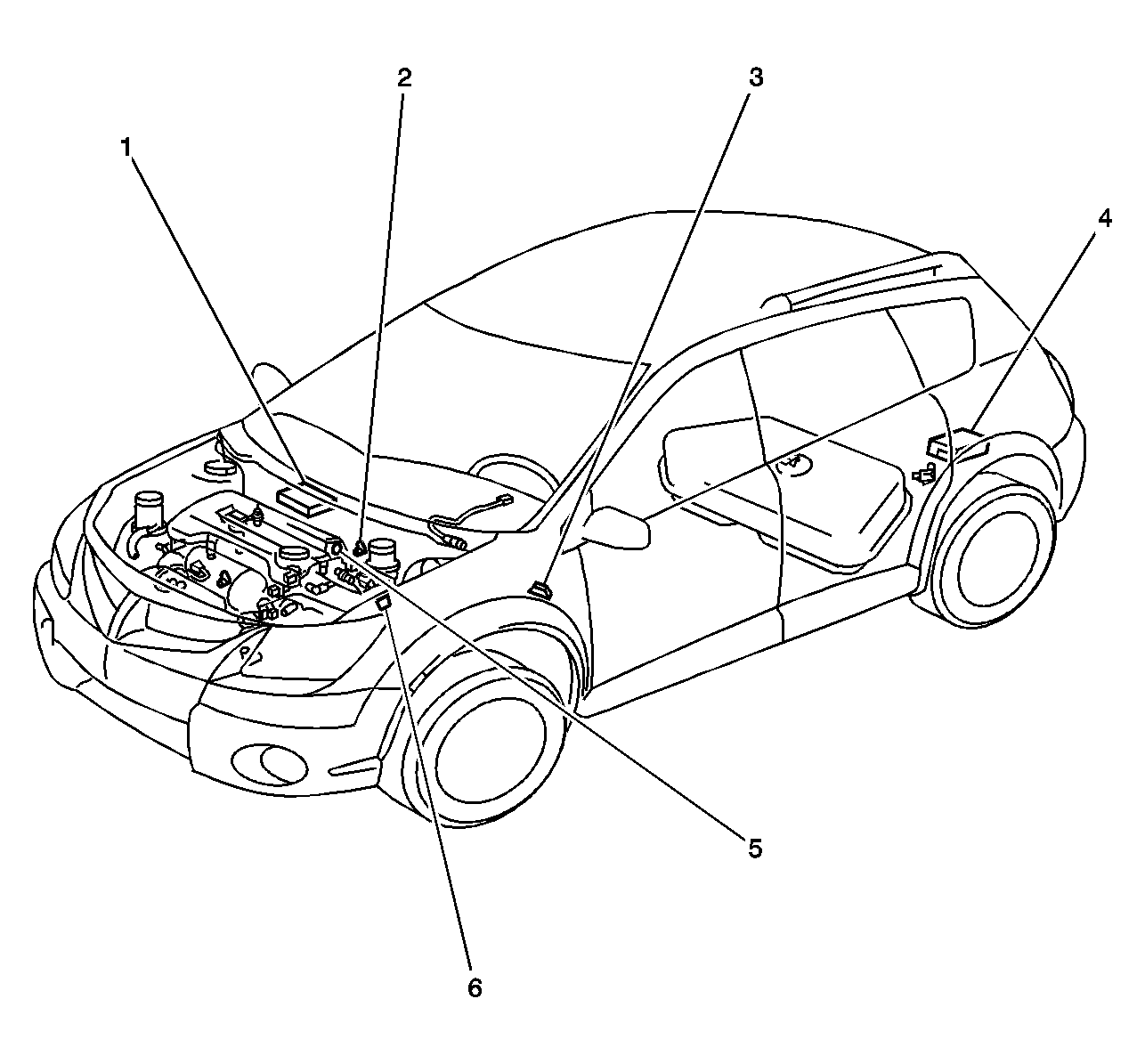

Fig 3: Other Component View - FWD
GM848127Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Powertrain Control Module (PCM)
2 EVAP Service Port
3 Data Link Connector (DLC)
4 EVAP Canister
5 Noise Filter, for ignition system
6 EFI Relay

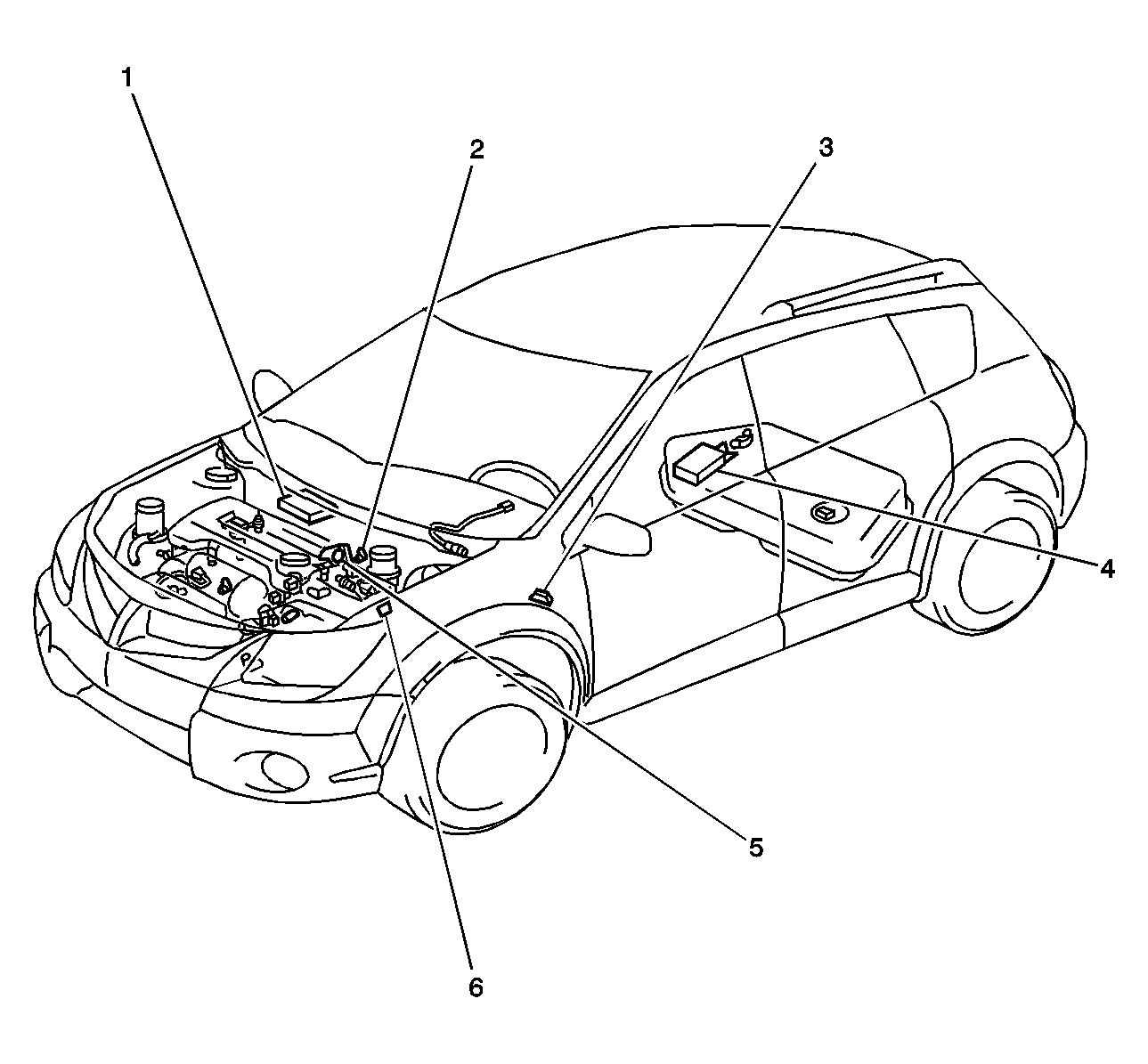

Fig 4: Other Component View - AWD
GM830842Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Powertrain Control Module (PCM)
2 EVAP Service Port
3 Data Link Connector (DLC)
4 EVAP Canister
5 Noise Filter, for ignition system
6 EFI Relay
Fig 5: Crankshaft Position (CKP) Sensor and Power Steering Pressure (PSP) Switch Component View
GM392655Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Crankshaft Position (CKP) Sensor
3 Power Steering Pump
4 Power Steering Pressure (PSP) Switch
Fig 6: ECT Sensor and Noise Filter Component View
GM851358Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Temperature (ECT) Sensor
2 Noise Filter, for ignition system
3 Upper Radiator Hose
4 Engine Ground G104 and G105

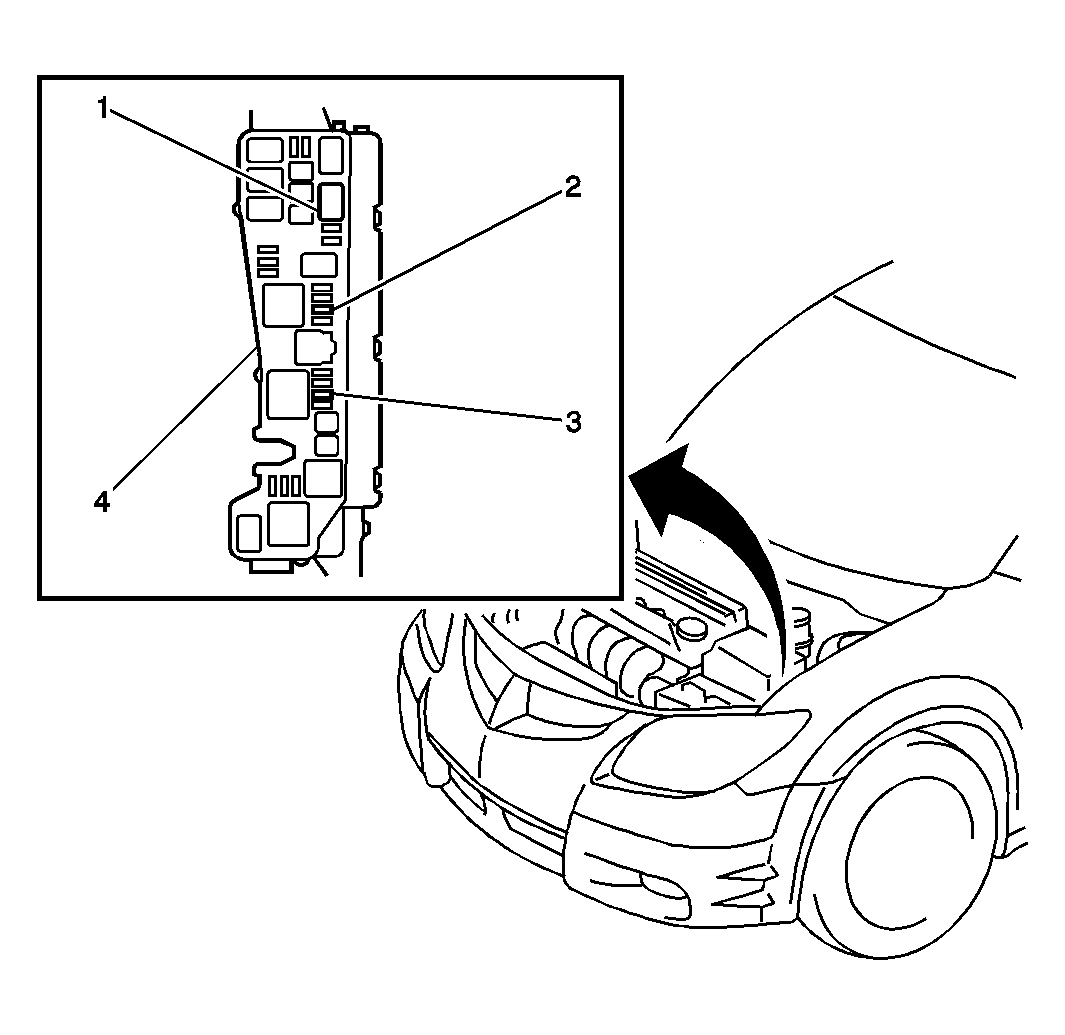

Fig 7: Fuse Block - Underhood Component View
GM831521Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 EFI Relay
2 Main Fuse
3 EFI Fuse
4 Fuse Block-Underhood
Fig 8: Instrument Panel (I/P) Component View
GM848018Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Malfunction Indicator Lamp (MIL), Check Engine Lamp
2 Powertrain Control Module (PCM)
3 Fuse Block - Instrument Panel (I/P)
4 Data Link Connector (DLC)
Fig 9: Top View of Fuse Block - Instrument Panel (I/P) Component View
GM847988Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Circuit Opening Relay, Fuel Pump Relay
2 Fuse Block - Instrument Panel (I/P)
Fig 10: Camshaft Position (CMP) Actuator Solenoid Valve and Filter Component View
GM622392Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Actuator Solenoid Valve
2 Camshaft Position (CMP) Actuator Solenoid Oil Filter
Fig 11: Identifying Ignition Coils
GM621682Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 1
2 Ignition Coil 2
3 Ignition Coil 3
4 Ignition Coil 4
