Engine Controls Schematics

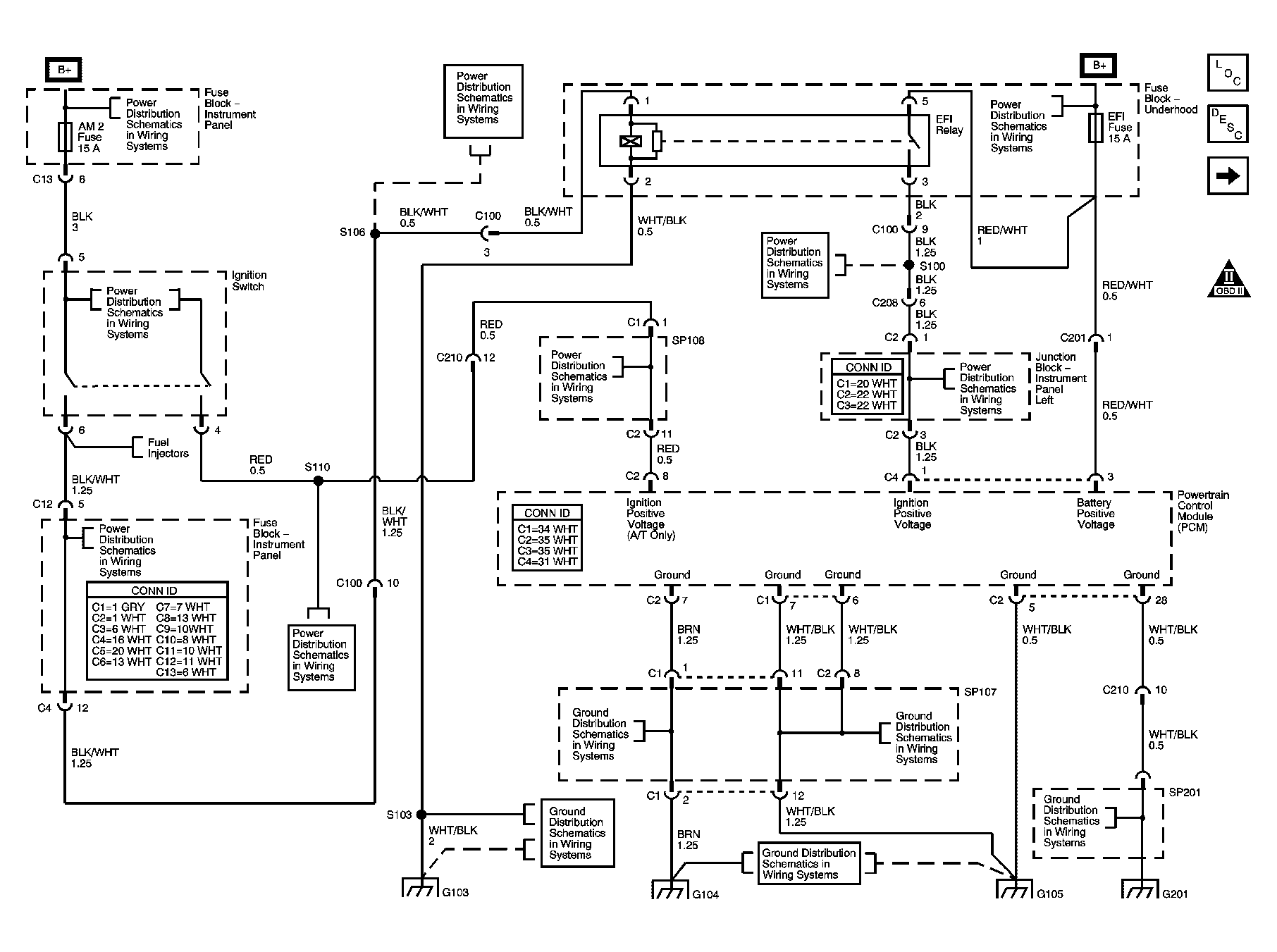

Fig 1: Powertrain Control Module (PCM) Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: EFI Relay, S 100 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Data Link Connector Schematic - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

Fig 4: Data Link Connector Schematic - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

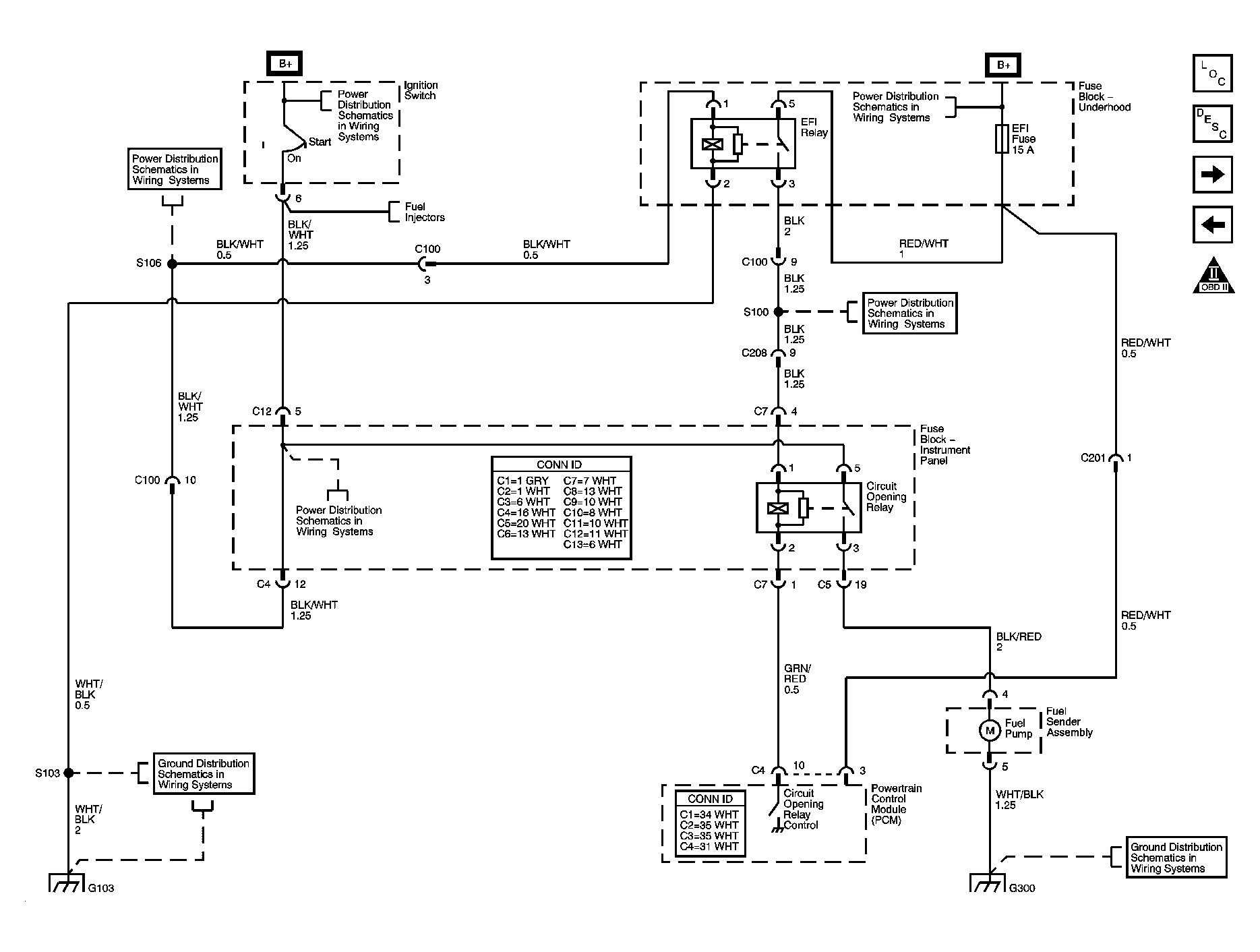

Fig 5: Circuit Opening Relay, Fuel Sender Assembly Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

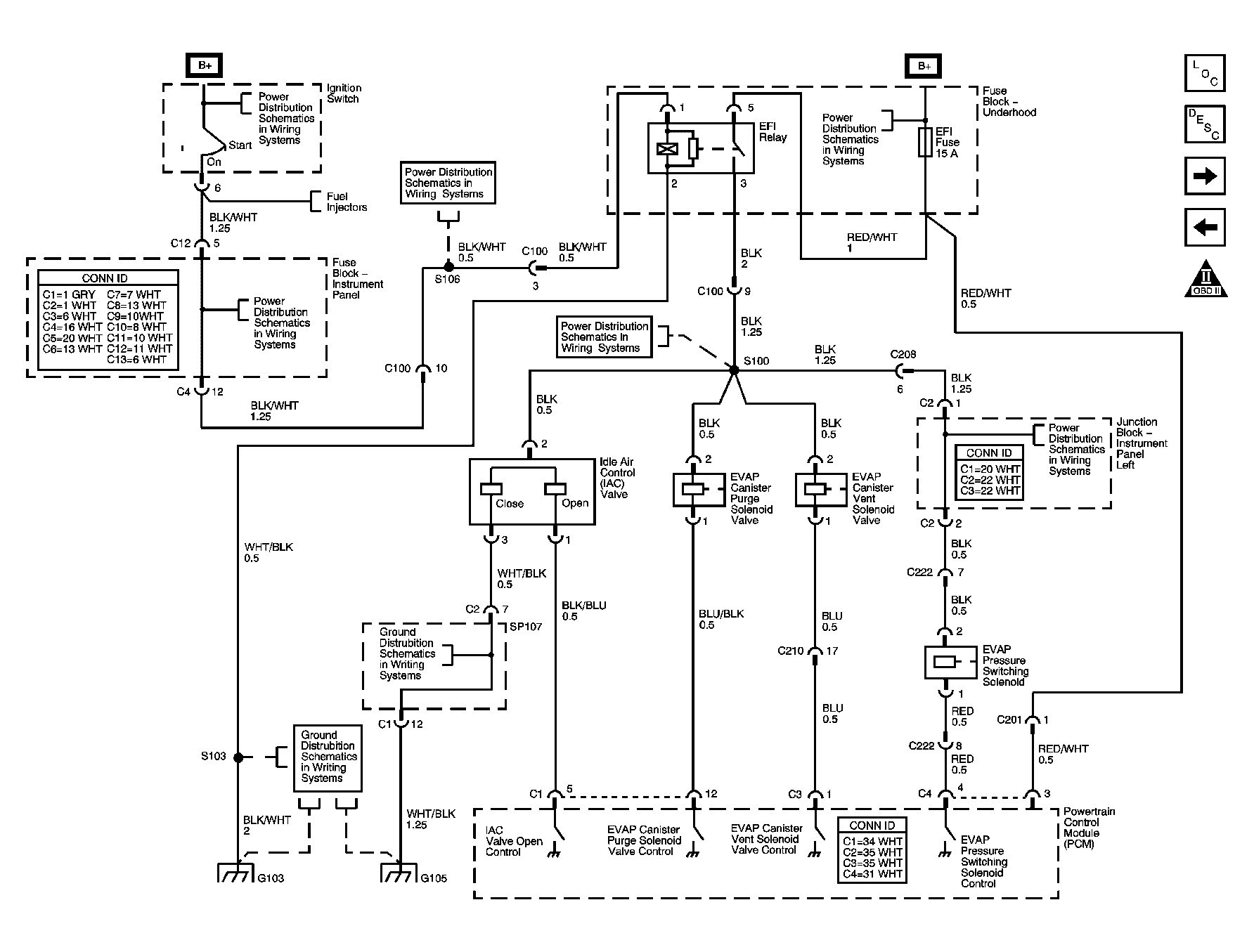

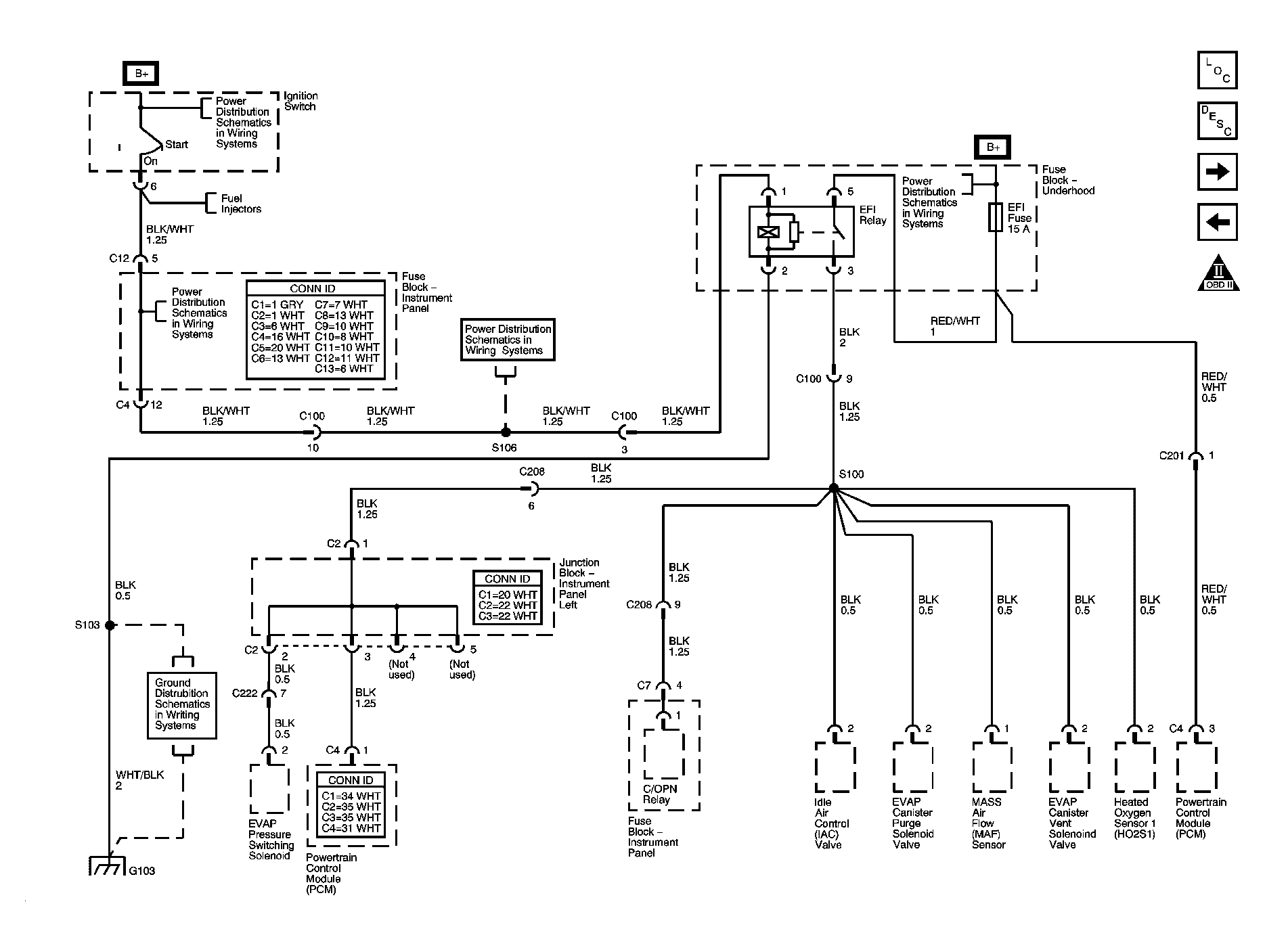

Fig 7: Idle Air Control (IAC) Valve, EVAP Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

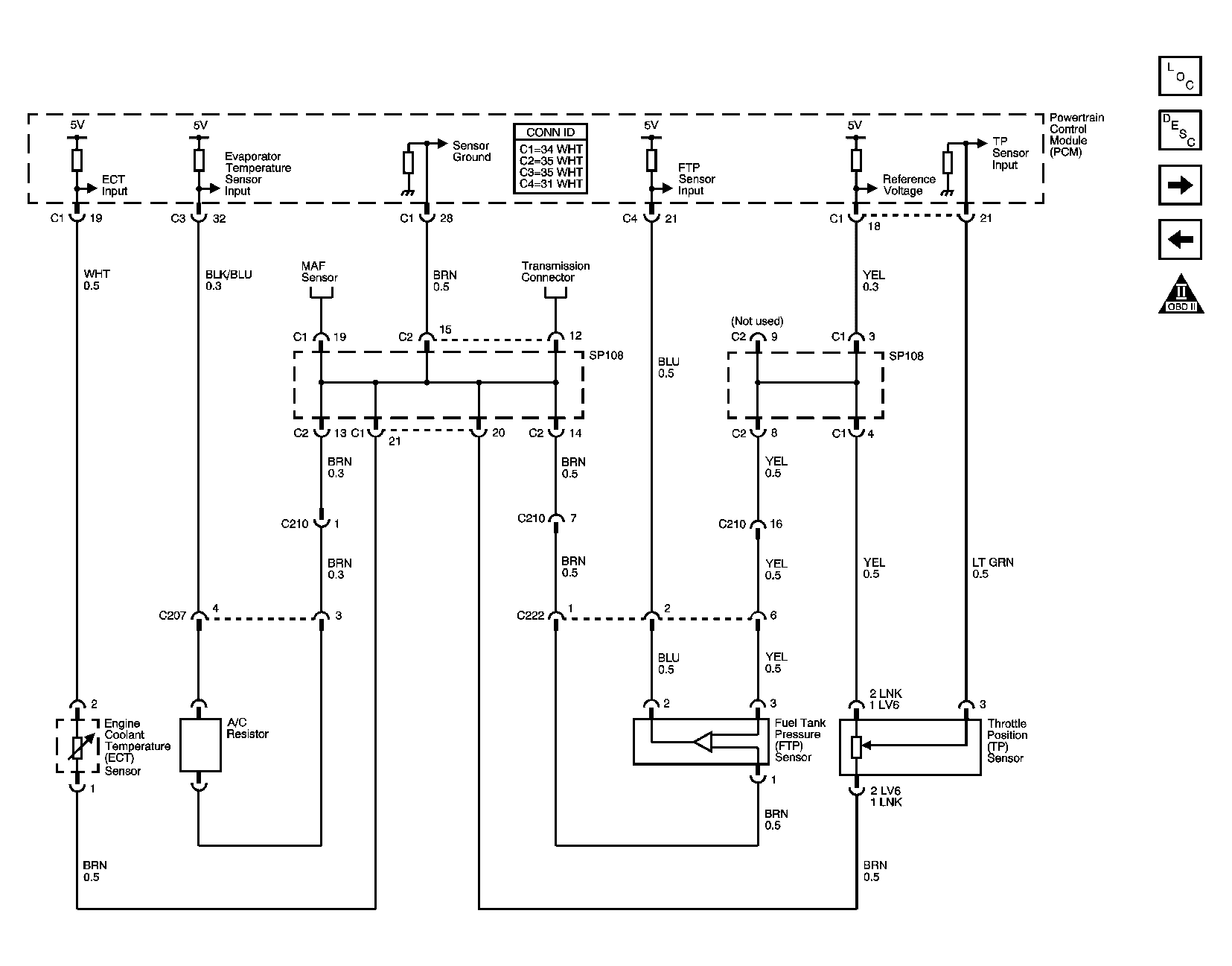

Fig 9: ECT, Evaporator Temperature, Fuel Tank Pressure TP Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

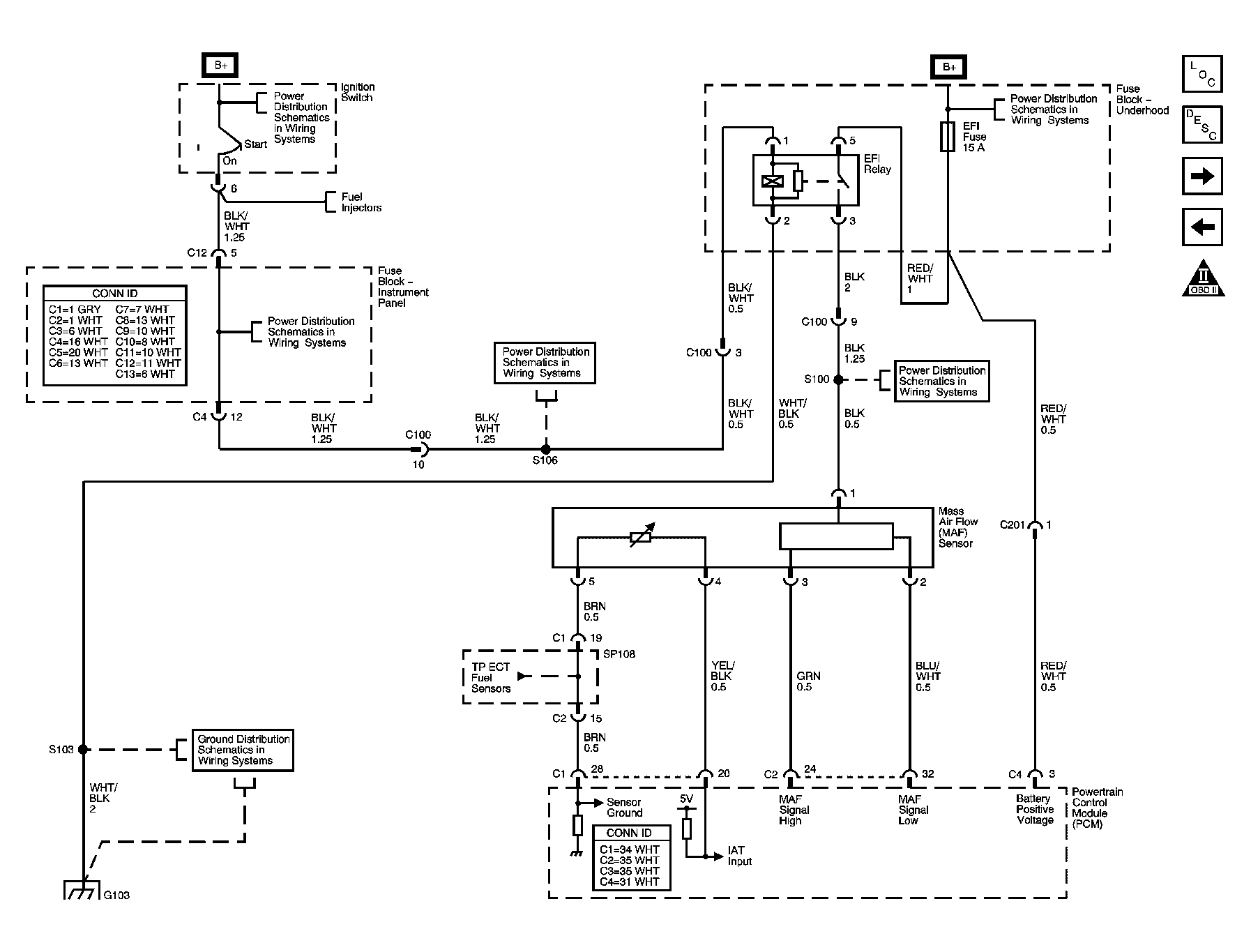

Fig 10: Mass Air Flow (MAF) Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 11: KS, CMP, CKP Sensors, CMP Actuator Solenoid Valve Schematic

Courtesy of GENERAL MOTORS CORP.

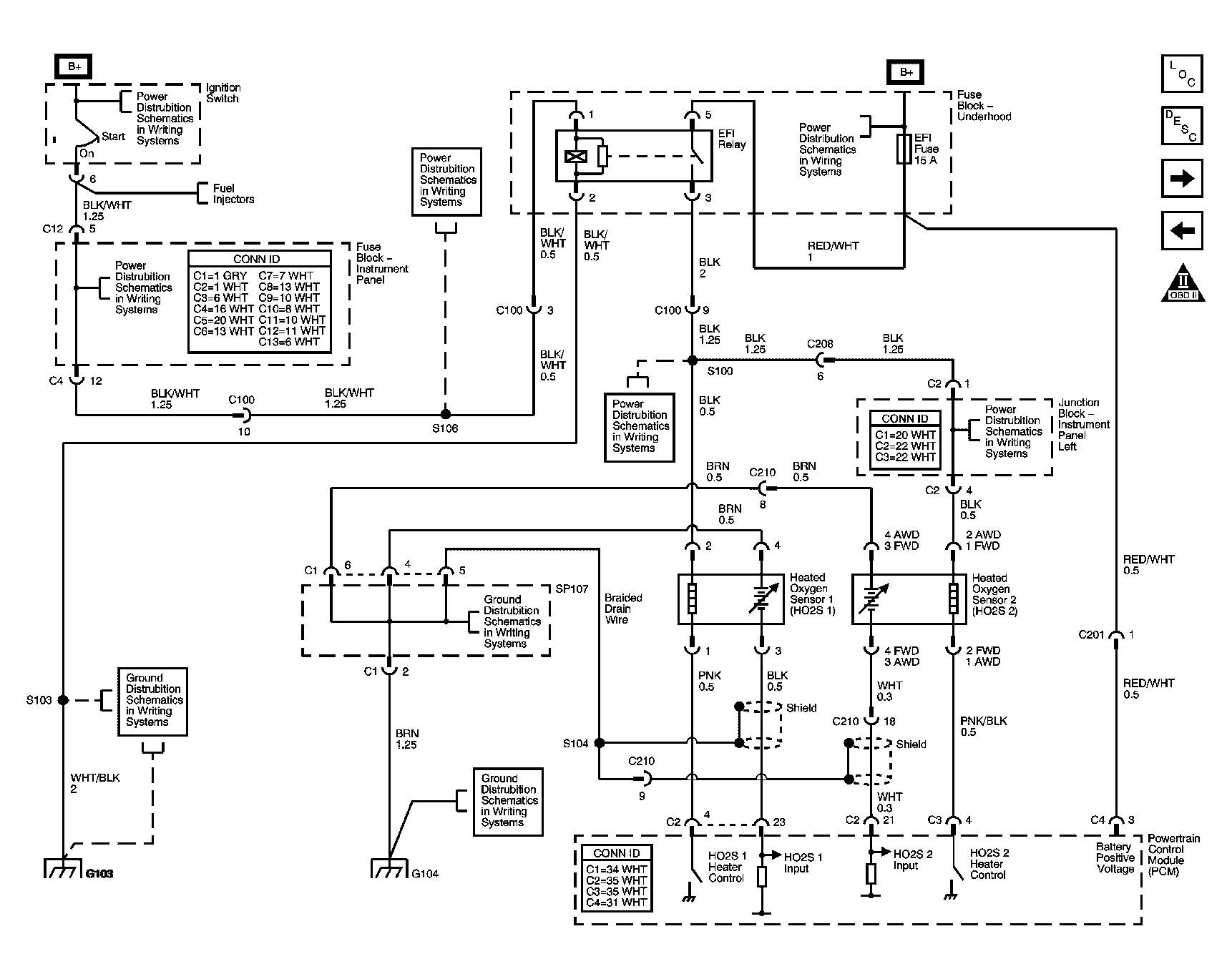

Fig 12: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

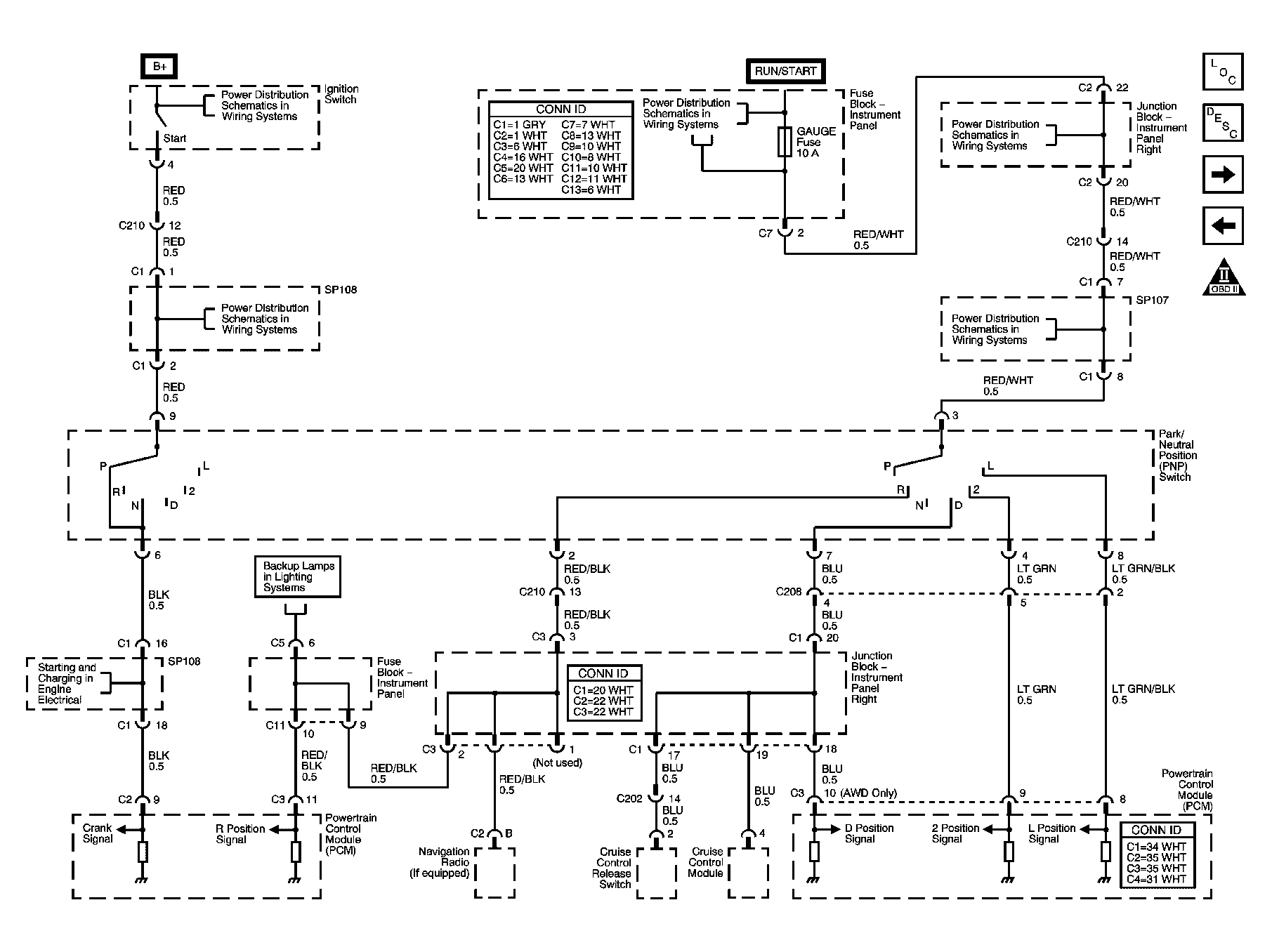

Fig 13: Park/Neutral Position Switch Schematic

Courtesy of GENERAL MOTORS CORP.

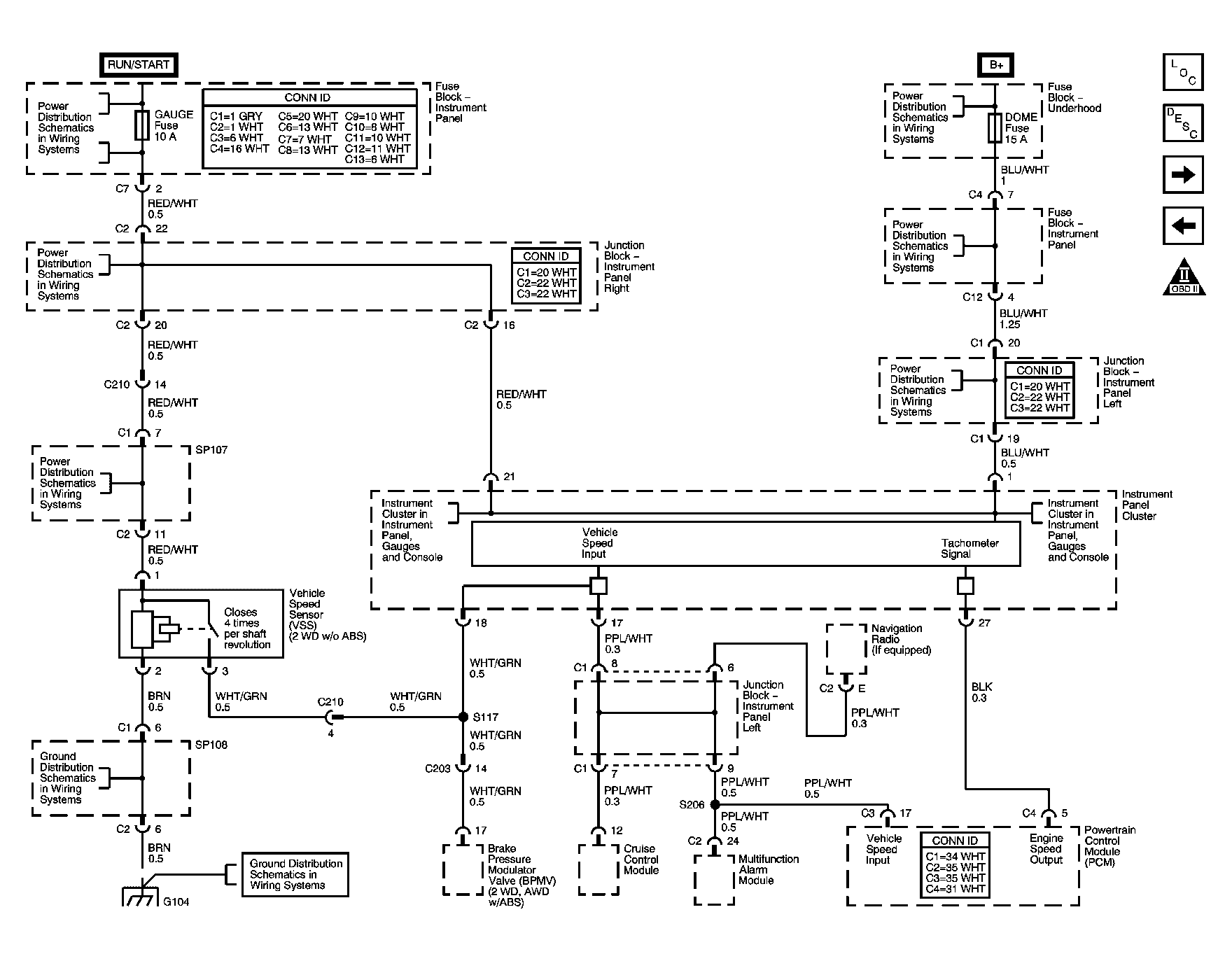

Fig 14: Vehicle Speed Input, Tachometer Signal Schematic

Courtesy of GENERAL MOTORS CORP.

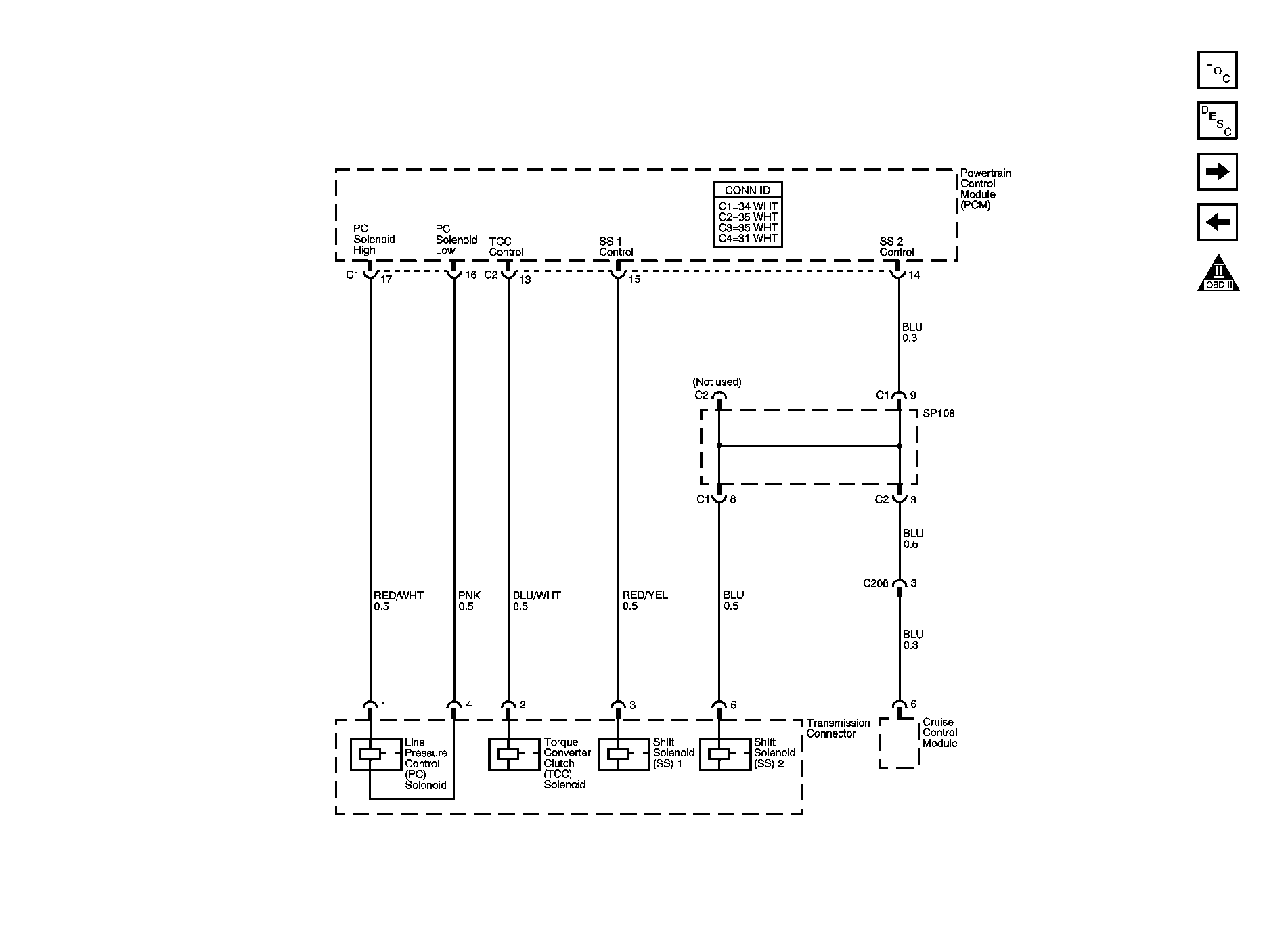

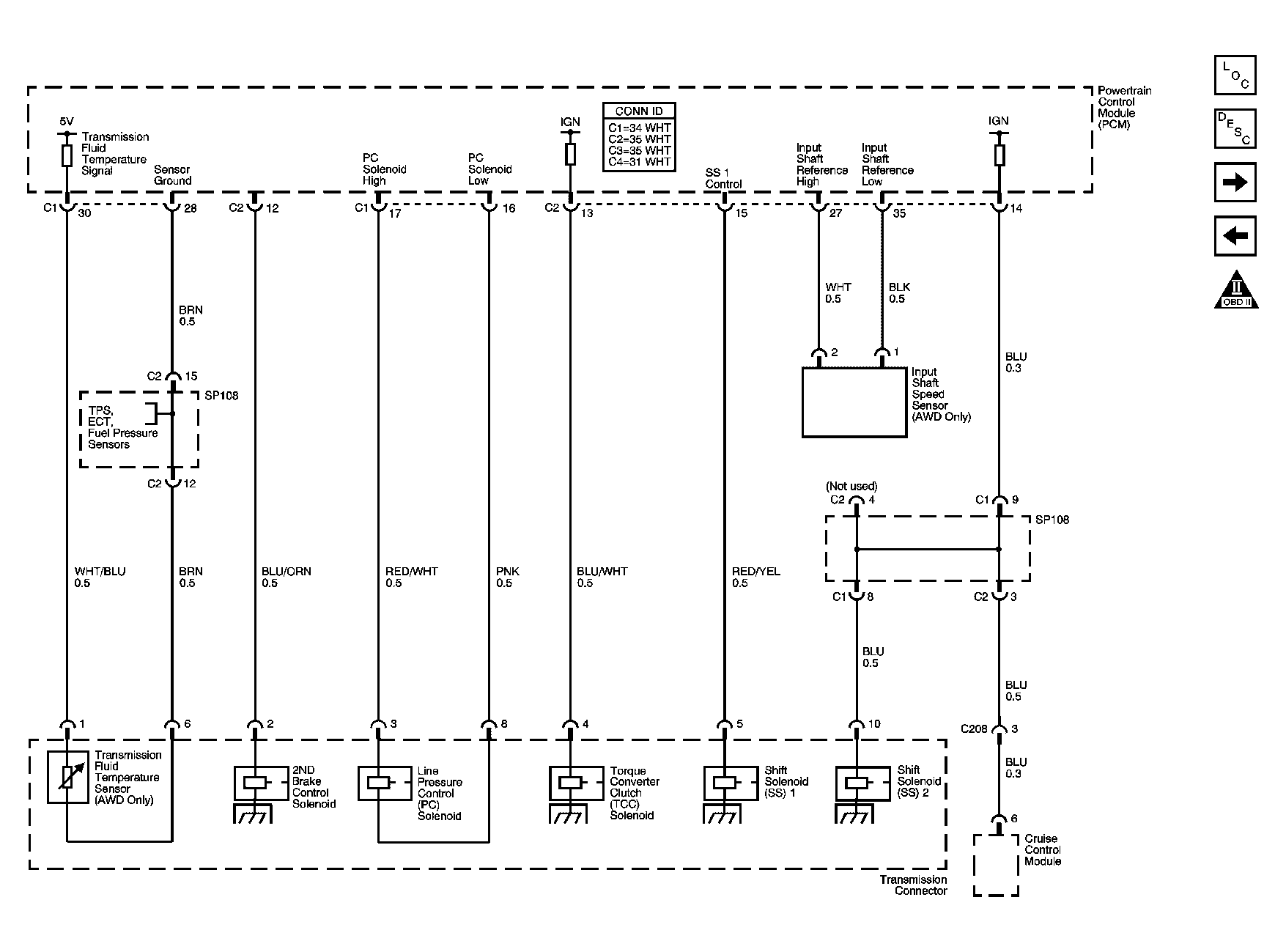

Fig 15: Automatic Transmission Controls FWD Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 16: Automatic Transmission Controls AWD Schematic

Courtesy of GENERAL MOTORS CORP.

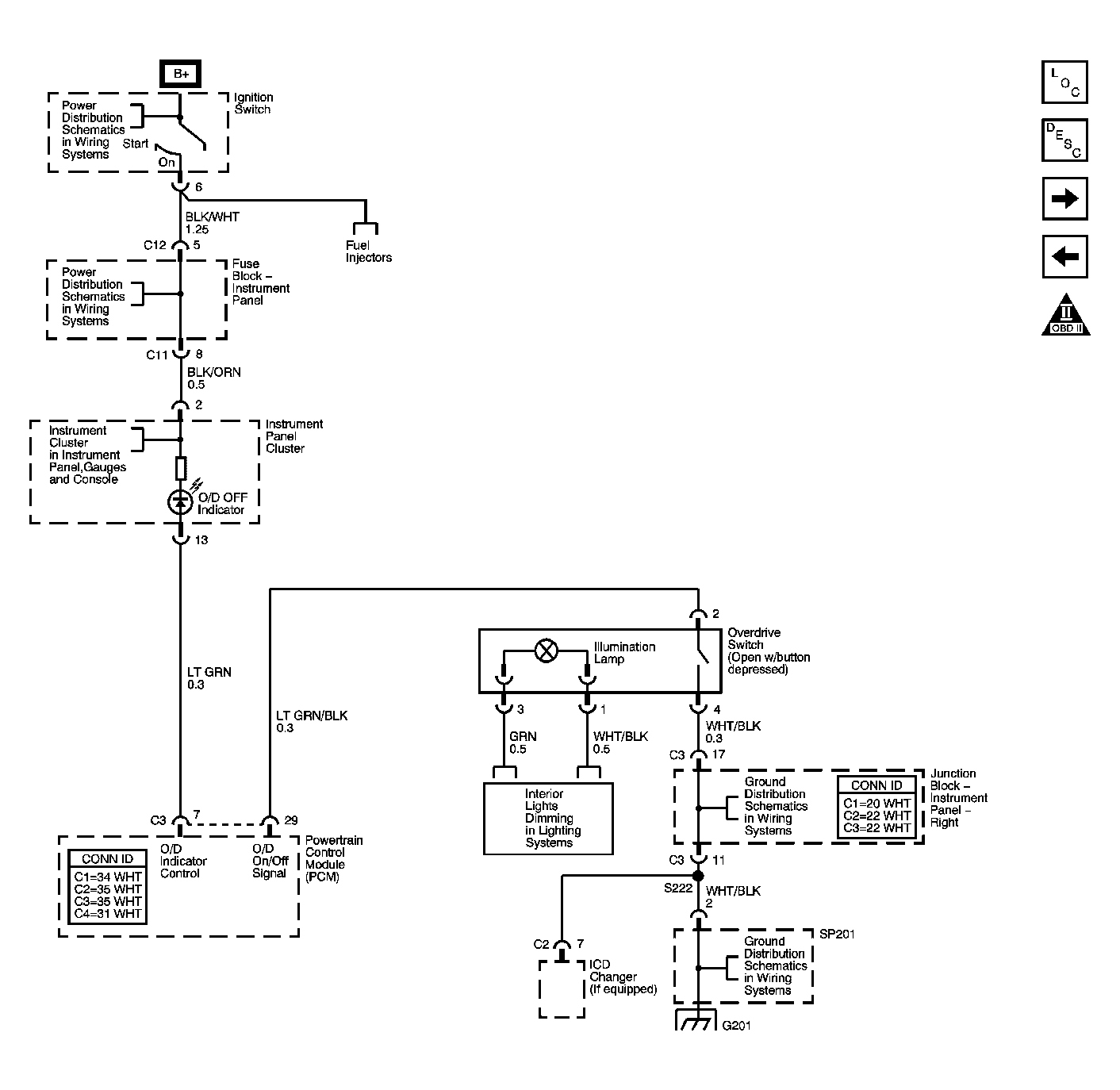

Fig 17: Overdrive Switch Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 18: Powertrain Control Module (PCM) Idle-Up Inputs Schematic

Courtesy of GENERAL MOTORS CORP.
