Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

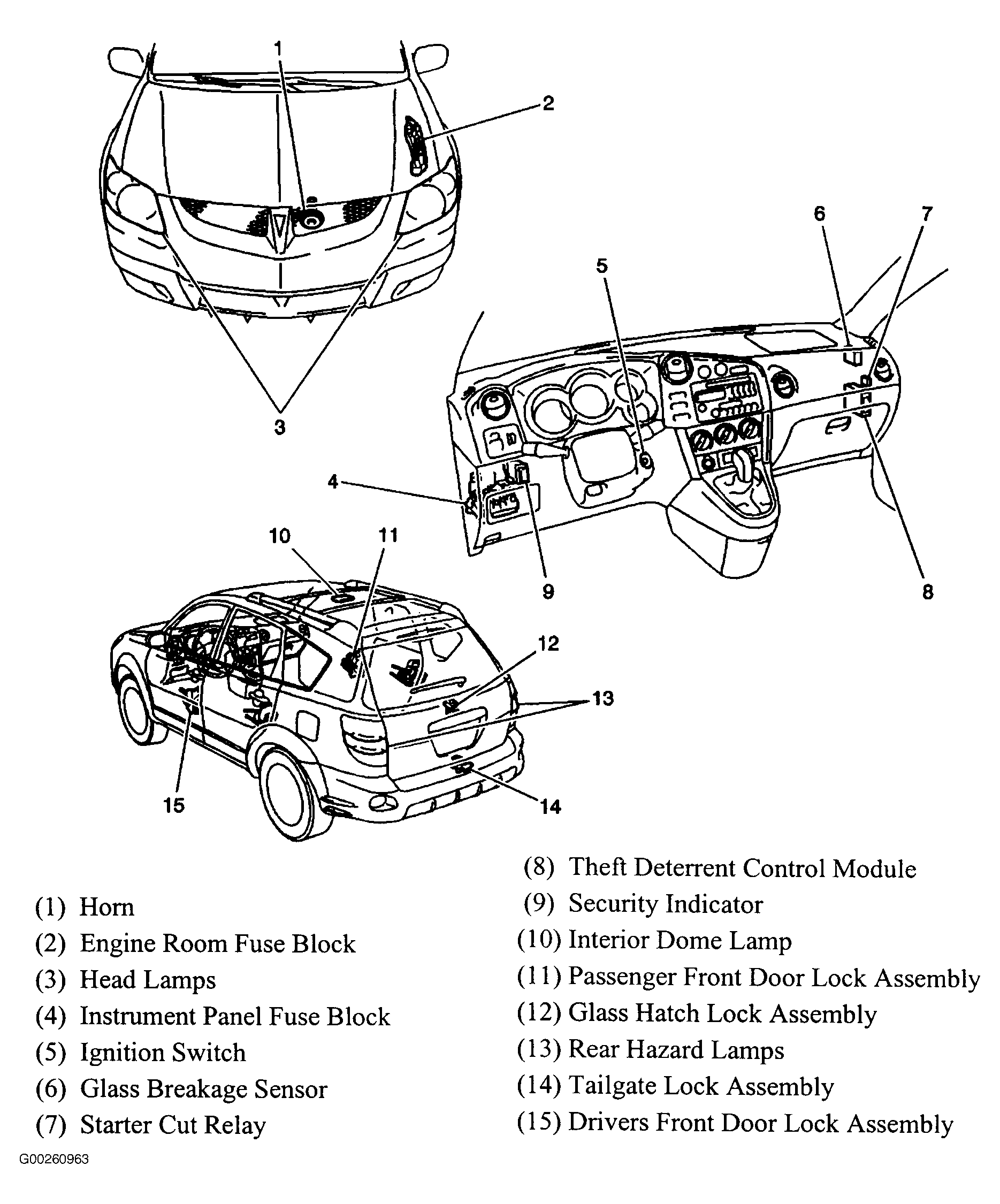

Engine Room Fuse Block At left side of engine compartment. See Figure .

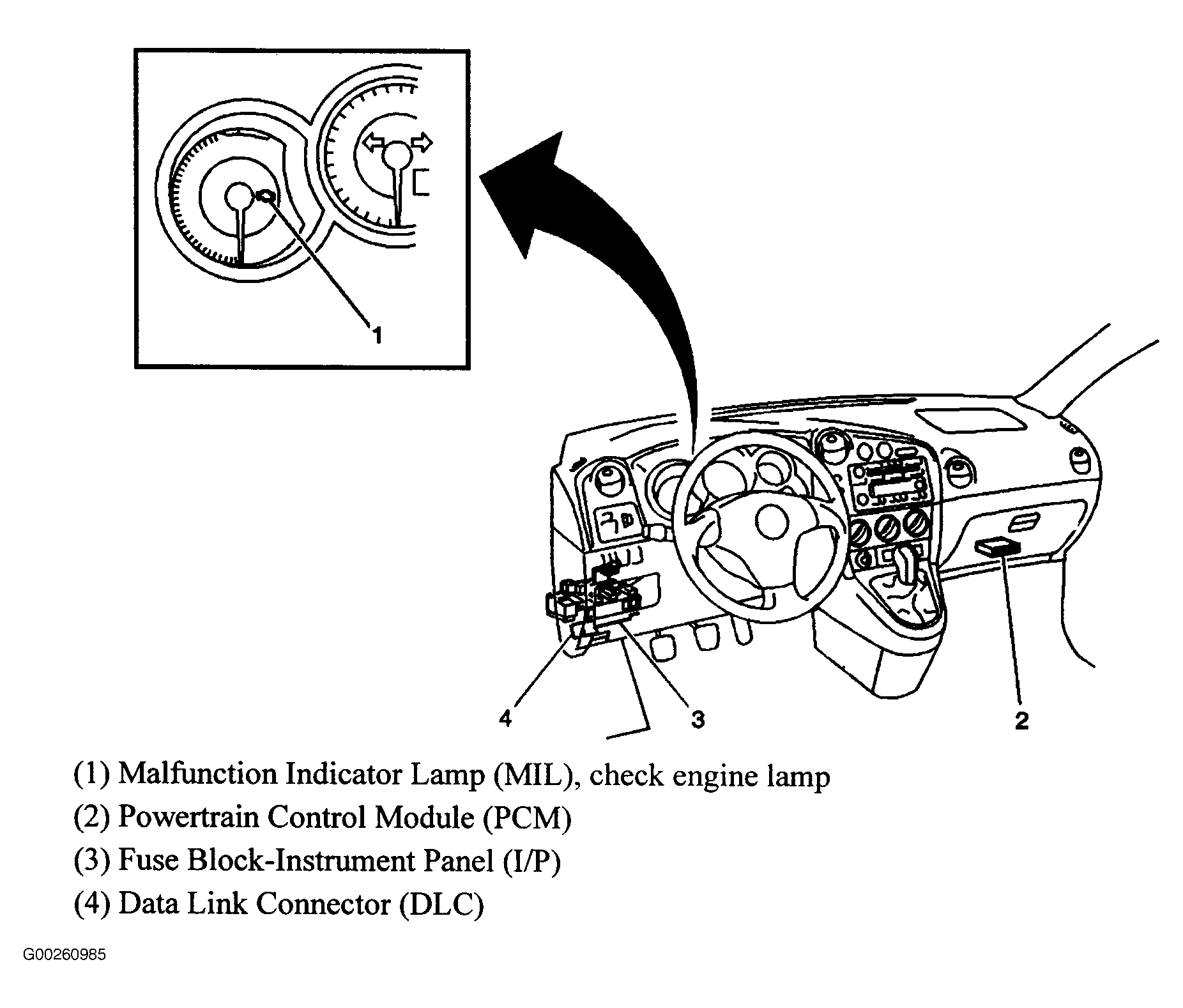

Instrument Panel Fuse Block Left of steering column, behind storage compartment. See Figure .
Left Instrument Panel Junction Block Behind left side of dash.
Right Instrument Panel Junction Block Behind right side of dash.

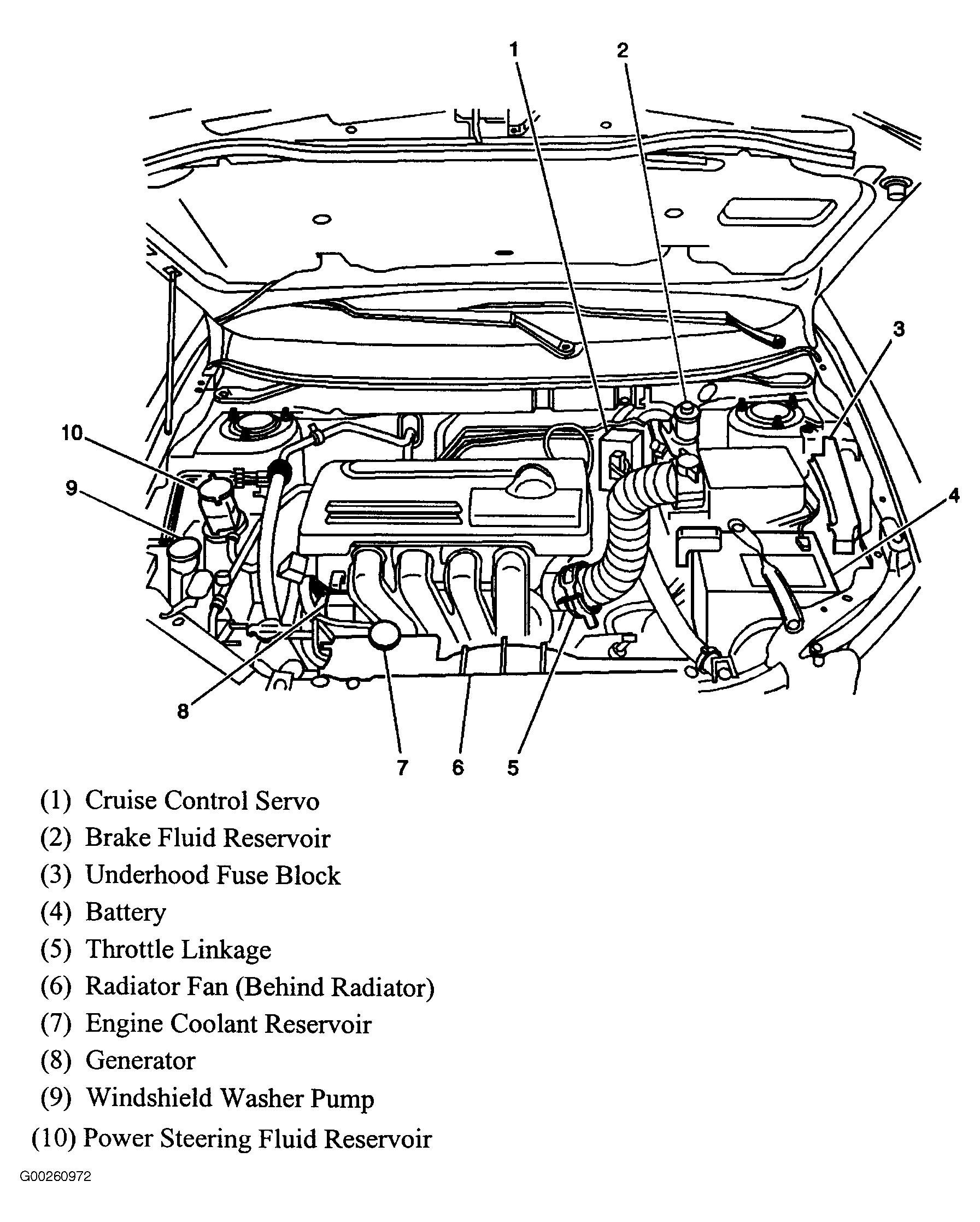

Underhood Fuse Block Left side of engine compartment, mounted to inner fender. See Figure .
