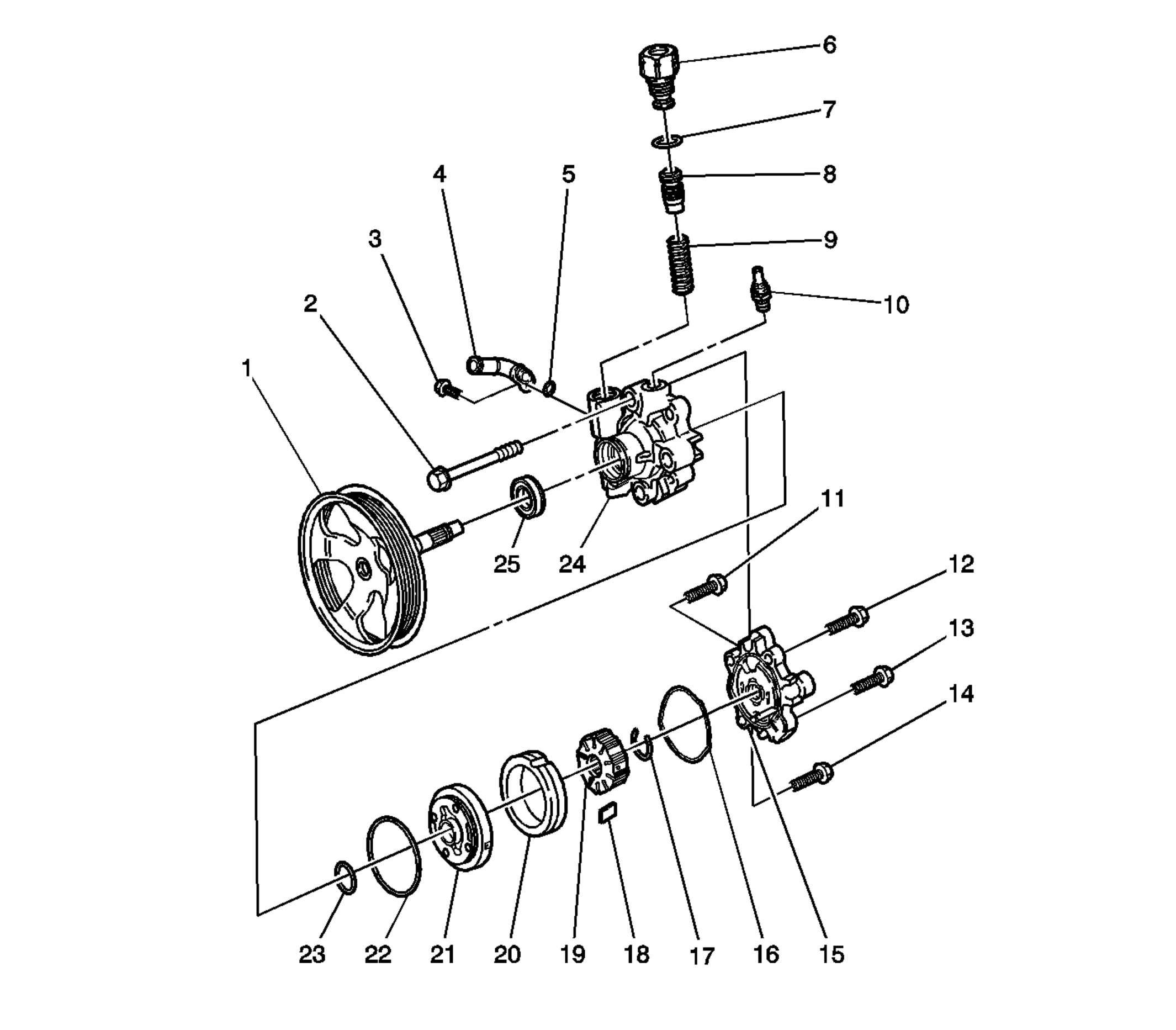

| 1 |
Power Steering Pump Pulley |
| 2 |
Power Steering Pump Rear Bracket Bolt |
| 3 |
Power Steering Pump Inlet Tube Bolt |
| 4 |
Power Steering Pump Inlet Tube |
| 5 |
Power Steering Pump Inlet Tube Seal |
| 6 |
Power Steering Pump Fitting |
| 7 |
Power Steering Pump Fitting Seal |
| 8 |
Power Steering Pump Flow Control Valve |
| 9 |
Power Steering Pump Flow Control Valve Spring |
| 10 |
Power Steering Pressure Switch |
| 11 |
Power Steering Pump Housing Bolt |
| 12 |
Power Steering Pump Housing Bolt |
| 13 |
Power Steering Pump Housing Bolt |
| 14 |
Power Steering Pump Housing Bolt |
| 15 |
Power Steering Pump Rear Housing |
| 16 |
Power Steering Pump Housing Seal |
| 17 |
Power Steering Pump Shaft Retainer Ring |
| 18 |
Power Steering Pump Vane |
| 19 |
Power Steering Pump Rotor |
| 20 |
Power Steering Pump Ring |
| 21 |
Power Steering Pump Plate |
| 22 |
Power Steering Pump Pressure Plate Seal |
| 23 |
Power Steering Pump Pressure Plate Seal |
| 24 |
Power Steering Pump Front Housing |
| 25 |
Power Steering Pump Shaft Seal |
