Home >> Pontiac >> 2005 >> Aztek AWD V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> HVAC System - Automatic >> HVAC Control Module
April 5, 2026: LEMON Manuals is launched! Read the announcement.

HVAC Control Module

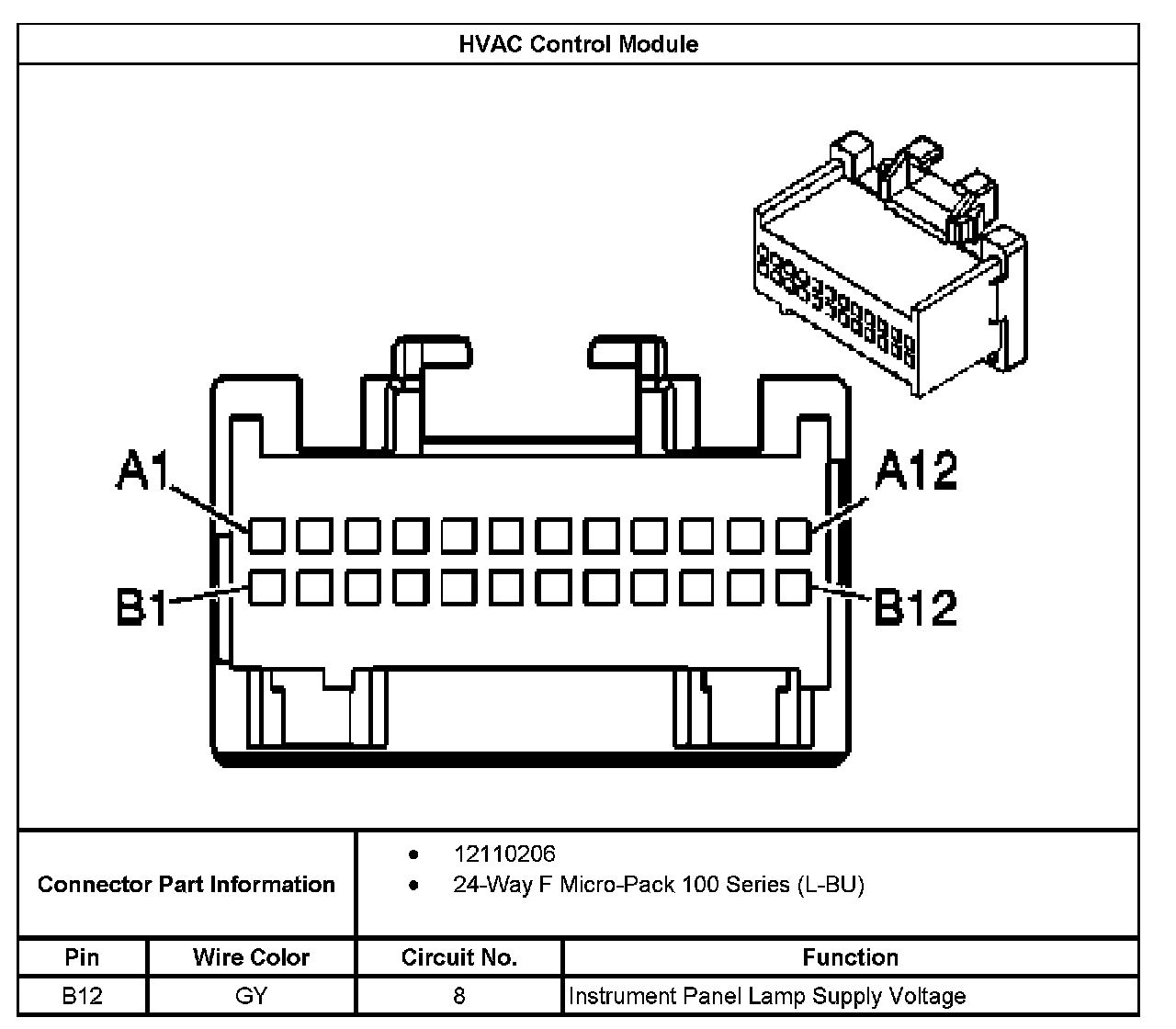

HVAC Control Module Part 1:

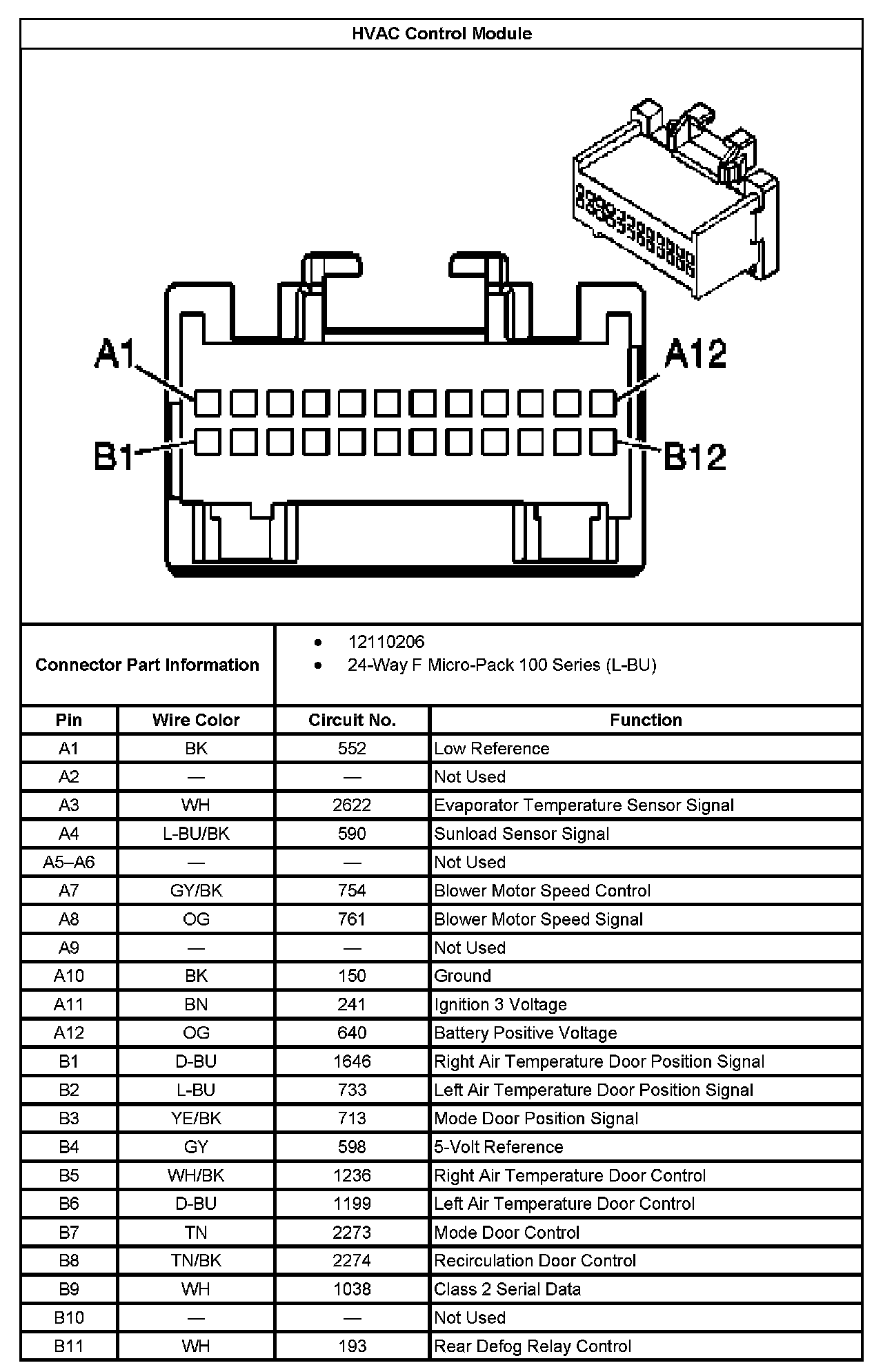

HVAC Control Module Part 2:
