Power Seat Control Module

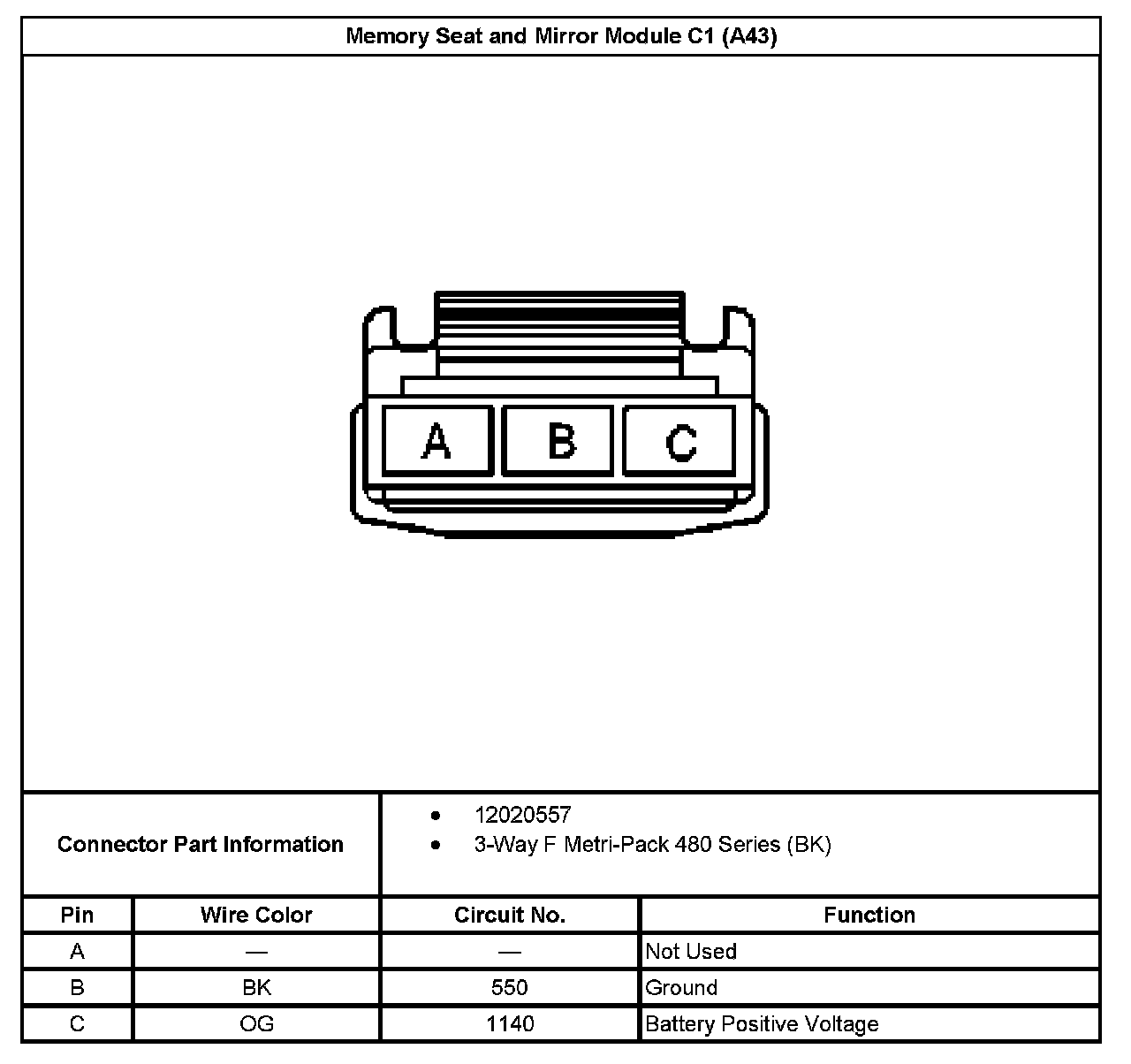

Memory Seat And Mirror Module C1 (With RPO Code A43):

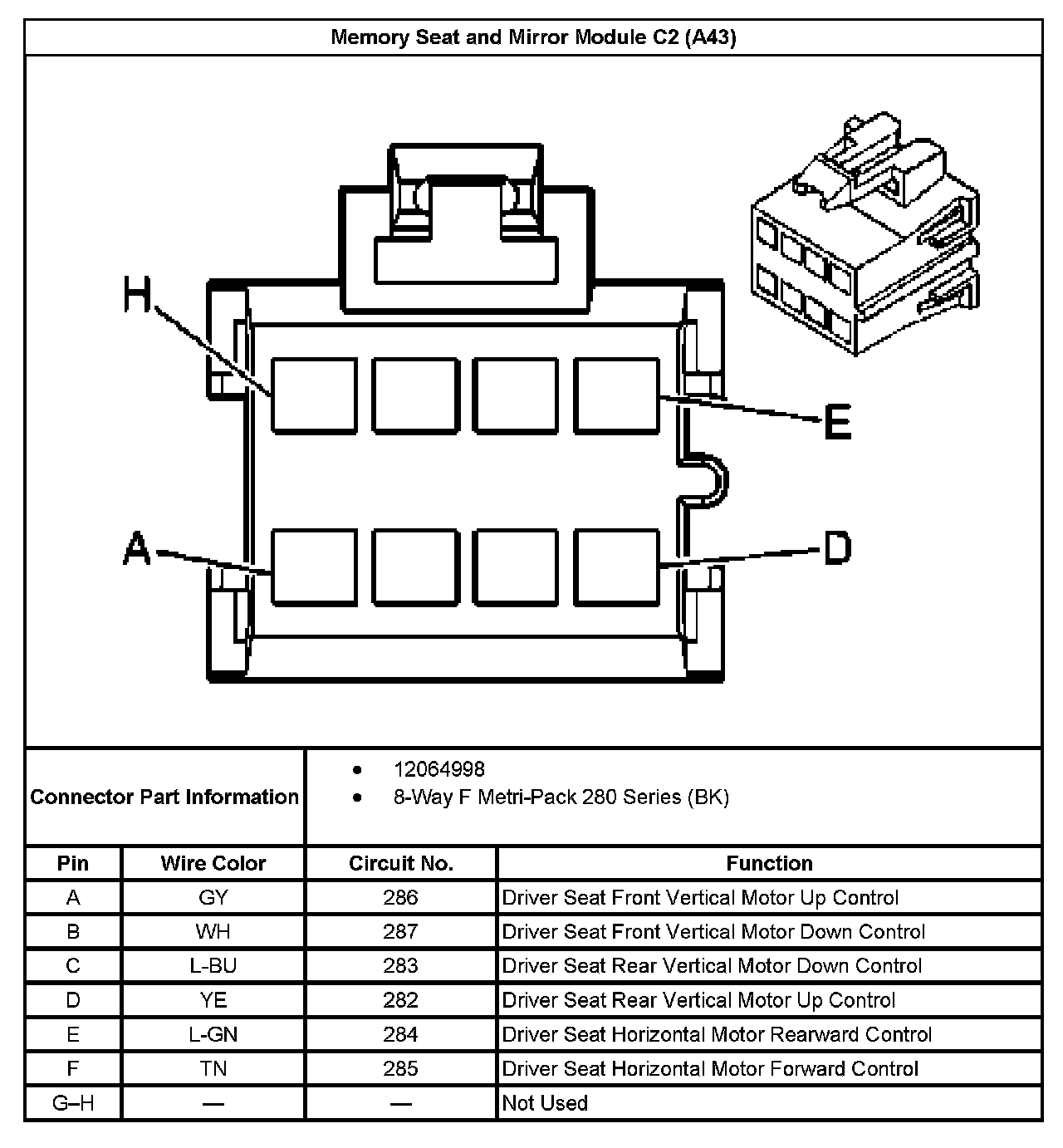

Memory Seat And Mirror Module C2 (With RPO Code A43):

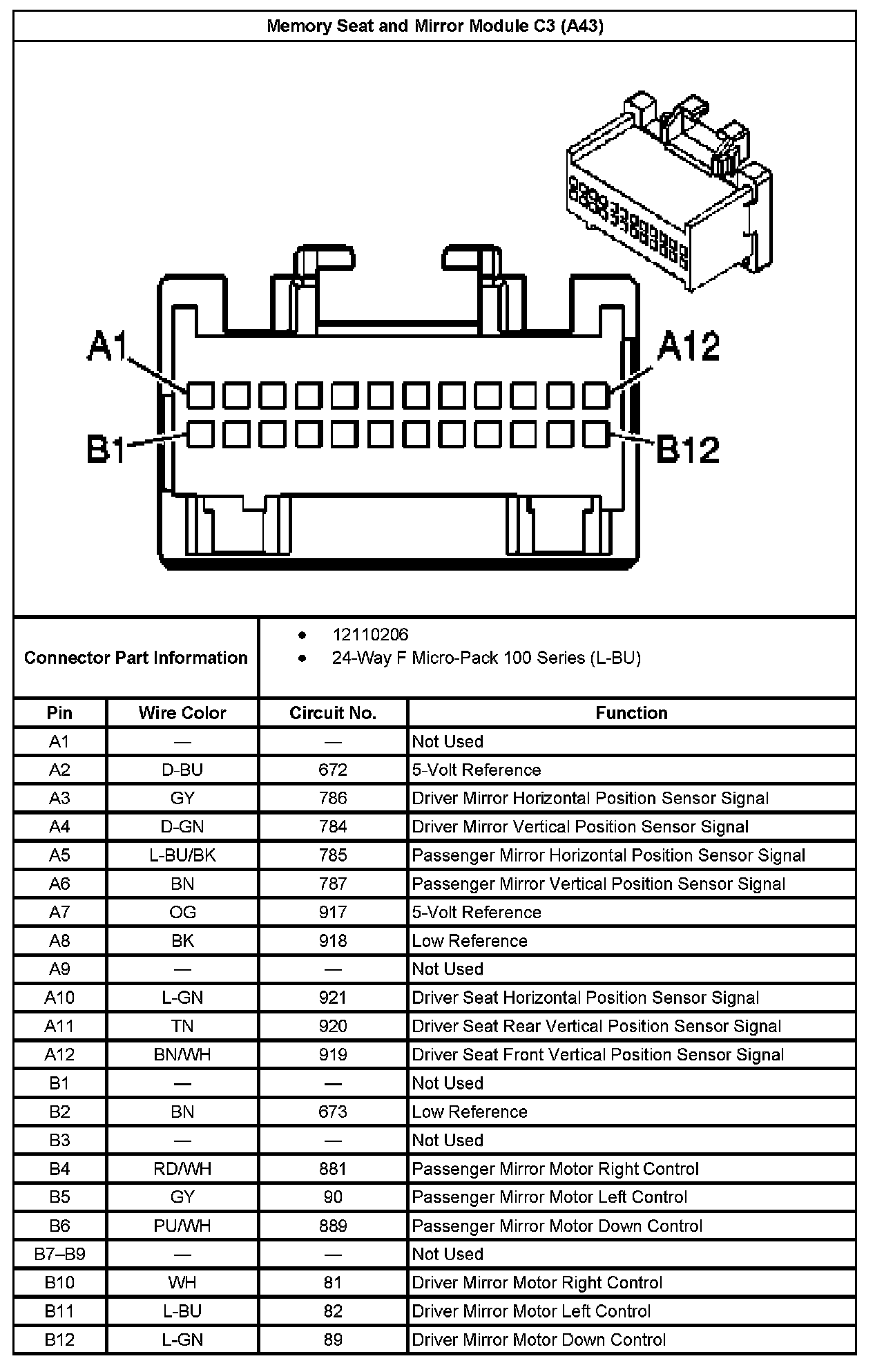

Memory Seat And Mirror Module C3 (With RPO Code A43):

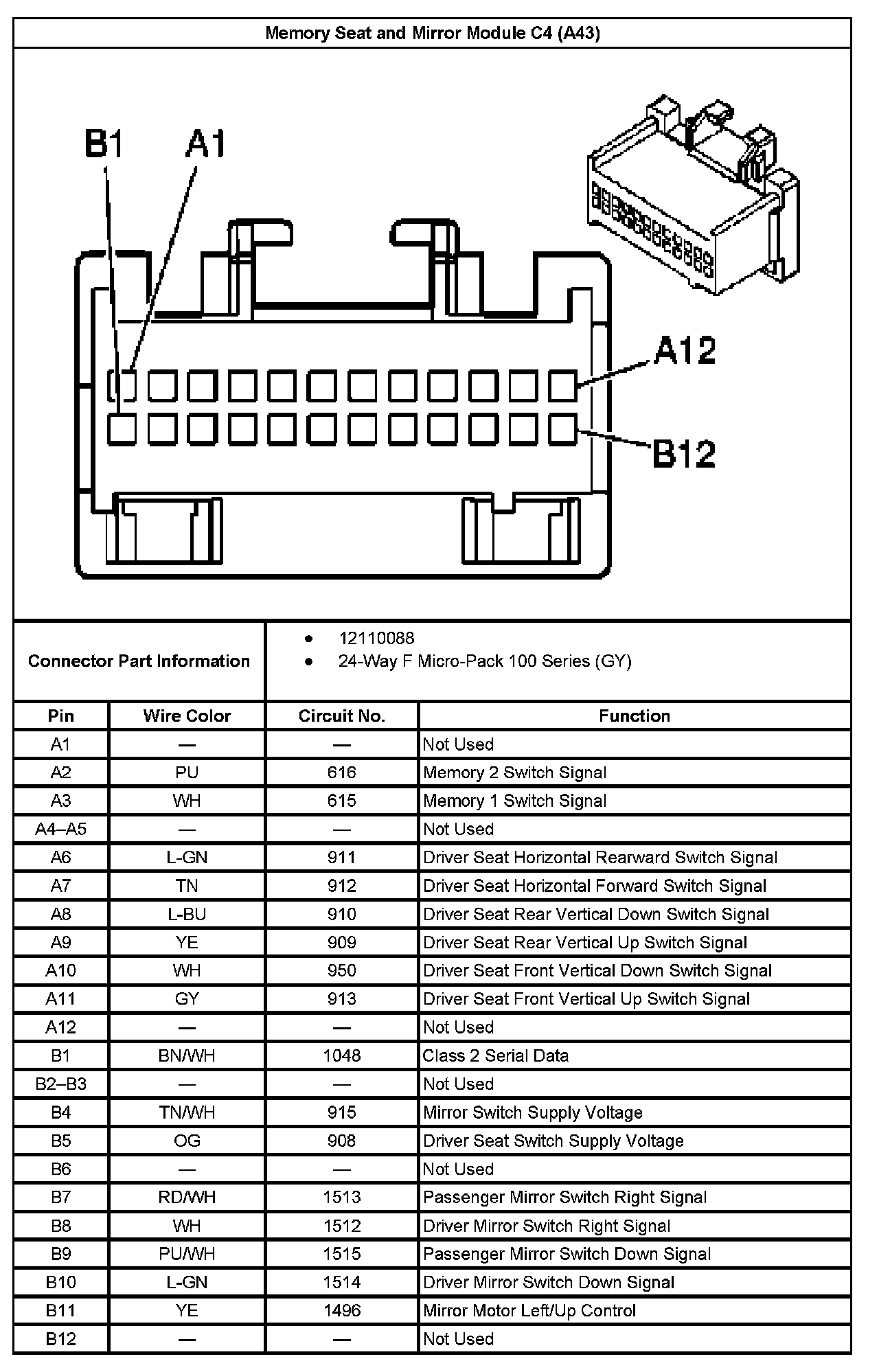

Memory Seat And Mirror Module C4 (With RPO Code A43):
