Solenoids & Solenoid Valves
SOLENOIDS & SOLENOID VALVES LOCATION
| Component | Location |
|---|---|
| Air Temperature Actuator (Left) | Left side of HVAC module. |
| Air Temperature Actuator (Right) | Right side of HVAC module. |
| A/T Shift Lock Control Solenoid (Buick) | Part of steering column. |
| A/T Shift Lock Control Solenoid (Pontiac) | Inside console, under transaxle shifter. |
| Automatic Level Control (ALC) Inflator Solenoid | Outside vehicle, under driver seat on compressor. |
| Brake Pressure Modulator Valve (BPMV) | Left side of engine compartment. See Figure. |
| Canister Vent Solenoid | In fuel tank assembly. See Figure. |
| Evaporative Emission Canister Vent Solenoid | Below center of vehicle, near fuel tank. |
| Evaporative Emission (EVAP) Canister Purge Solenoid | On top right rear of engine, near throttle body. See Figure. |
| Exhaust Gas Recirculation Valve | Top rear of engine, on intake manifold. See Figure. |
| Exhaust Solenoid | Under front of vehicle chassis. See Figure. |

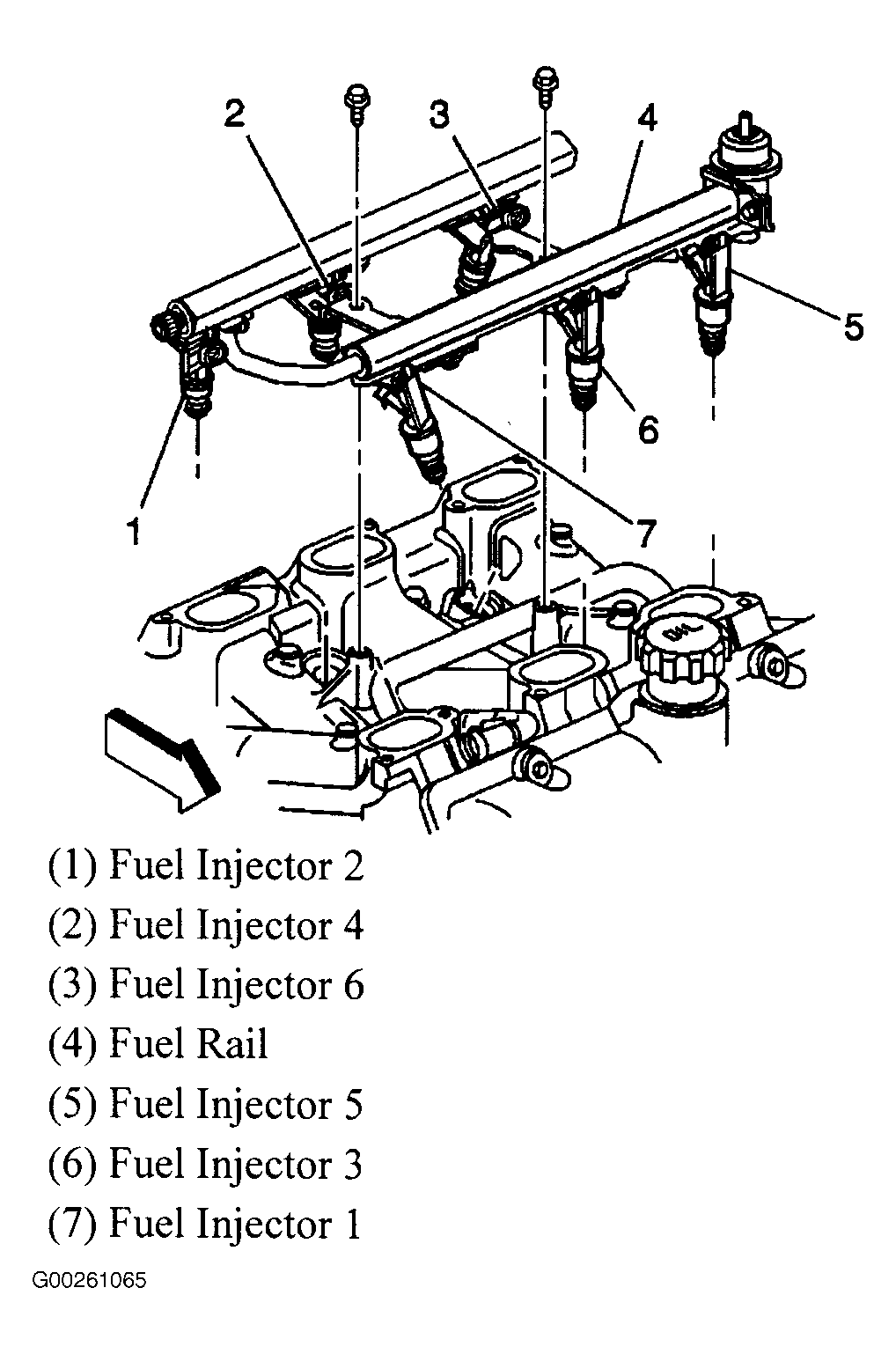

| Fuel Injector 1 | On intake manifold. See Figure. |
| Fuel Injector 2 | On intake manifold. See Figure. |
| Fuel Injector 3 | On intake manifold. See Figure. |
| Fuel Injector 4 | On intake manifold. See Figure. |
| Fuel Injector 5 | On intake manifold. See Figure. |
| Fuel Injector 6 | On intake manifold. See Figure. |
| Ignition Key Solenoid | Part of steering column. |
| Inflator Solenoid | Under front of vehicle chassis. See Figure. |

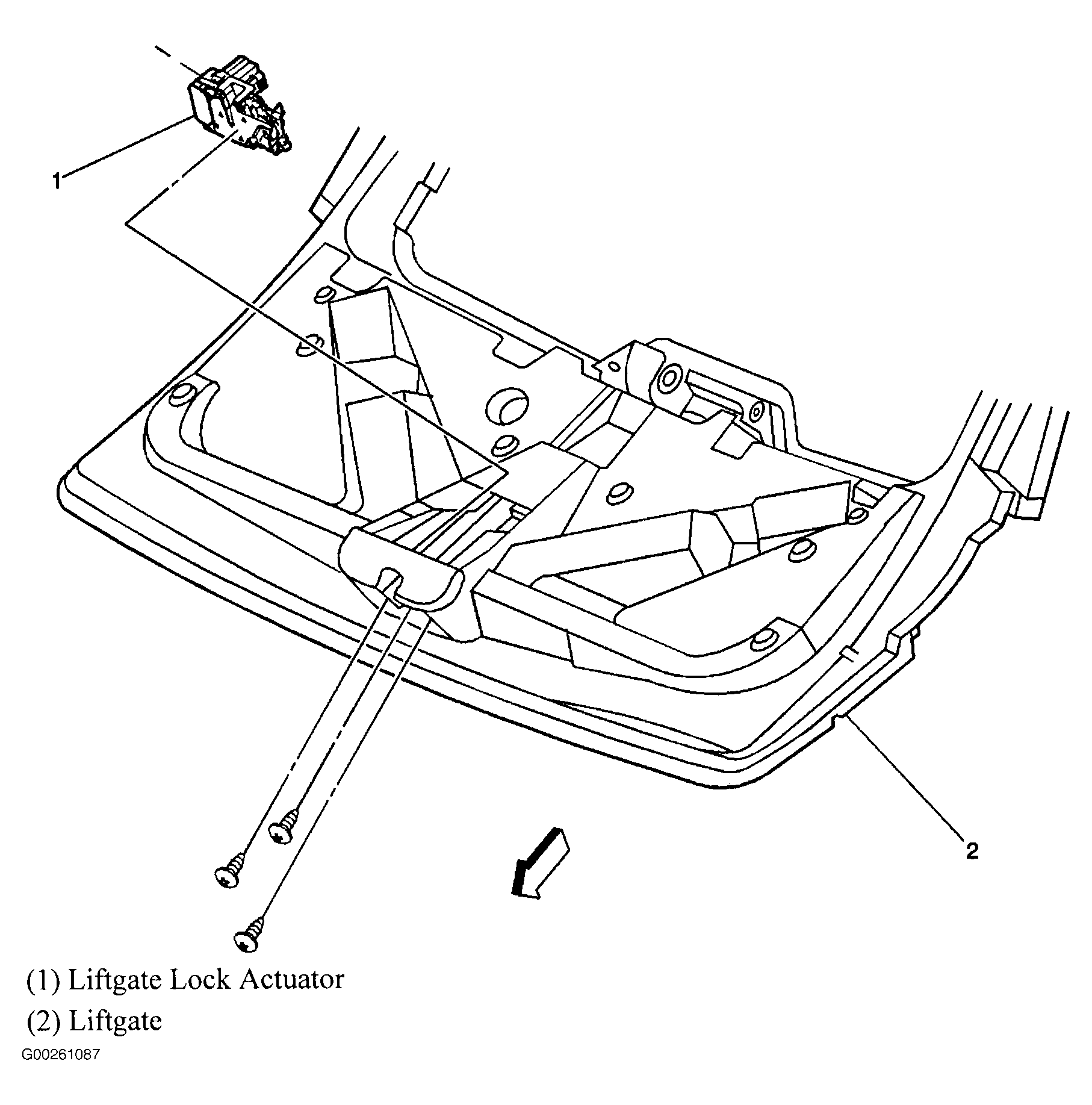

| Liftgate Lock Actuator | In tailgate. See Figure. |
| Liftgate Release Actuator (Left) | Mounted on top left side of endgate. |
| Liftgate Release Actuator (Right) | Mounted on top right side of endgate. |
| Recirculation Actuator | In dash, behind glove box, on cowling. |
| Secondary Air Injection Solenoid | Lower right side of engine. |
| Secondary Air Injection Vacuum Control Solenoid Valve | On right rear side of engine. |
| Starter Solenoid | Lower left of engine, integral to starter motor assembly. See Figure. |
| Torque Converter Clutch Solenoid Valve | Inside automatic transaxle. |
| 1-2 Shift Solenoid (1-2 SS) Valve | Inside automatic transaxle. |
| 2-3 Shift Solenoid (2-3 SS) Valve | Inside automatic transaxle. |
