Wiper/Washer System Component Views

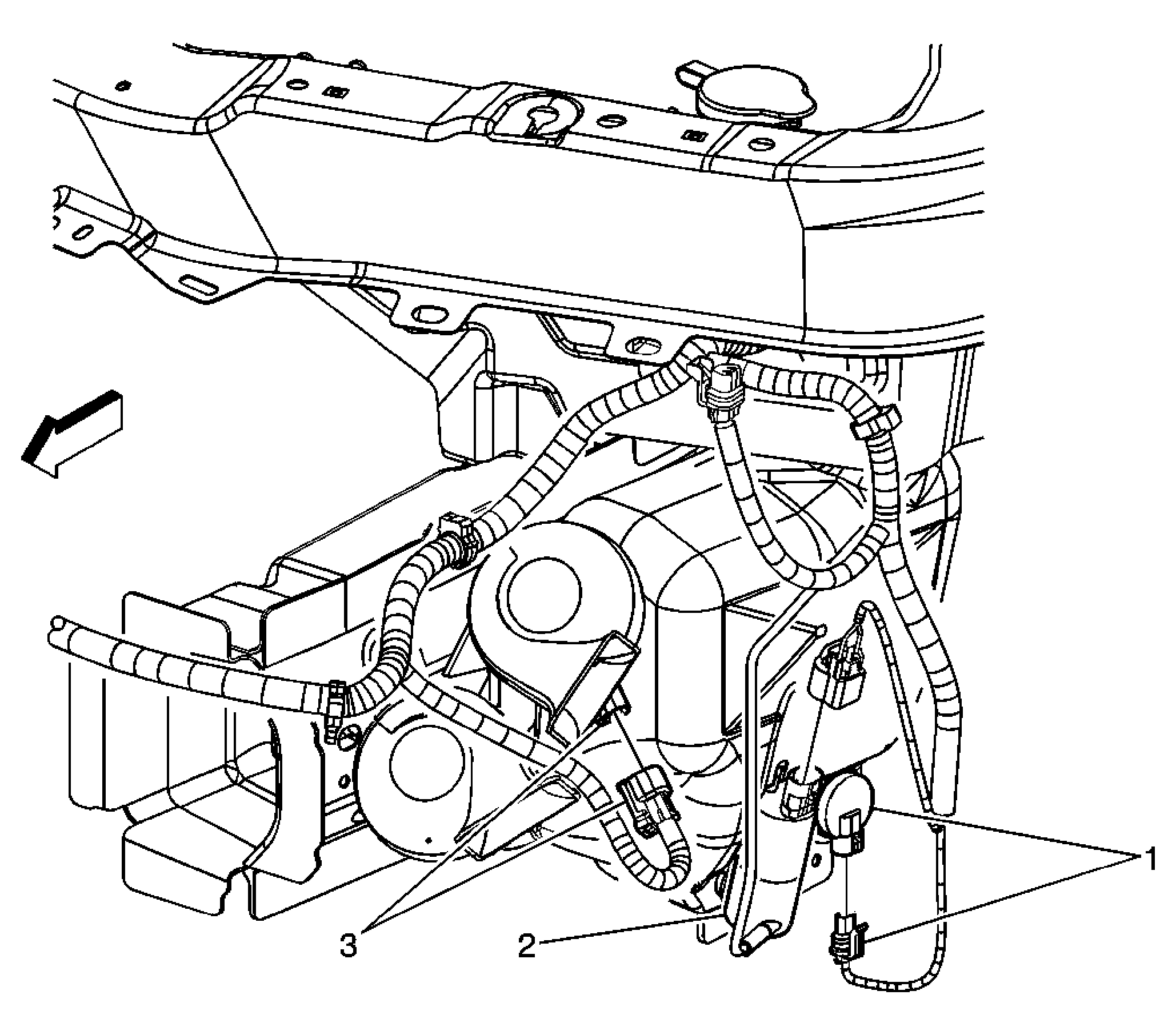

Fig 1: Left Front Fender Well
GM1266735Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Washer Fluid Level Switch
2 Windshield Washer Fluid Pump
3 Horn Assembly

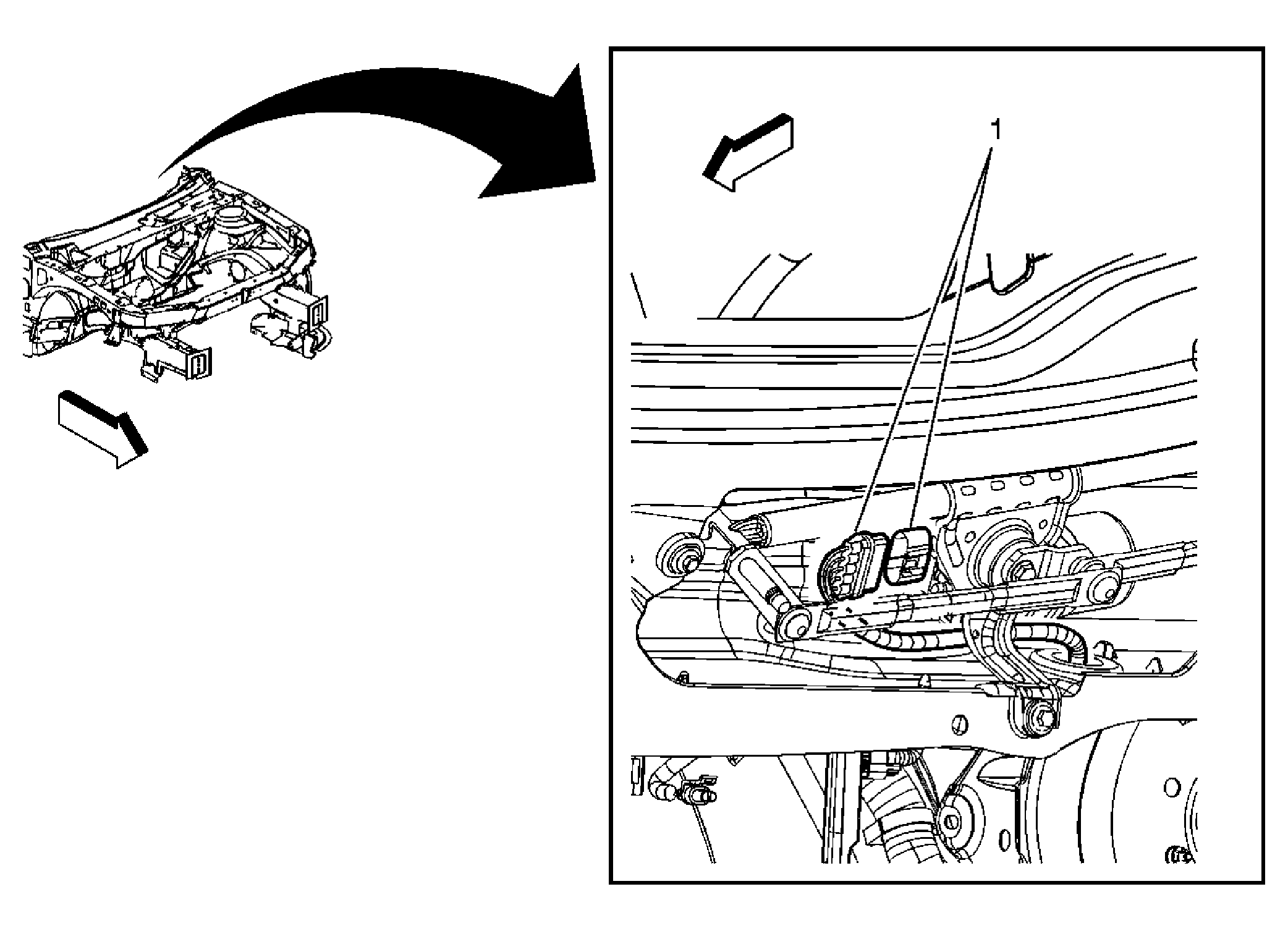

Fig 2: Under Cowl Panel Component View
GM1266754Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor Assembly
Fig 3: Instrument Panel
GM1506738Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Steering Wheel Controls - Left
3 Instrument Panel Cluster (IPC)
4 Steering Wheel Controls - Right
5 Windshield Wiper/Washer Switch
6 Ignition Switch
7 Ambient Light Sensor
8 Hazard Switch
9 Radio
10 Inflatable Restraint I/P Module
11 Rear Window Defogger Switch
12 Traction Control Switch (NW7/NW9)
13 Cigar Lighter
14 A/C Request Switch
15 HVAC Control Module
16 Inflatable Restraint Steering Wheel Module
17 Fog Lamp Switch
18 I/P Dimmer Switch
19 Adjustable Pedals Position Switch
