Indicator Replacement - Inflatable Restraint IP Module

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

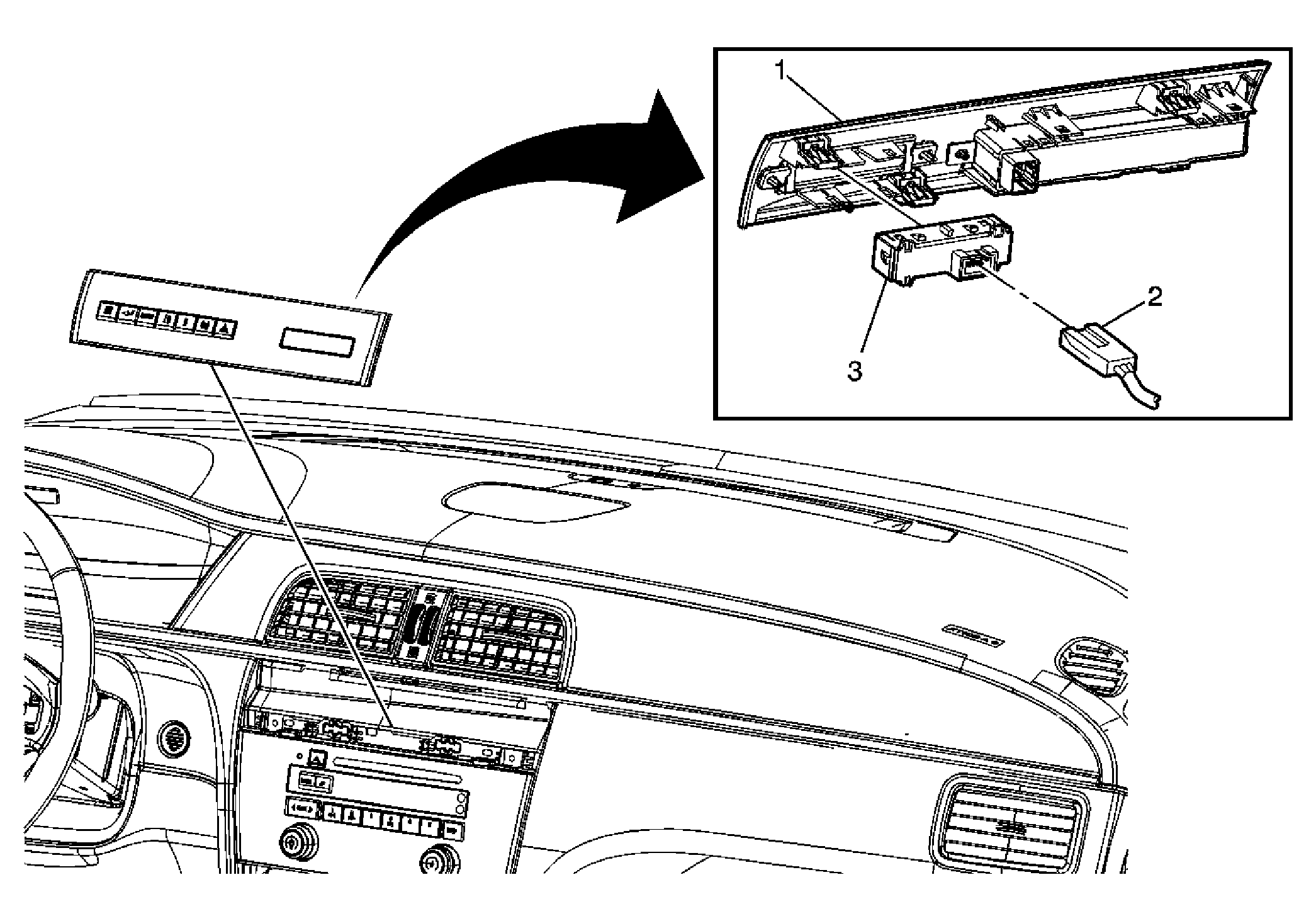

Fig 1: View Of Inflatable Restraint IP Module Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Panel, Inflatable Restraint Instrument Panel (I/P) Module
2	Connector, Electrical Inflatable Restraint Module
3	Module, Indicator Inflatable Restraint I/P Tip: Use a small flat-bladed screwdriver to lease the locking tabs on the module.
