Inflatable Restraint Instrument Panel Module Replacement

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

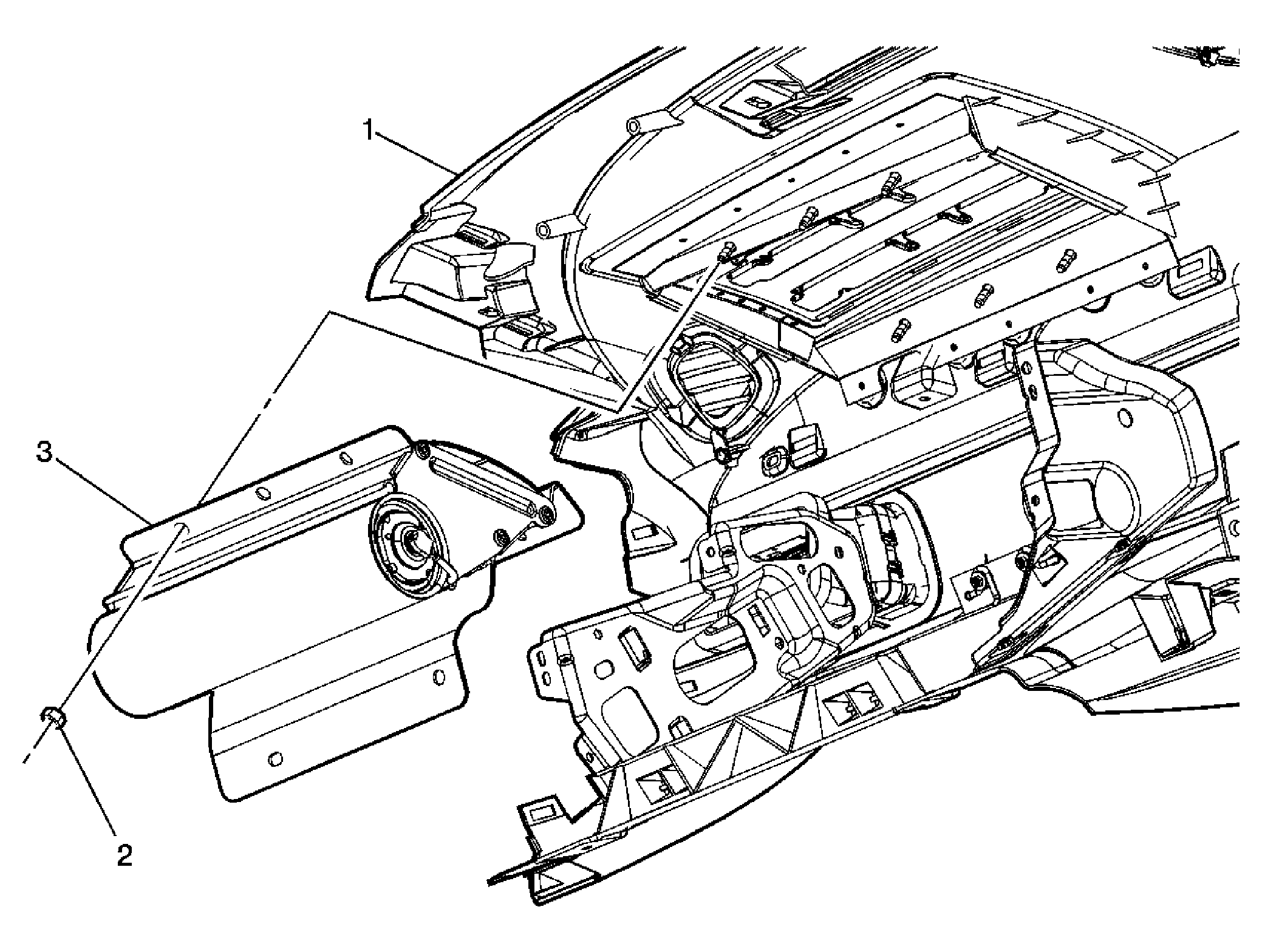

Fig 1: Identifying Inflatable Restraint Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disable the supplemental inflatable (SIR) system. Refer to SIR Disabling and Enabling Zone 5 . Remove the instrument panel trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) .
1	Instrument Panel Trim Pad
2	Nut, Mounting Inflatable Restraint Module (Qty: 6) Tighten: 15 N.m (11 lb ft)
3	Module, Inflatable Restraint Tip: If the air bag had a DTC and must be returned for warranty, refer to Inflator Module Handling and Scrapping .
