Installation Procedure

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove any dirt, grease or other impurities from the mounting surface.

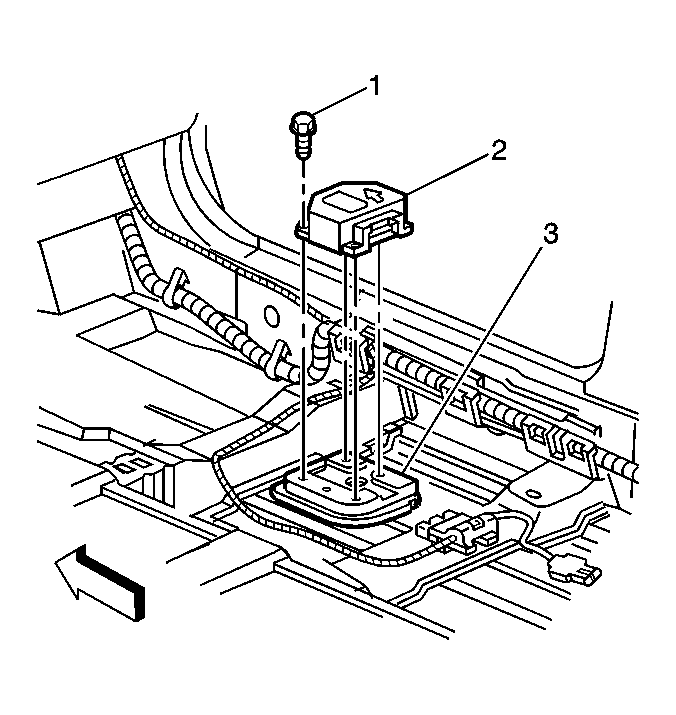

    2. Fig 1: View Of SDM
    GM238075Courtesy of GENERAL MOTORS CORP.
  2. Install the SDM (2) horizontally to the vehicle (3).
  3. Point the arrow on the SDM toward the front of the vehicle.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the SDM mounting fasteners (1).

    Tighten:  Tighten the fasteners to 10 N.m (89 lb in).

    5. Fig 2: View Of Connector At SDM
    GM217475Courtesy of GENERAL MOTORS CORP.
  5. Connect the connector to the SDM.
    6. Fig 3: View Of Connector Position Assurance
    GM217474Courtesy of GENERAL MOTORS CORP.
  6. Install the CPA to the SDM connector.
  7. Position the carpet to cover the SDM.
  8. Reposition the front and rear door weatherstrips as required.
  9. Install the center pillar, lower trim panel. Refer to Trim Panel Replacement - Lower Center Pillar in Interior Trim.
  10. Install the right insulator panel. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.
  11. Install the passenger front seat. Refer to Seat Replacement - Front Bucket in Seats.
  12. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 9 .
  13. If you replaced the SDM, perform the following procedure in order to update the BCM with the new SDM part number:
      IMPORTANT: The AIR BAG indicator may remain ON after the SDM is replaced. After programming the SDM part number into the BCM, cycle the ignition switch OFF and ON. This turns OFF the AIR BAG indicator and clears the DTC.
    1. Install a scan tool.
    2. Select the Special Functions option from the BCM Menu and press enter.
    3. Select the BCM Reprogramming in BCM option and press enter.
    4. Follow the procedure on the scan tool display.
    5. Cycle the ignition switch OFF and ON.
